52 24 400 Replacing seat cover for rear seat

WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to SEATS - SPECIAL TOOLS - 645CI (E63) .

52 0 050

Necessary preliminary tasks:

Remove rear seat, refer to 52 24 005 REMOVING AND INSTALLING OR REPLACING REAR SEAT .

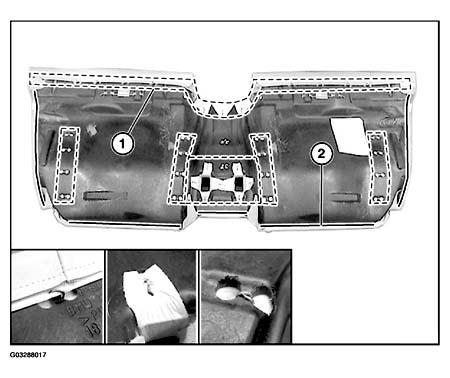

Detach retainers in areas (1).

Lever out piping in areas (2) with special tool 64 1 020.

Fig 1: Detaching Retainers And Piping From Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.

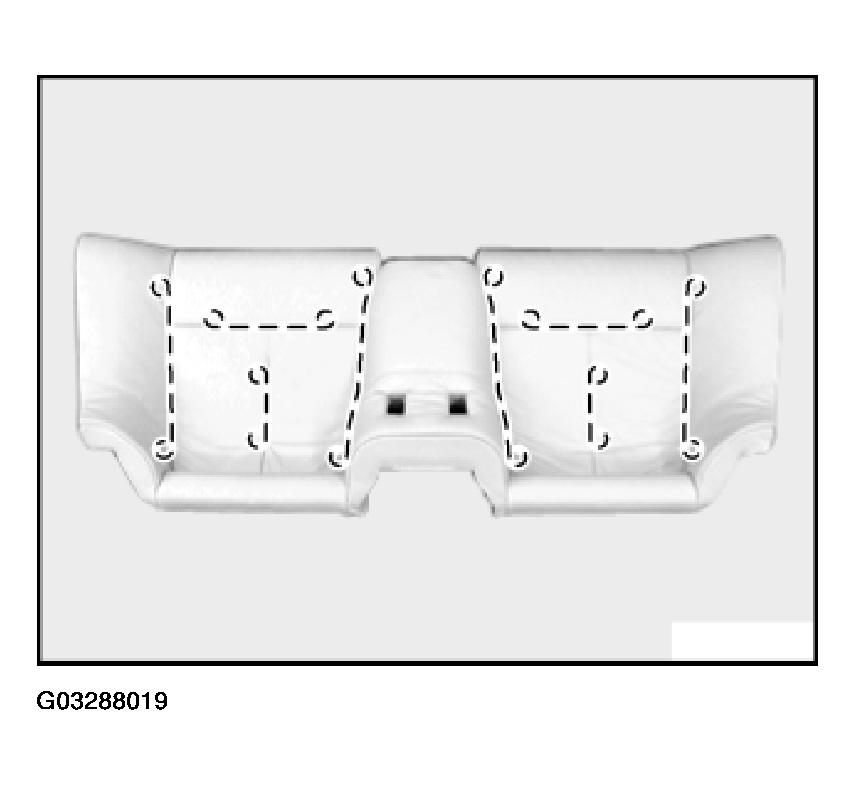

Detaching cover and padding:

Release all retainers in marked area.
Remove seat cover from padding.
Remove remaining retainers from cover and padding

Fig 2: Detaching Cover And Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert new retainers with special tool 52 0 050.

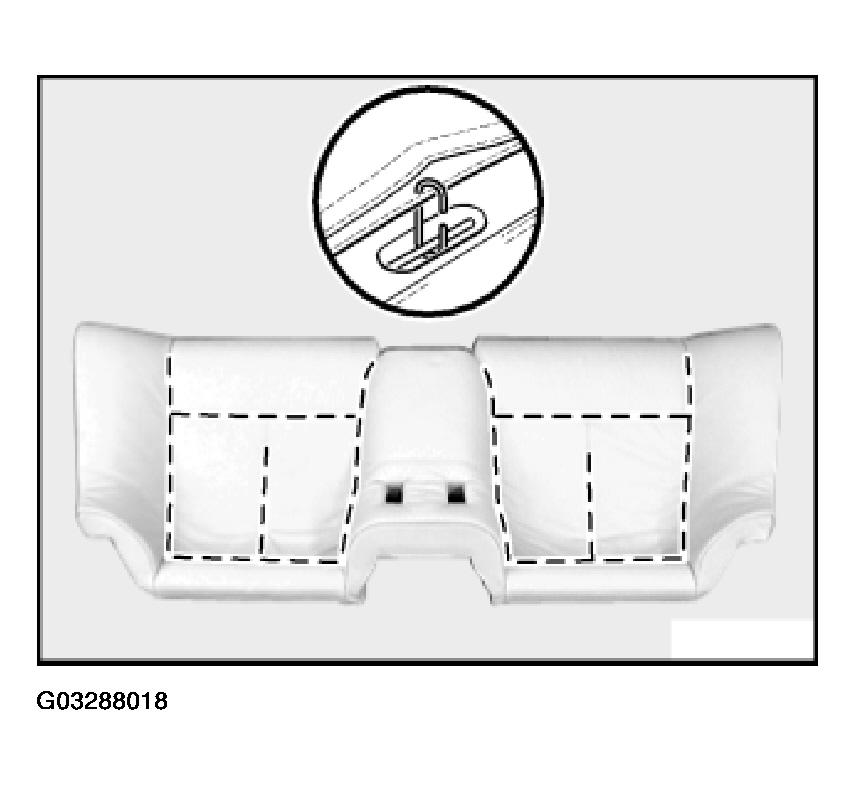

Replacing cover:

Pull all trim wires out of seat cover
If necessary, cut in take-up for trim wires of new cover
Push trim wires into new seat cover

Fig 3: Replacing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

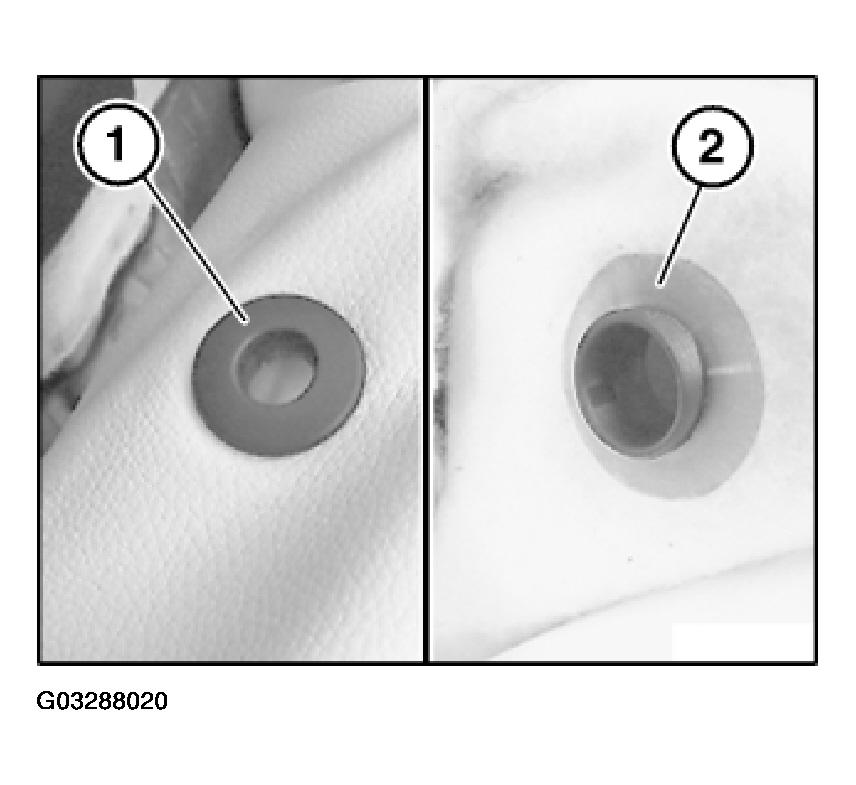

If necessary, replace head restraint guide (1).

Lever out detent ring (2) with plastic wedge.

Fig 4: Identifying Head Restraint Guide And Detent Ring

Courtesy of BMW OF NORTH AMERICA, INC.
