52 24 030 Removing and installing complete armrest for rear seat backrest

WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Press lock (1) and remove filler element (2).

Installation:

Make sure filler element is correctly inserted in backrest.

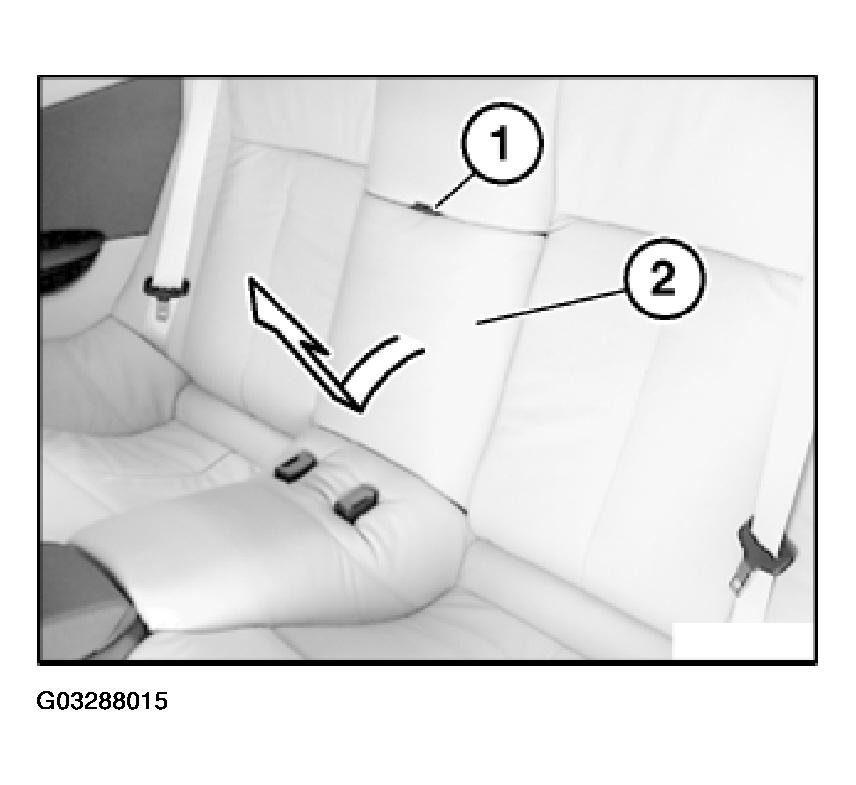

Fig 1: Removing And Installing Complete Armrest For Rear Seat Backrest

Courtesy of BMW OF NORTH AMERICA, INC.
