52 16 405 Replacing backrest cover on front left or right seat (sports/electric)

WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to SEATS - SPECIAL TOOLS - 645CI (E63) .

52 0 050

Except for steps detailed below, operation is identical to:

Replacing backrest cover for left or right front seat (normal/electric).

Additional retainers in side sections:

Release clips (1).

Fold back piping (2) with backrest cover (3).

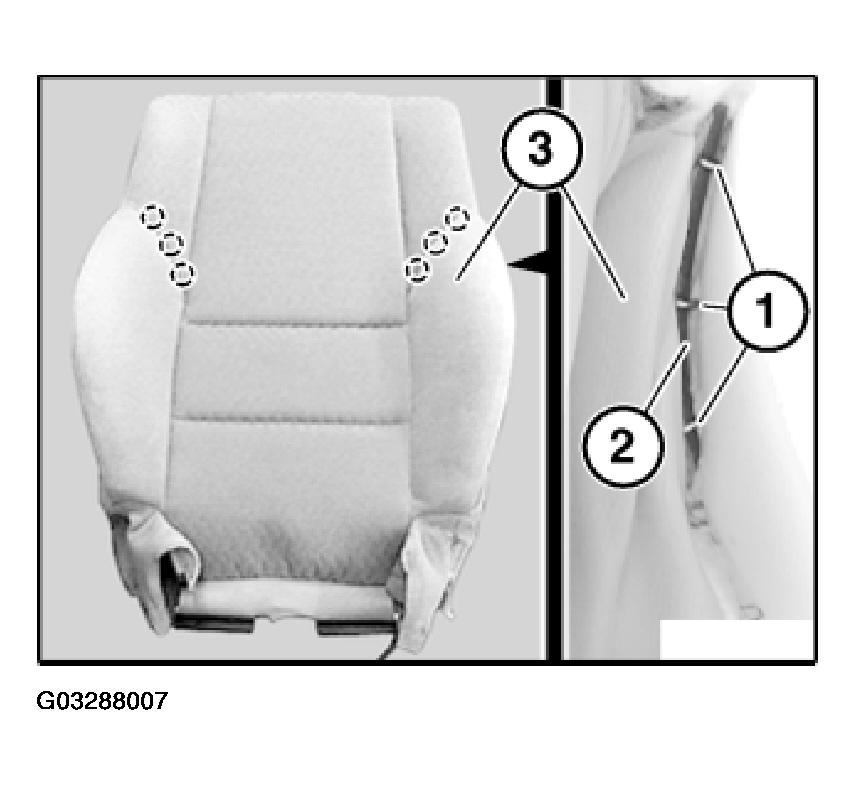

Fig 1: Folding Back Piping With Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detach all remaining clips.

Remove backrest cover (1) from support.

NOTE: Remove all remnants of clips from backrest cover (1) and support.

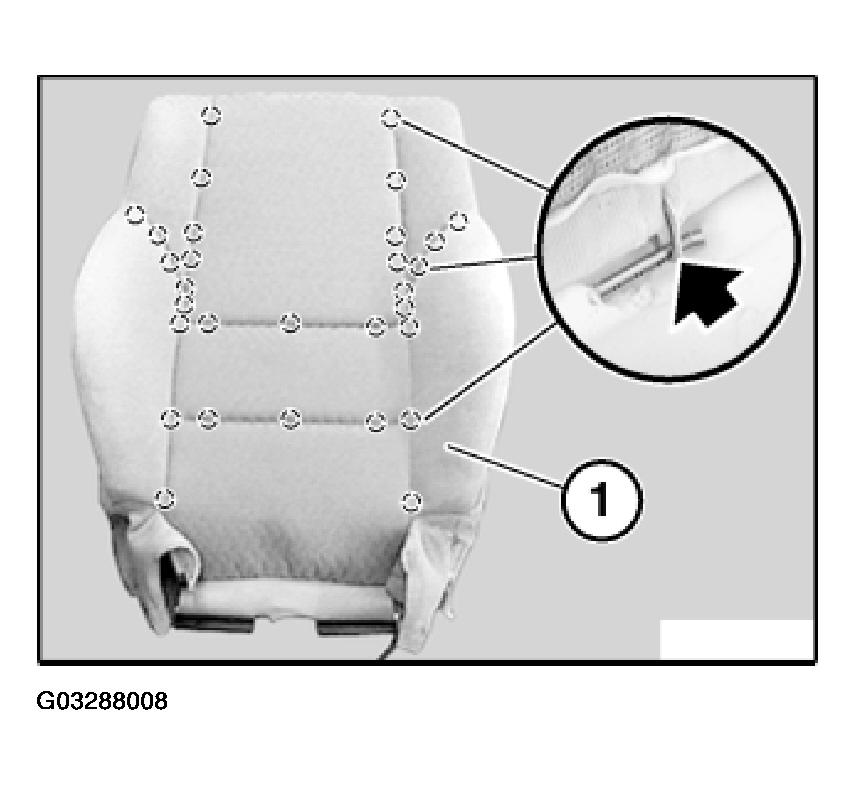

Fig 2: Removing All Remnants Of Clips From Backrest Cover And Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bend new retainer (2) with special tool 52 0 050.

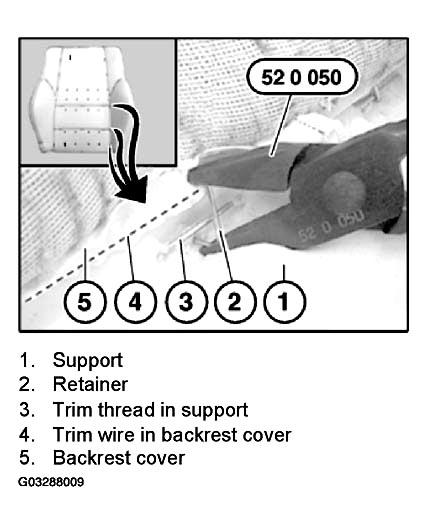

Fig 3: Bending Retainer With Special Tool 52 0 050
Courtesy of BMW OF NORTH AMERICA, INC.
