52 16 025 Removing and installing/replacing left or right seat mechanism (on sport/electric front seat)

WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Remove seat pan and flexmat on front seat, refer to 52 16 ... REMOVING AND INSTALLING/REPLACING SEAT PAN AND FLEX MAT ON FRONT LEFT OR RIGHT SEAT (SPORTS/ELECTRIC) .

Remove backrest frame on front seat.

Remove seatbelt tensioner.

Disconnect all plug connections (1) from actuator drives.

Remove seat wiring harness from seat mechanism (2).

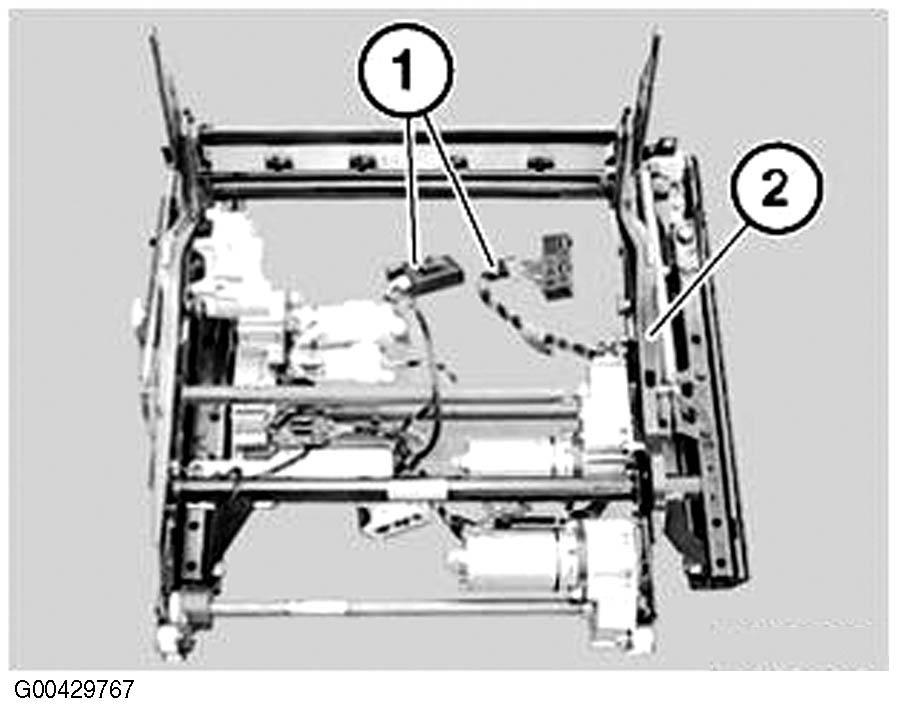

Fig 1: Identifying Plug Connections (1) And Seat Mechanism (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check:

Connect cable 61 2 071 to battery, connect cable 61 2 074 to cable 61 2 071 and plug connection (1) to front seat.

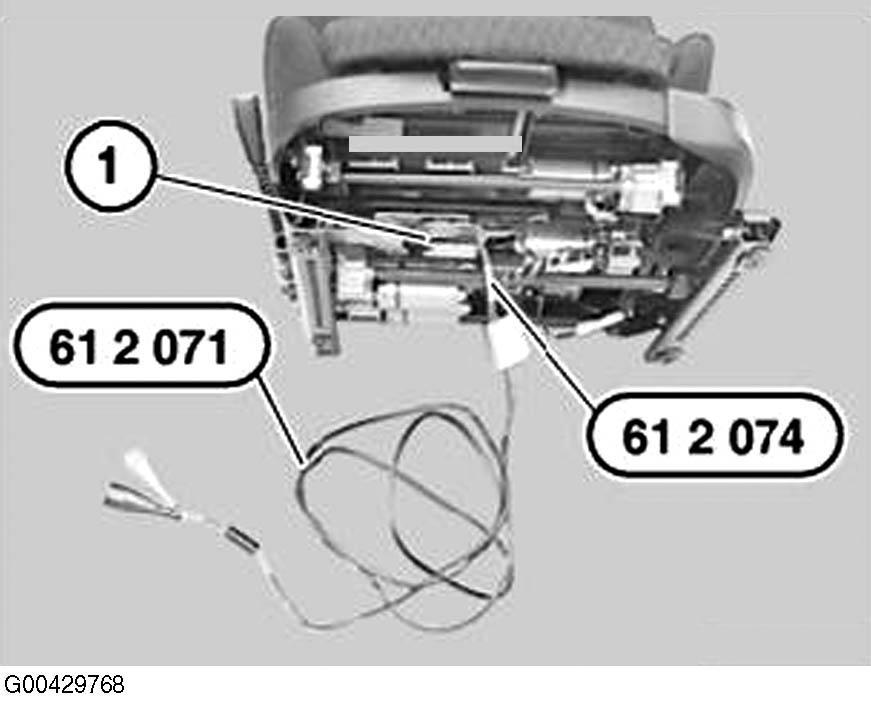

Fig 2: Connecting Cable 61 2 074 To Cable 61 2 071 And Plugging Connection (1) To Front Seat

Courtesy of BMW OF NORTH AMERICA, INC.
