52 16 ... Removing and installing/replacing carrier for outer cover on left or right front seat (sports/electric)

WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Remove outer front cover.

Release screws, remove lower section.

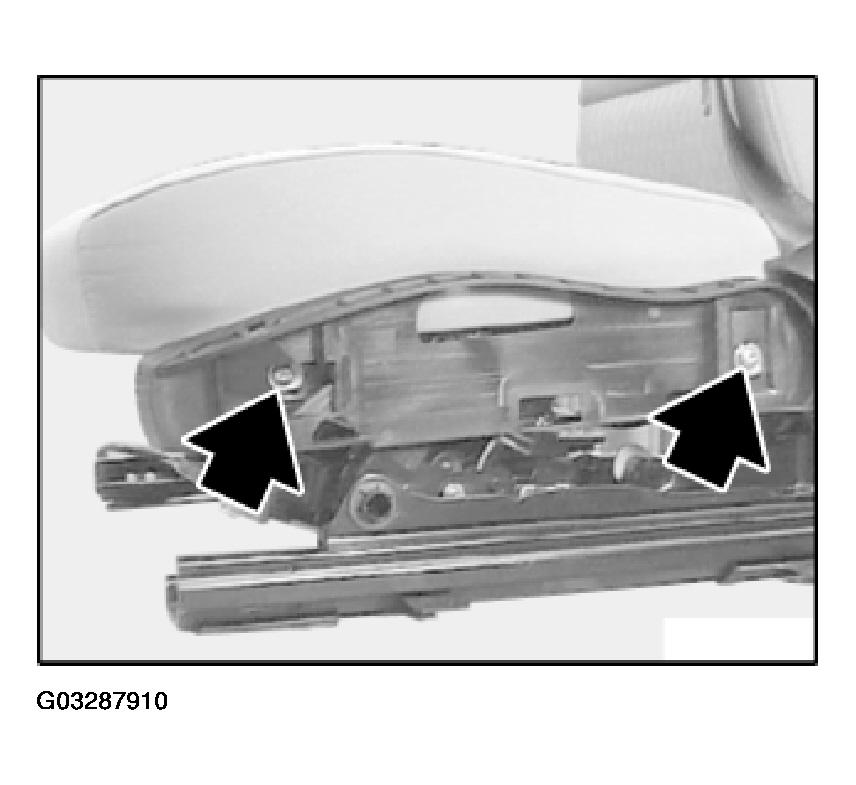

Fig 1: Removing And Installing/Replacing Carrier For Outer Cover On Left Or Right Front Seat (Sports/Electric)
G03287910Courtesy of BMW OF NORTH AMERICA, INC.
