52 14 025 Removing and installing/replacing seat mechanism on left or right front seat (normal/electric)

WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to SEATS - SPECIAL TOOLS - 645CI (E63) .

61 2 071
61 2 074

Carry out following tasks beforehand:

Remove seat pan and flexmat on front seat, refer to 52 13 ... REMOVING AND INSTALLING/REPLACING SEAT PAN AND FLEXMAT (NORMAL/MANUAL), LEFT OR RIGHT .
Remove backrest frame on front seat.
Remove seat belt tensioner.

Release screw (1) and cable holder (3).

Remove retaining bracket (2) with seat wiring harness from seat mechanism (4).

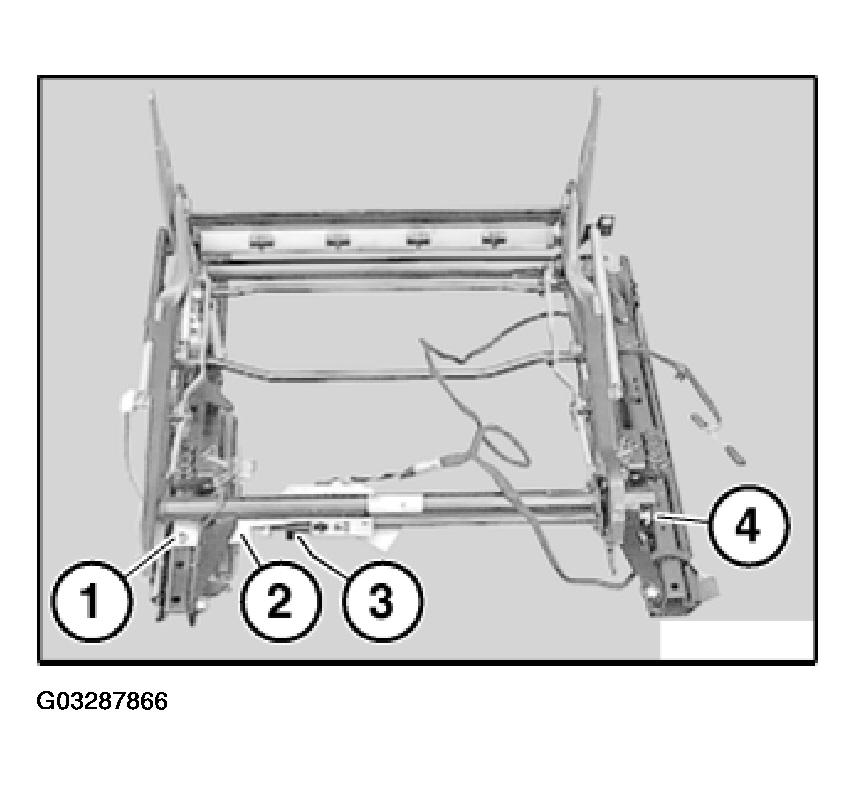

Fig 1: Removing Retaining Bracket With Seat Wiring Harness From Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Attach cable 61 2 074 to cable 61 2 071 and connect plug connection (1) to front seat.

Connect cable 61 2 071 to battery.

Check function.

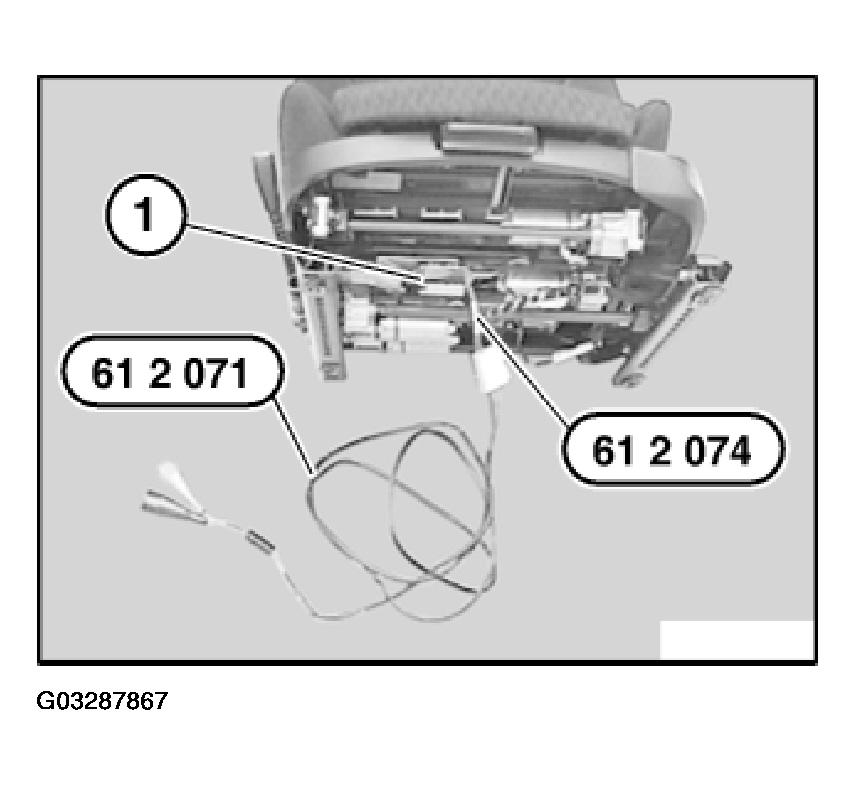

Fig 2: Attaching Cable 61 2 074 To Cable 61 2 071 And Connecting Plug Connection To Front Seat

Courtesy of BMW OF NORTH AMERICA, INC.
