11 65 010 Removing and Installing/Replacing Vacuum Reservoir (N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove Both Exhaust Turbochargers. See RIGHT TURBO (CYLINDERS 1-4) and LEFT TURBO (CYLINDERS 5-8) .
Remove Both Exhaust Manifolds. See LEFT EXHAUST MANIFOLD and RIGHT EXHAUST MANIFOLD .
Remove HEAT SHIELD AT BOTTOM .

Release Vacuum Line (3).

Release Screws (1).

Tightening torque: 11 65 10AZ .

Remove Vacuum Reservoir (2).

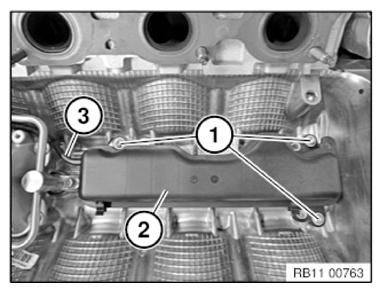

Fig 1: Identifying Vacuum Reservoir, Vacuum Line and Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.

Check Vacuum Connections.

Observe BMW Diagnosis Instructions.
