11 34 560 Replacing All Valve Stem Seals (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

11 1 480 .
11 6 380 .

Necessary Preliminary Tasks:

Remove CYLINDER HEAD .
Remove INTERMEDIATE LEVER .
Remove ECCENTRIC SHAFT .
Remove INTAKE CAMSHAFT .
Remove EXHAUST CAMSHAFT .
Remove ROCKER ARMS .

Firmly Press Special Tool 11 1 480 Onto Old Valve Stem Seals.

Detach Valve Stem Seal From Valve Stem By Turning and Simultaneously Pulling Special Tool 11 1 480 .

Installation:

Insert All VALVES .

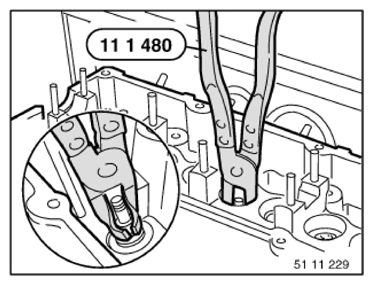

Fig 1: Pressing Special Tool 11 1 480 Onto Old Valve Stem Seals

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: for Use On The N55 Engine, Special Tool 11 6 380 Must Be Re-Machined According To The Picture with A 10 Mm Dia. Drill Bit To A Depth of B = Approx. 23 Mm.

This Modification Has Already Been Taken Into Account for Reordering.

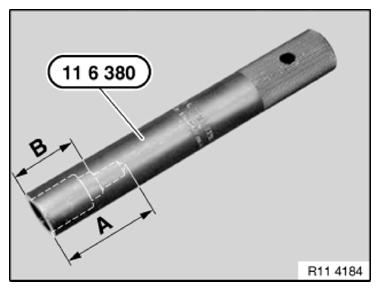

Fig 2: Identifying Re-Machining Dimensions for Special Tool 11 6 380

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Different Diameters At Valve Stem.
All Valve Stem Seals Are Color-Coded.

for 5 Mm Dia. Valves, The Valve Stem Seal Is Marked Red or Brown.

for 6 Mm Dia. Valves, The Valve Stem Seal Is Marked Green.

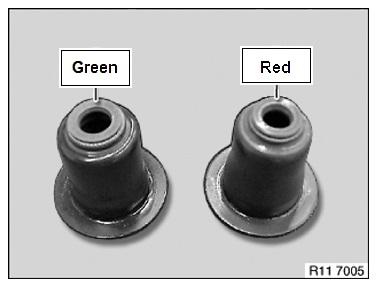

Fig 3: Identifying 5Mm and 6Mm Valve Stem Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit The Assembly Sleeves (Plastic Sleeves) Contained In The Delivery Specification On The Valve Stem End.

Lubricate Assembly Sleeve.

Press On Valve Stem Seal By Hand with Special Tool 11 6 380 As Far As It Will Go.

NOTE: Graphic Shows Engine N42.

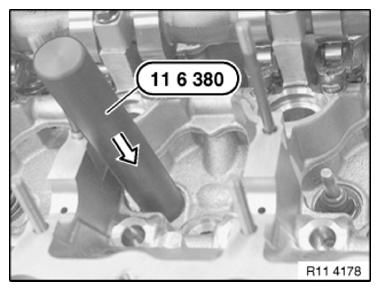

Fig 4: Pressing On Valve Stem Seal Using Special Tool 11 6 380

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble Engine.
