11 31 071 Checking Camshaft Timing On Right Side (N63O1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

IMPORTANT: The Timing Can Only Be Checked with Special Tool 2 249 162 .
The Timing May Be Misinterpreted If It Is Checked Without Special Tool 2 249 162 .

Cylinders 1-4

Necessary Preliminary Tasks:

Remove Right CYLINDER HEAD COVER .
Remove BELT PULLEY for Air Conditioning System
Remove Right CHAIN TENSIONER .

Mount Special Tool 2 249 162 At Position of Chain Tensioner.

Pretension Screw (1) To 0.6 Nm .

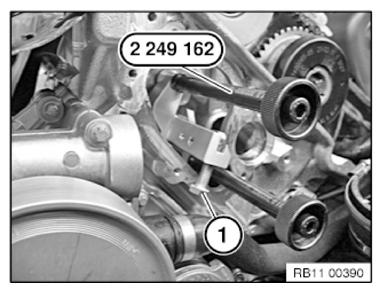

Fig 1: Mounting Special Tool 2 249 162 At Position of Chain Tensioner and Pre-Tensioning Screw To 0.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Pretension Special Tool 2 249 162 with Special Tool 00 9 250 or 00 9 460 To 0.6 Nm .

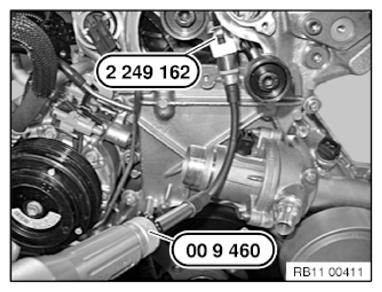

Fig 2: Pre-Tensioning Special Tool 2 249 162 To 0.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Marking (MP = Mounting Position) Is Important for Installing Special Tool 11 8 570 .

MP = 150° Before Cylinder No. 1 Firing TDC Position.

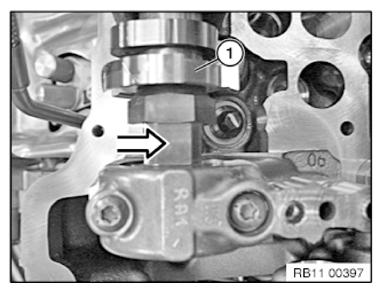

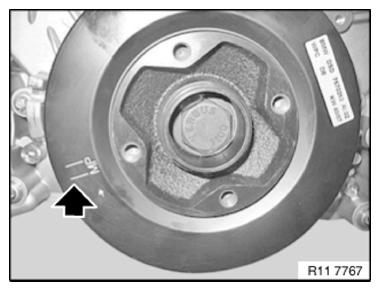

Fig 3: Locating Marking for Mounting Position (MP)

Courtesy of BMW OF NORTH AMERICA, INC.

Crank Engine At Central Bolt.

Secure Vibration Damper with Special Tools 11 8 570 and 11 9 190 At 150° Before Cylinder No. 1 Firing TDC Position.

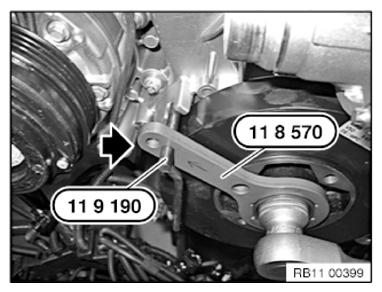

Fig 4: Turning Engine At Central Bolt and Positioning Special Tool 11 9 190 In Gear Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When The Engine Is Stopped, The Intake and Exhaust Camshaft Adjusters Are Normally Locked In Their Initial Setting.
The Situation May Arise In Some Individual Cases Where This Initial Setting Is Not Reached and The Camshaft Can Continue To Be Rotated In The Adjustment Range of The Camshaft Adjuster.
In Order To Avoid Incorrect Timing Adjustment, It Is Essential To Check The Locking of The Camshaft Adjuster and If Necessary Perform Locking By Rotating The Camshafts.

Check Locking of Intake Adjuster In Initial Setting:

Carefully Turn Against Direction of Rotation On Hexagon Head of Camshafts (2) with Open-End Spanner (1).

The Intake Adjusters Are Locked In The Initial Setting When The Camshafts Are Firmly Connected To The Adjusters.

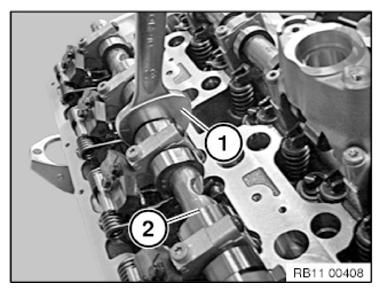

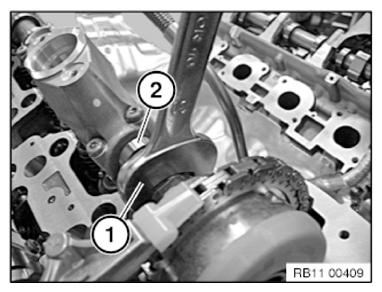

Fig 5: Rotating Intake Camshaft Carefully Against Direction of Rotation

Courtesy of BMW OF NORTH AMERICA, INC.

Check Locking of Exhaust Camshaft Adjusters In Initial Setting:

Carefully Turn Against Direction of Rotation On Hexagon Head of Camshafts (2) with Open-End Spanner (1).

The Exhaust Camshaft Adjusters Are Locked In The Initial Setting When The Camshafts Are Firmly Connected To The Adjusters.

Fig 6: Rotating Exhaust Camshaft Carefully Against Direction of Rotation

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: All Camshafts Must Be In Late Position.
If The Intake or Exhaust Camshaft Adjusters of The Camshafts "Cannot" Be Locked As Described, The Adjuster Is Faulty and Must Be Replaced.

Installation Note:

The Ground Surfaces of The Camshafts Face Up (See Fig 7).

Fig 7: Fitting Special Tool 2 249 117 with Ground Surface of Intake Camshaft Facing Up

Courtesy of BMW OF NORTH AMERICA, INC.

The Position of Exhaust Camshaft On Cylinder 4 Is Correct When The Cam Points Inwards At An Angle.

The Position of Intake Camshaft On Cylinder 4 Is Correct When The Cam Points Towards Bottom At An Angle.

See Fig 8.

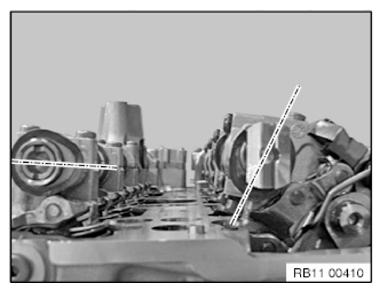

Fig 8: Identifying Proper Intake and Exhaust Camshaft Positions On Cylinder Number 4

Courtesy of BMW OF NORTH AMERICA, INC.

Fit Special Tool 2 249 137 On Intake Camshaft and Check Timing Adjustment.

NOTE: Timing Is Correctly Adjusted When Special Tool 2 249 137 Rests Without A Gap On Cylinder Head.

Screws (1) Are Not Required for Checking Timing.

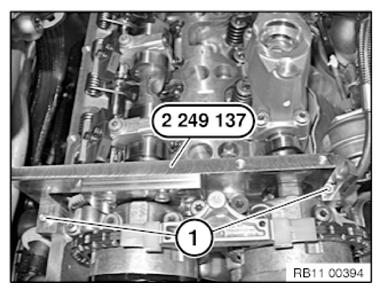

Fig 9: Fitting Special Tool 2 249 137 On Intake Camshaft and Checking Timing Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Place Special Tool 2 249 140 On The Exhaust Camshaft and Check Timing Adjustment.

NOTE: Timing Is Correctly Adjusted When Special Tool 2 249 140 Rests Without A Gap On Cylinder Head.

Screws (1) Are Not Required for Checking Timing.

If Necessary, Adjust Camshaft TIMING On Left Side.

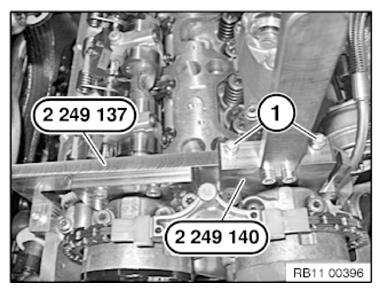

Fig 10: Positioning Special Tools On Exhaust Camshaft and Checking Timing Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Remove All Special Tools.

Assemble Engine.
