11 31 038 Removing and Installing/Replacing Right Exhaust Camshaft (N63)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

11 4 480 .

Cylinders 1-4

IMPORTANT: Risk of Damage!
The Exhaust Camshaft Must First Be Rotated In Such A Way That The Camshaft Is Free From Tension When The Bearing Caps Are Released.

Necessary Preliminary Tasks:

Remove Right HIGH-PRESSURE PUMP .
Remove Right CYLINDER HEAD COVER .
Remove Right EXHAUST CAMSHAFT ADJUSTER .

IMPORTANT: No Cam On The Exhaust Camshaft Is Permitted To Press Directly Onto A Roller Cam Follower.
with Cylinder No. 1 At 150° Before TDC Firing Position There Is No Piston In The TDC Position.

Rotate Exhaust Camshaft (2) At Dihedron with A Fork Wrench Into A Suitable Position.

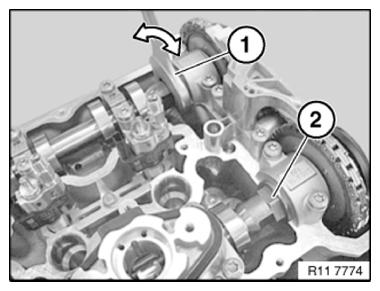

Fig 1: Rotating Camshafts Carefully Against Direction of Rotation

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The Intake Camshaft of Cylinder Bank 5-8 Is Marked "E 5-8".

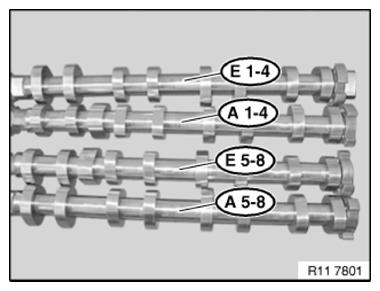

Fig 2: Locating Markings On Intake Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Release Bolts of Camshaft Bearings In Sequence (10 To 1) In 1/2 Turns.

Set All Bearing Caps Down In Special Tool 11 4 480 In A Neat and Orderly Fashion.

Remove Roller Tappet From Bearing Caps (2 and 3) of High Pressure Pump and Lay Down In Special Tool 11 4 480 .

Remove Left Exhaust Camshaft and Lay Down In Special Tool 11 4 480 .

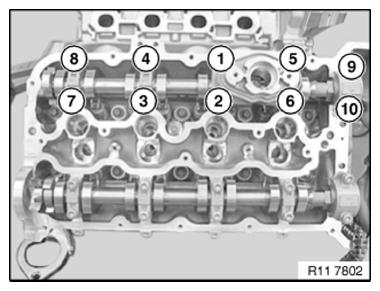

Fig 3: Right Exhaust Camshaft Bearing Cap Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Rocker Arms (1) of Can Slip Slightly When Inlet Camshaft Is Fitted.
Make Sure Rocker Arms (1) Are Secured As Illustrated On Hydraulic Valve Clearance Compensating Elements and On Valves.

Align All Rocker Arms (1) Straight.

Fig 4: Identifying Rocker Arms

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Plain Rectangular Compression Rings (1) Can Easily Break.

If Necessary, Replace Plain Compression Rings (1).

Press Plain Rectangular Compression Ring (1) On One Side Into Groove, Pull Up On Other Side and Unhook Latch Mechanism.

Carefully Pull Plain Rectangular Compression Ring (1) Apart and Remove Towards Front.

Ends of Plain Rectangular Compression Rings (1) Point Upwards.

Make Sure Plain Rectangular Compression Rings (1) Are Engaged At Ends.

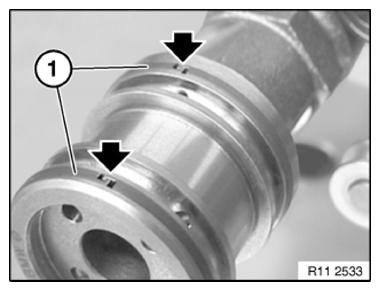

Fig 5: Locating Plain Rectangular Compression Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Coat All Bearing Positions with Engine Oil.

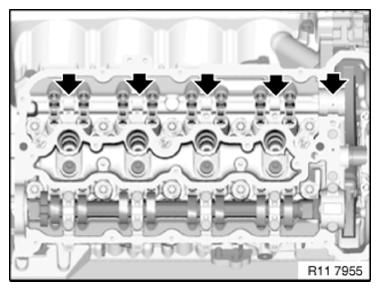

Fig 6: Locating Bearing Positions

Courtesy of BMW OF NORTH AMERICA, INC.

Install Exhaust Camshaft (1).

Turn Exhaust Camshaft (1) Until Cams Point To Side At Cylinder No. 1 As Shown In Graphic.

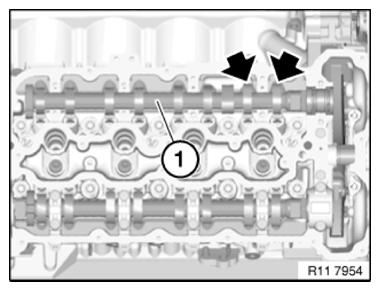

Fig 7: Positioning Cams On Exhaust Camshaft At Cylinder Number 1

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Bearing Caps of Cylinders 1-4 and Cylinders 5-8 Must Not Be Interchanged.
All Bearing Caps Are Coded and Can Only Be Installed In One Position.

All Bearing Caps Are Marked with Letters and Numbers:

L = Cylinder Bank 1-4.

R= Cylinder Bank 5-8.

E = Intake Side

A = Exhaust Side

1 = Marking, Bearing Point, From 1 To 5

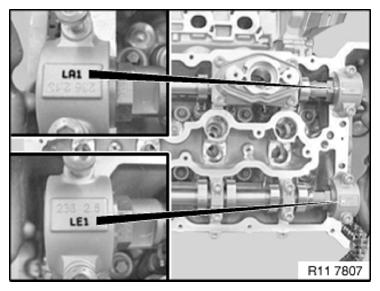

Fig 8: Locating Identification Marks On Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Insert All Bolts.

Tighten Down Bolts In Sequence (1 To 10) In 1/2 Turns.

Tightening torque 11 31 6AZ .

Tightening torque 11 31 7AZ .

Fig 9: Right Exhaust Camshaft Bearing Cap Bolts Tightening/Loosening Sequence (N63)

Courtesy of BMW OF NORTH AMERICA, INC.

Install Right INLET AND EXHAUST CAMSHAFT ADJUSTERS .

Adjust VALVE TIMING .

Assemble Engine.
