11 14 085 Removing and Installing Timing Case Cover, Top Right (N63)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Gear Case Cover, Cylinders 1-4
Necessary Preliminary Tasks:
- Remove Both SOLENOID VALVES On Right Side

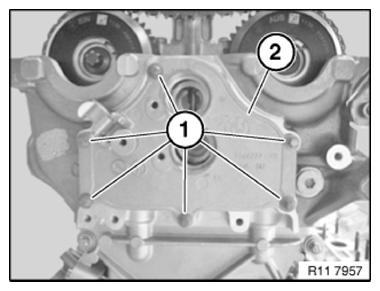

Release Screws (1).
Tightening torque 11 14 3AZ .
Remove Timing Case Cover (2).
Installation Note:
Replace Gasket.
Assemble Engine.
