11 25 671 Replacing piston rings of all pistons (N57 Diesel)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove PISTONS .

Remove all piston rings (2) with piston ring pliers (1).

NOTE: It might not be possible to find the identification on used piston rings.
Put aside piston rings in correct sequence and installation position.

Fig 1: Removing Piston Rings Using Piston Ring Pliers

G09920753

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install piston rings with "TOP" to piston crown.

Taper face compression ring
Stepped ring
Bevelled roof ring with spiral expander

Arrange piston ring contact points with offset of approx. 120° to one another, but not over gudgeon pin boss.

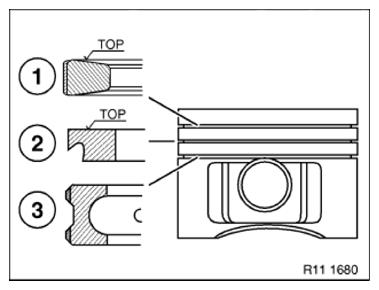

Fig 2: Identifying Compression Ring, Stepped Ring, And Bevelled Roof Ring

G09920754

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Marking (TOP) must point towards piston crown.

The oil scraper ring has no identification marking and can be installed in any position.

Fig 3: Identifying "TOP" Marking

G09920755

Courtesy of BMW OF NORTH AMERICA, INC.

Position piston rings offset 120° to each other.

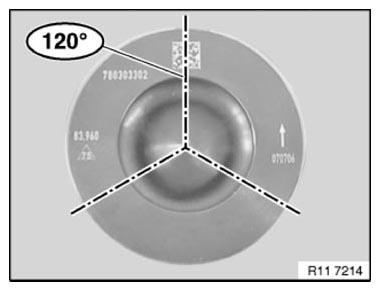

Fig 4: Identifying 120° Offset Of Piston Rings

G09920756

Courtesy of BMW OF NORTH AMERICA, INC.

Measure side clearance.

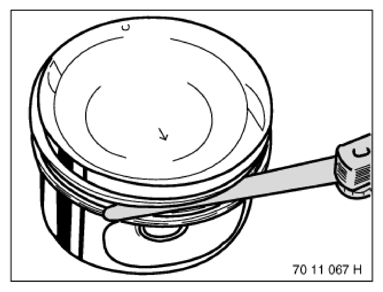

Fig 5: Measuring Side Clearance

G09920757

Courtesy of BMW OF NORTH AMERICA, INC.

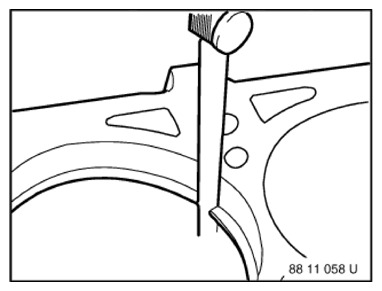

Measure end clearance.

Fig 6: Measuring End Clearance

G09920758

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
