11 25 671 Replacing piston rings on all pistons (N52)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove all PISTONS .

Measuring axial clearance of piston rings in piston ring groove:

refer to TECHNICAL DATA .

NOTE: It is not possible to measure the axial clearance of the U-flex rings.

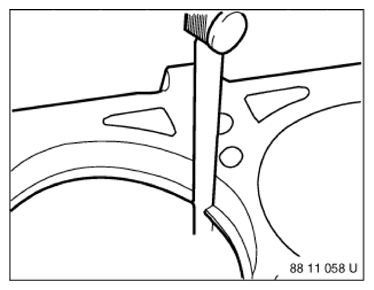

Fig 1: Measuring Side Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

Remove plain rectangular compression ring and stepped ring upwards with piston ring pliers.

The U-flex ring comprises two steel band rings and a bearing spring.

NOTE: The U-flex ring cannot be removed with piston ring pliers.
Put aside all piston rings in correct sequence and installation position.
It might not be possible to find the identification on used piston rings.

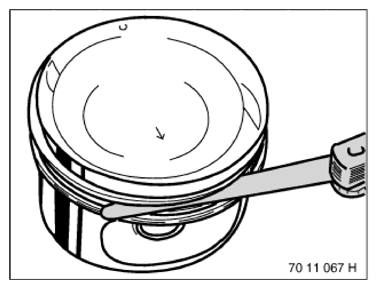

Fig 2: Removing Plain Rectangular Compression Ring And Stepped Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

New pistons may only be installed together with new piston rings.

Determine END CLEARANCE with a feeler gauge.

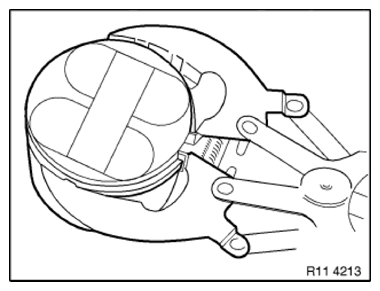

Fig 3: Measuring End Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram of piston rings.

Installation note:

Piston rings with "TOP" identification must point to piston crown.

Plain rectangular compression ring
Stepped ring "TOP"
U-flex ring

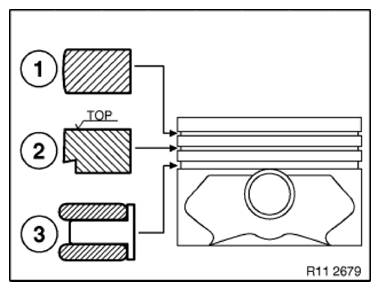

Fig 4: Identifying Piston Rings
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The U-flex ring comprises two steel band rings (1) and a bearing spring (2).

Installation note:

Insert bearing spring (2) into piston ring groove and then fit steel band rings (1) so that contact points are offset by approx. 120°.

Fig 5: Identifying Steel Band Rings And Bearing Spring Of M-Flex Ring

Courtesy of BMW OF NORTH AMERICA, INC.

The contact points (1) of the piston rings must be arranged offset by approx. 120°. However, the contact points (1) must not be arranged over the gudgeon pin boss.

NOTE: Picture shows N52.

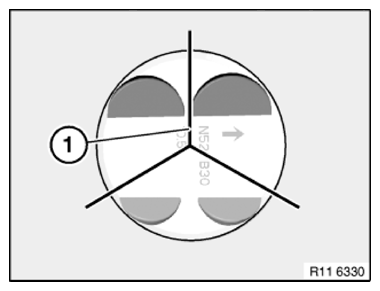

Fig 6: Identifying 120° Offset Of Piston Ring Contact Points

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
