11 34 715 Replacing all valve springs (N57 Diesel)

Special tools required:

• 11 4 480 .
• 11 8 840 .
• 11 9 000 .
• 11 9 001 .
• 11 9 005 .
• 11 9 006 .
• 11 9 008 .
• 11 9 009 .
• 11 9 011 .

Necessary preliminary tasks:

• Remove CYLINDER HEAD .

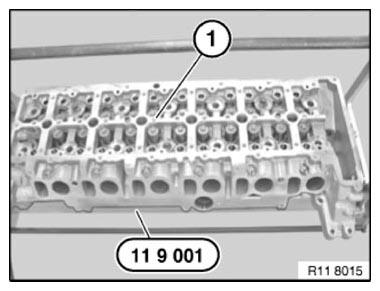

Mount cylinder head (1) on special tool 11 9 001 .

Fig 1: Mounting Cylinder Head On Special Tool (11 9 001)

Courtesy of BMW OF NORTH AMERICA, INC.

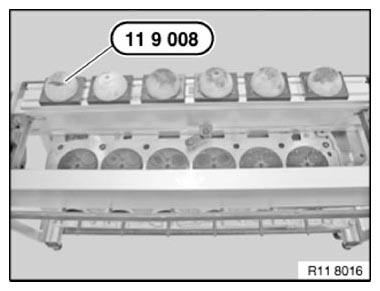

Remove all special tools 11 9 008 .

Fig 2: Identifying Special Tools (11 9 008)

Courtesy of BMW OF NORTH AMERICA, INC.

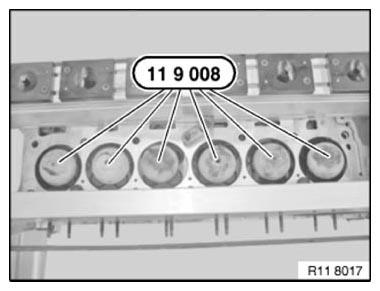

Position special tool 11 9 008 with straight surface on combustion chamber side of cylinder head (see Fig 3).

Fig 3: Positioning Special Tool (11 9 008)

Courtesy of BMW OF NORTH AMERICA, INC.

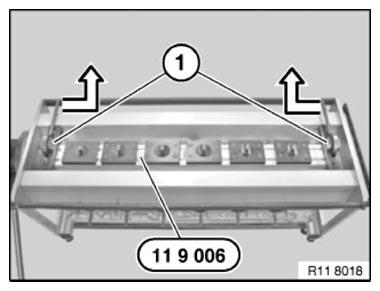

Insert special tool 11 9 006 .

Lock special tool 11 9 005 in direction of arrow.

Rotate cylinder head, using special tool 11 9 000 , 180° into installation position.

Fig 4: Rotating Cylinder Head Into Installation Position Using Special Tool (11 9 000)

Courtesy of BMW OF NORTH AMERICA, INC.

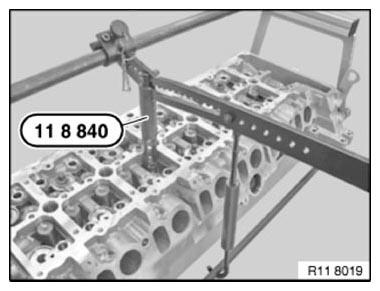

Align special tool 11 9 009 in direction of valve axis. Select corresponding groove in special tool 11 8 840 .

Press down valve spring on upper spring cup with special tool 11 9 009 .

Hook in with special tool 11 9 011 .

Fig 5: Preparing Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Use a magnet to remove valve keys (1) from valve (2).

Remove valve spring and spring cup.

Place down valve springs and valve keys on special tool 11 4 480 in an orderly manner.

Fig 6: Removing Valve Keys From Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Check color code of valve spring (1).

The color orange (2) on the valve spring is important for allocation purposes.

Mixed installation is possible.

Possible color sets:

• Yellow - orange
• Green - orange
• Blue - orange

The installation position of the valve spring can be freely selected.

Fig 7: Identifying Color Markings On Valve Spring

Courtesy of BMW OF NORTH AMERICA, INC.

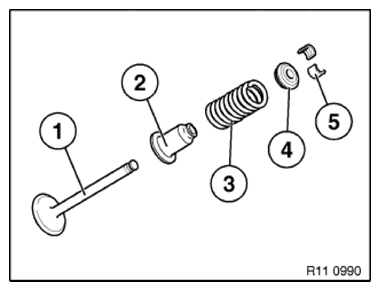

Installation sequence:

1. Valve
2. Valve stem seal
3. Valve spring
4. Top spring cup
5. Valve keys
   Fig 8: Exploded View Of Valve

   Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace VALVE STEM SEALS .

Assemble engine.
