11 34 715 Replacing all valve springs (N55)

Special tools required:

• 11 4 481 .
• 11 4 482 .
• 11 8 841
• 11 8 842
• 11 9 000 .
• 11 9 007 .

Necessary preliminary work:

• Remove CYLINDER HEAD .
• Remove EXHAUST CAMSHAFT .
• Remove INTERMEDIATE LEVER .
• Remove INTAKE CAMSHAFT .
• Remove ROCKER ARM .

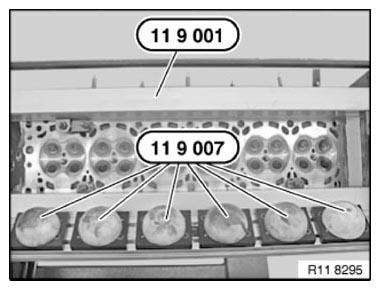

Place cylinder head on special tool 11 9 000 .

Align special tool 11 9 007 on particular combustion chamber.

Fig 1: Placing Cylinder Head On Special Tool (11 9 000) And Aligning Special Tool 11 9 007 On Combustion Chamber

Courtesy of BMW OF NORTH AMERICA, INC.

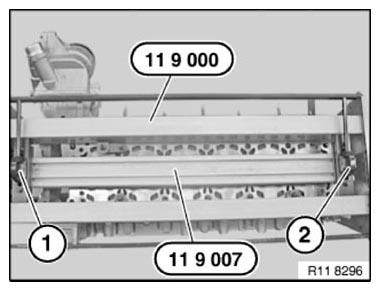

Position special tool 11 9 007 on cylinder head.

Push locks (1 and 2) toward inside and preload via eccentric shaft.

Fig 2: Identifying Special Tools And Locks

Courtesy of BMW OF NORTH AMERICA, INC.

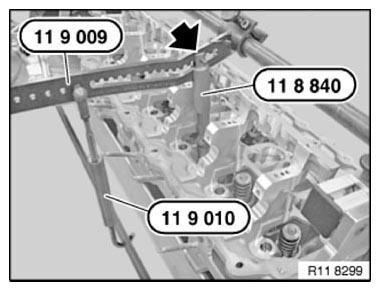

Press down intake valve  with special tool 11 8 841.

Fig 3: Pressing-Down Valve Springs

Courtesy of BMW OF NORTH AMERICA, INC.

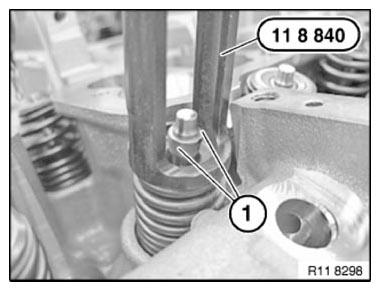

Remove valve key (1) with a magnet.

Remove valve spring with spring cups.

If individual components are to be reused, they must be placed in neat order in special tool 11 4 481 .

Fig 4: Removing Valve Key

Courtesy of BMW OF NORTH AMERICA, INC.

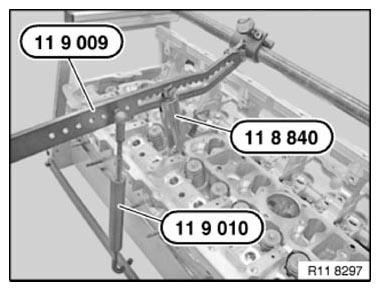

Press down discharge valve  with special tool 11 8 842.

Fig 5: Pressing Down Discharge Valve

Courtesy of BMW OF NORTH AMERICA, INC.

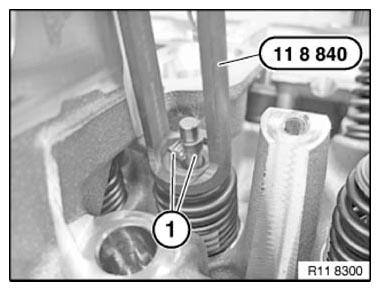

Remove valve key (1) with a magnet.

Remove valve spring with spring cups.

If individual components are to be reused, they must be placed in neat order in special tool 11 4 482 .

Fig 6: Removing Valve Key

Courtesy of BMW OF NORTH AMERICA, INC.

Valve springs are marked in color (1).

Colors for intake valves:

• Green/blue
• Yellow/Blue

Colors for discharge valves:

• Green/white
• Yellow/white
  Fig 7: Identifying Color Marking On Valve Spring

  Courtesy of BMW OF NORTH AMERICA, INC.

Install the valve spring so that the larger diameter points to the lower spring cup.

Arrangement:

1. Valve
2. Valve stem seal with lower spring cup
3. Valve spring
4. Upper spring cup
5. Valve keys
   Fig 8: Exploded View Of Intake Valve

   Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DME; if necessary, readjust uniform mixture distribution.
