11 24 571 Replacing all connecting rod bearings (N63 O1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 590 .
00 9 120 .

IMPORTANT: Note GRINDING STAGES ON CRANKSHAFT .

Necessary preliminary work:

Remove all PISTONS .

Install new connecting rod bearing shells.

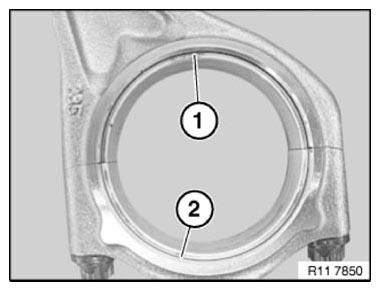

Install one blue bearing shell (1) and one red bearing shell (2) in each connecting rod.

Graphic N63.

Fig 1: Identifying Blue Bearing Shell And Red Bearing Shell

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

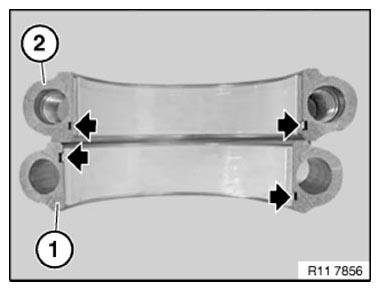

The bearing shells on the connecting rod are coded.

Connecting rod bearing cap (1): the red bearing shell is engaged and the fastening notches are on the left and right sides of the bearing shell (see arrows).

Connecting rod (2): the blue bearing shell is fitted and the fastening notches are one side of the bearing shell (see arrows).

Fig 2: Locating Fastening Notches On Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

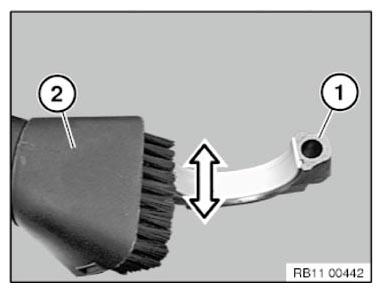

IMPORTANT: New connecting rods must be vacuum cleaned prior to installation.
Do not use compressed air to blow off cracked areas.

Use a commercially available vacuum cleaner (2) to vacuum clean cracked areas (1).

Fig 3: Cleaning Cracked Areas

Courtesy of BMW OF NORTH AMERICA, INC.

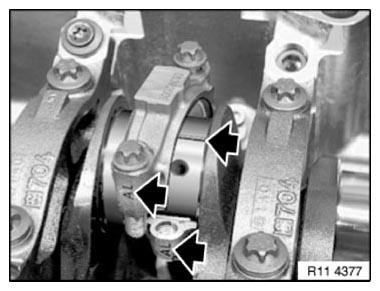

Check connecting-rod bearing play .

Piston in BDC position.

Fit special tool 00 2 590 (Plastigage type PG 1) to oil-free crankshaft.

Fit bearing caps so that matching numbers match up.

Fig 4: Installing Special Tool (00 2 590) To Oil-Free Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

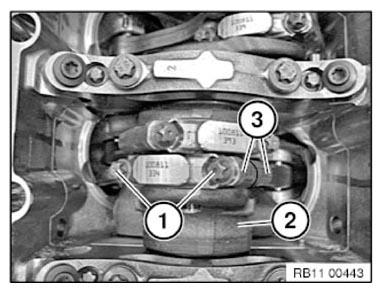

IMPORTANT: Do not turn connecting rod and crankshaft (2).

Use connecting rod bolts (1) to check connecting-rod bearing play.

Secure connecting rod bolts (1) with special tool 00 9 120 .

Tightening torque 11 24 1AZ .

Note the pairing letters (3).

Fig 5: Identifying Connecting Rod Bolts, Crankshaft, And Pairing Letters

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bearing cap and read off radial clearance at width of crushed plastigage with assistance of measuring scale.

CONNECTING-ROD BEARING PLAY .

Remove Plastigage.
Lubricate crankshaft and bearing shells.
Install new connecting rod bolts.

Fig 6: Measuring Radial Clearance
Courtesy of BMW OF NORTH AMERICA, INC.

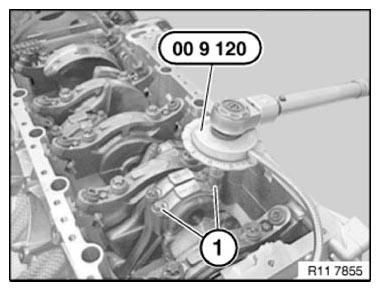

Secure connecting rod bolts with special tool 00 9 120 .

Tightening torque 11 24 1AZ .

Graphic N63.

Fig 7: Securing Connecting Rod Bolts Using Special Tool (00 9 120)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
