11 24 571 Replacing all connecting rod bearings (N57 Diesel)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 590 .
00 9 120 .

IMPORTANT: Different connecting rod bearing shells.
Connecting rod and connecting rod bearing cap are different .
Replace connecting rod bolts.

Necessary preliminary tasks:

Remove all PISTONS .

IMPORTANT: Note grinding stages on crankshaft.

Insert one bearing shell for each connecting rod.

Connecting rod bearing (1) is for the connecting rod bearing cap.

Connecting rod bearing (2) is for the connecting rod.

Installation note:

Observe encoding of connecting rod bearing shells.

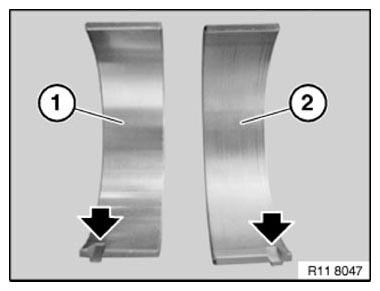

Fig 1: Identifying Connecting Rod Bearings

Courtesy of BMW OF NORTH AMERICA, INC.

Install piston with connecting rod.

Check connecting-rod bearing play.

Piston in BDC position.

Fit special tool 00 2 590 (Plastigage type PG 1) to oil-free crankshaft.

Fig 2: Installing Piston With Connecting Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Fit connecting rod bearing cap so that matching numbers match.

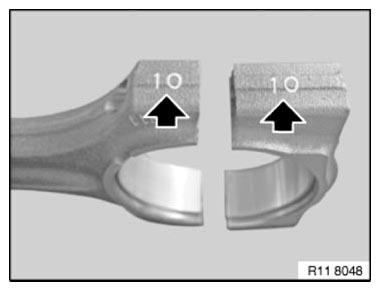

Fig 3: Identifying Connecting Rod Bearing Cap Numbers

Courtesy of BMW OF NORTH AMERICA, INC.

Both markings (anti-twist lock) on connecting rod big end (2) and on connecting rod (1) must point to each other.

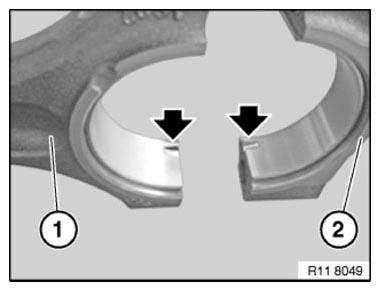

Fig 4: Identifying Connecting Rod, Big End, And Markings

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not turn the connecting rods or crankshaft.

To check connecting-rod bearing play, use old connecting rod bolts.

Tighten down connecting rod bolts (1) with special tool 00 9 120 .

Tightening torque 11 24 1AZ .

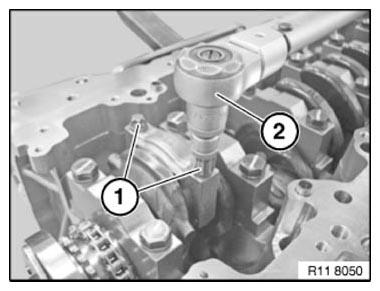

Fig 5: Tightening Connecting Rod Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew connecting rod bearing cap.

Read off bearing clearance at width of crushed plastic thread (Plastigage) with aid of measuring scale.

Connecting-rod bearing play.

Remove Plastigage.

Fig 6: Measuring Radial Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

Install new connecting rod bolts (1).

Join connecting rod bolts (1).

Tightening torque: 11 24 1 AZ .

Fig 7: Tightening Connecting Rod Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Mark all connecting rod bolts (1) with a colored mark (2) in the same axial direction.

Installation note:

See Fig 8.

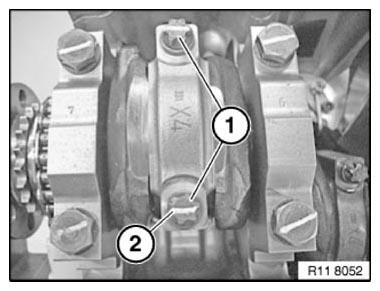

Fig 8: Marking Heads Of Connecting Rod Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Secure connecting rod bolts (1) with special tool 00 9 120 .

Tightening torque: 11 24 1AZ .

Installation note:

Visually check connecting rod bolt connection.

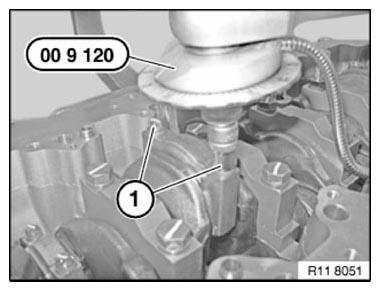

Fig 9: Securing Connecting Rod Bolts Using Special Tool (00 9 120)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
