11 13 010 Removing and installing/replacing upper oil sump section (N63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 240 .

Necessary preliminary tasks:

Secure engine in INSTALLATION POSITION .
Lower front axle. See LOWERING/RAISING FRONT AXLE SUPPORT (UNIVERSAL LIFTER) or LOWERING/RAISING FRONT AXLE SUPPORT (AWD VEHICLES) .
Remove OIL PUMP .
Remove FRONT AXLE DIFFERENTIAL (AWD only).
Remove front output shaft BEARING SUPPORT (AWD only).
Unclip wiring harness on oil sump.

Remove oil filter cover with oil filter (1) with special tool 11 9 240 .

Tightening torque: 11 42 1AZ .

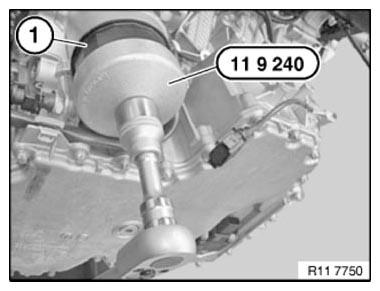

Fig 1: Removing Oil Filter Cover

G09919584

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1). Remove oil pipes (2) from oil filter housing.

Release holders of supply/return lines on oil sump

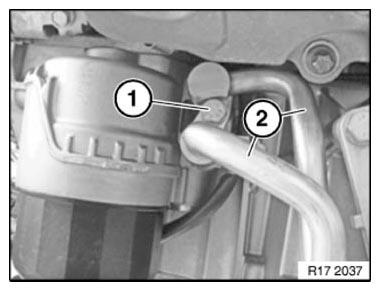

Fig 2: Identifying Oil Pipes And Bolt

G09919585

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Tightening torque: 11 41 1AZ .

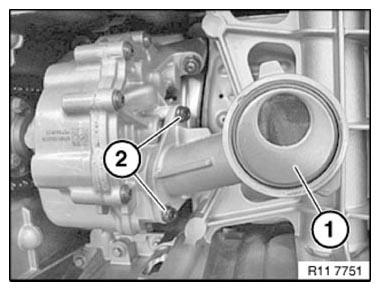

Fig 3: Identifying Screws

G09919586

Courtesy of BMW OF NORTH AMERICA, INC.

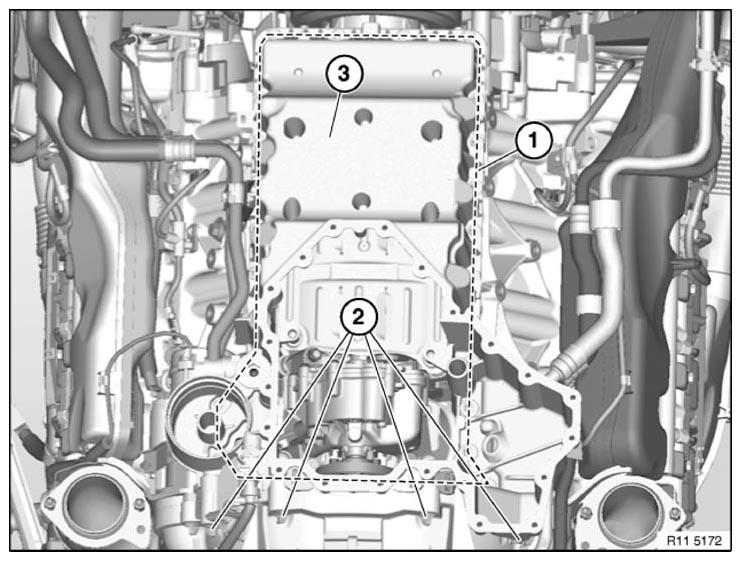

Fig 4: Identifying Upper Oil Sump Section And Bolts

G09919587

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts in area of line (1).

Tightening torque 11 13 2AZ .

Release bolts (2) on transmission side 24 00 1AZ .

Remove upper oil sump section (3).

Installation note:

Free sealing surfaces of seal debris and clean.

Replace gasket.

Modify oil pressure switch if replacing oil sump.

Assemble engine.
