11 13 000 Removing and installing, sealing or replacing oil sump (N55) AWD

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Aluminum screws/bolts are permitted with and without color coding (blue).
Aluminum screws/bolts must be replaced each time they are released .
For reliable identification:
Aluminum screws/bolts are not magnetic .
Joining torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary tasks:

Remove left CHARGE AIR DUCT .
Drain and add ENGINE OIL .
Remove FRONT AXLE DIFFERENTIAL .
Remove BEARING SUPPORT .
Detach power steering pump and set it aside (Dynamic Drive only). See REMOVING/INSTALLING POWER STEERING PUMP and REMOVING/INSTALLING HYDRAULIC PUMP FOR DYNAMIC DRIVE .
Remove ENGINE SUPPORT ARM .
Detach deflecting element and holder from oil sump.

NOTE: The lines must be detached from the oil sump on vehicles with automatic transmission; if necessary, detach oil pump and place to one side.

Release bolts (3) on transmission.

Tightening torque 11 13 6AZ .

Detach return hose (2).

IMPORTANT: For vehicles with four-wheel drive or automatic transmission, bolts of different lengths are installed for mounting the oil sump.
Observe different tightening torques .

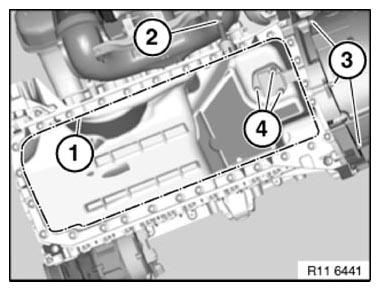

Fig 1: Identifying Bolts, Screws, And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts along line (1).

For vehicles with four-wheel drive or automatic transmission:

Tightening torque 11 13 2 AND 3AZ .

Additionally for vehicles with four-wheel drive:

Tightening torque 11 13 4AZ .

Installation note:

Replace aluminum screws .

If necessary, release nuts (4). Remove oil level sensor.

Tightening torque 11 13 7AZ .

Installation note:

Replace sealing ring .

IMPORTANT: There must be no adhesive residues in the lower crankcase section retaining threads.
Clean retaining threads and sealing surfaces .

Installation note:

Replace all gaskets .

Assemble engine.
