11 14 250 Removing and installing/sealing rear coolant end cover (N63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 470 .

WARNING: Risk of scalding!

Only perform this work after engine has cooled down.

Recycling:

Catch and dispose of drained coolant in a suitable collecting vessel.

Observe country-specific waste disposal regulations.

Necessary preliminary work:

Remove FLYWHEEL .
Drain COOLANT .

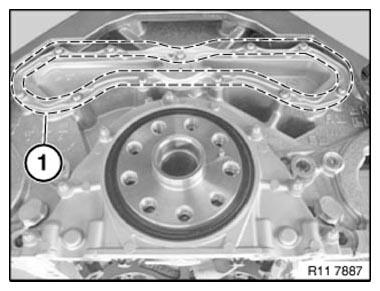

Release all screws in area (1).

Tightening torque 11 14 5AZ .

Remove end cover.

NOTE: Clean sealing surfaces with special tool 11 4 470 .

Fig 1: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

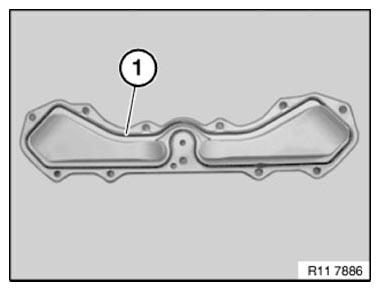

Replace profile seal (1) .

Fig 2: Identifying Profile Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
