11 14 151 Replacing rear crankshaft seal (N57 Diesel)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Drain off ENGINE OIL .
Remove FLYWHEEL .
Remove accelerator pedal module ring using suitable tool

IMPORTANT: Accelerator pedal module rings must be installed in a dry condition.
Do not use engine oil or lubricant.

IMPORTANT: Risk of damage to special tool at chamfer in area of end face.

Position special tool 11 8 815 on crankshaft.

Fig 1: Positioning Special Tool 11 8 815 On Crankshaft

G09919818

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 11 8 815 to fit FPM ring (1) in direction of arrow just up to timing case cover and position.

Remove special tool 11 8 815 .

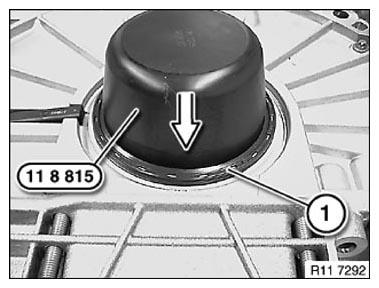

Fig 2: Installing Accelerator Pedal Module Ring

G09919819

Courtesy of BMW OF NORTH AMERICA, INC.

Fasten special tool 11 8 811 on the crankshaft with special tool 11 8 812 .

Position accelerator pedal module ring (1).

Fig 3: Identifying Accelerator Pedal Module Ring And Special Tools

G09919820

Courtesy of BMW OF NORTH AMERICA, INC.

Slide on special tool 11 8 813 .

Screw down special tool 11 8 814 .

Fig 4: Fitting Special Tools

G09919821

Courtesy of BMW OF NORTH AMERICA, INC.

Press in accelerator pedal module ring with special tool 11 8 813 .

Screw in special tool 11 8 813 up to timing case cover.

Fig 5: Pressing-In Accelerator Pedal Module Ring

G09919822

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools 11 8 810 .

Assemble engine.

Check engine for leak tightness.
