11 14 010 Replacing sealing cap for vacuum pump (N52)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

Remove FAN COWL .
Remove alternator DRIVE BELT .
Remove both drive belt TENSIONERS .

NOTE: For purposes of clarity, graphics show alternator and power steering pump removed.

Secure special tools 11 8 535 , 11 8 531 , 11 8 537 and special tool 11 9 266 .

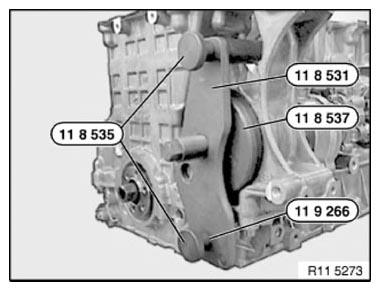

Fig 1: Securing Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 11 8 537 by hand on sealing cap.

Screw in special tool 11 8 534 .

NOTE: The sealing cap is pressed out diagonally during this operation

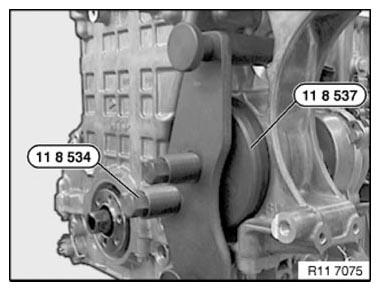

Fig 2: Screwing-In Special Tool 11 8 534

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in new sealing cap (1) with special tools 11 8 532 and 11 8 533 until flush with crankcase upper part.

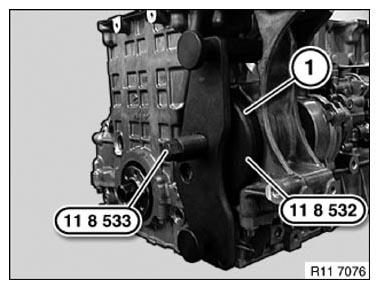

Fig 3: Screwing-In Sealing Cap Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
