11 15 510 Measuring the internal engine pressure (N55)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 880 .
81 38 2 201 924.
83 30 0 496 326.

Necessary preliminary tasks:

Follow diagnosis instructions for pressure testing.
Check engine oil level.

NOTE: Create tube 8x13 mm of length 70 mm.

Open oil filler cap.

Insert special tool 11 9 880hand-tight into oil filler neck opening.

Connect low-pressure hose (2) with diagnosis connection of Integrated Measurement Interface Box and tube (1).

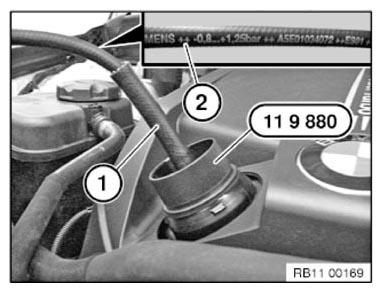

Fig 1: Identifying Special Tool 11 9 880, Tube, And Low-Pressure Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Connect tube (1) to special tool 11 9 880 .

Start engine and run at idle speed.

Order number for low-pressure hose:

81 38 2 201 924.

Order number for oil sealing cap:

83 30 0 496 326.

NOTE: The 25 bar sensor may optionally be used.

Open oil filler cap.

Insert special tool 11 9 880hand-tight into oil filler neck opening.

Attach 25 bar pressure sensor (1) to special tool 11 9 880 .

Start engine and run at idle speed.

Order number for oil sealing cap:

83 30 0 496 326.

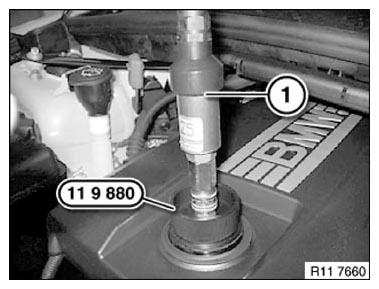

Fig 2: Identifying Pressure Sensor And Special Tool 11 9 880

Courtesy of BMW OF NORTH AMERICA, INC.

Graphic N43.

Different fault patterns as example:

0, 97 Bar Ambient pressure.

0, 95 Bar Engine internal pressure normal.

If the deviation is significantly greater than - 0.04 bar, the engine ventilation system is faulty .

0, 80 Bar Pressure control valve faulty.

If the deviation is significantly greater than +0.04 bar, the engine ventilation system is clogged .

1, 07 Bar Clogged ventilation system, e.g. iced up, contaminated or kinked vent line.
