11 31 032 Removing and installing/replacing left intake camshaft (N63 O1)

Special tools required:

• 11 4 480 .

(cylinder bank 5 to 8)

Necessary preliminary work:

• Remove the FRONT AXLE COMPLETELY WITH THE ENGINE AND TRANSMISSION .
• Remove LEFT CYLINDER HEAD COVER .
• Check TIMING .
• Remove LEFT INTAKE ADJUSTMENT UNIT .
• Remove the TORSION SPRINGS for Valvetronic.

Release screws of camshaft bearings in 1/2 revolutions.

Set down all bearing caps in a tidy and orderly fashion on special tool 11 4 480 .

Remove the intake camshaft "E 58".

Fig 1: Identifying Camshaft Bearings

Courtesy of BMW OF NORTH AMERICA, INC.

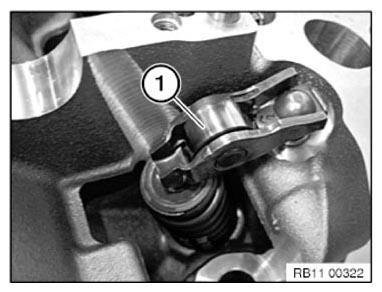

Fig 2: Identifying Rocker Arm

Courtesy of BMW OF NORTH AMERICA, INC.

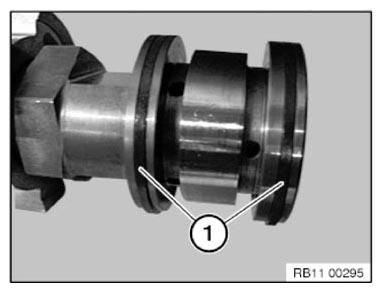

Check plastic plain rectangular compression rings (1) for freedom of movement.

Fig 3: Identifying Plastic Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Plastic plain rectangular compression ring:

Installation note:

The plastic plain rectangular compression rings are maintenance free and do not have to be replaced.

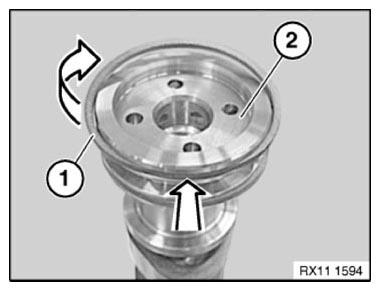

Insert plastic plain rectangular compression ring (1) into groove of intake camshaft (2) (see arrow).

Lightly oil plastic plain rectangular compression ring (1) and rotate in direction of arrow until plastic plain rectangular compression ring (1) is positioned on the intake camshaft.

Fig 4: Inserting Plastic Rectangular Compression Ring Into Groove Of Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

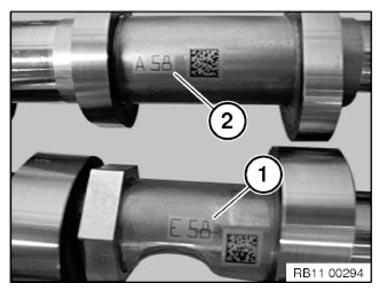

Fig 5: Identifying Markings On Cylinder Bank 5 to 8 Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Insert intake camshaft (1).

Illustration: Cylinders 1 to 4.

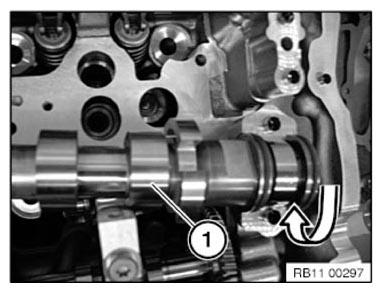

Fig 6: Inserting Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Attach all bearing caps from (E1 to E5).

Screw all bearing caps.

Tightening torque: 11 31 6AZ .

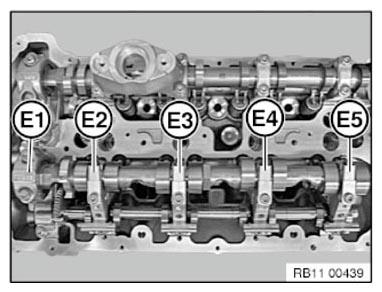

Fig 7: Identifying Camshaft Bearings

Courtesy of BMW OF NORTH AMERICA, INC.

Install all intermediate levers with TORSION SPRINGS .

Install INTAKE ADJUSTMENT UNITS .

Adjust VALVE TIMING .

Assemble engine.
