51 24 300 Removing and installing or replacing left or right gas strut for trunk lid

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove luggage compartment wheel arch trim

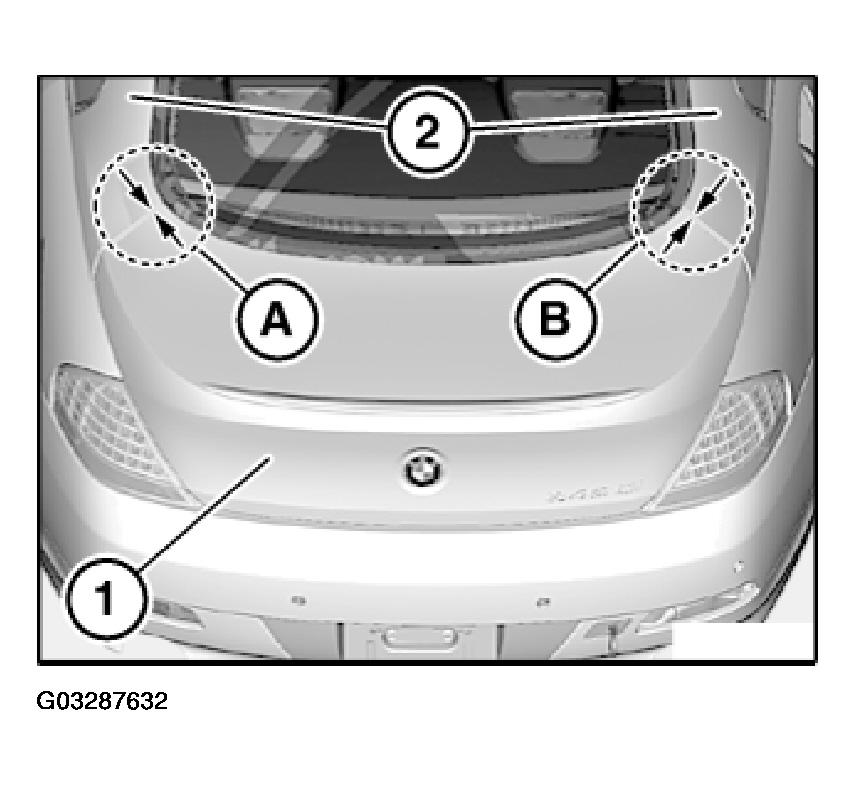

IMPORTANT: When working on the rear gas struts, there is a risk of paintwork damage in areas (A and B) of rear lid (1) and side panels (2). Open and close carefully. If necessary, remove rear lid.

Fig 1: Identifying Paintwork Area Of Rear Lid And Side Panels

Courtesy of BMW OF NORTH AMERICA, INC.

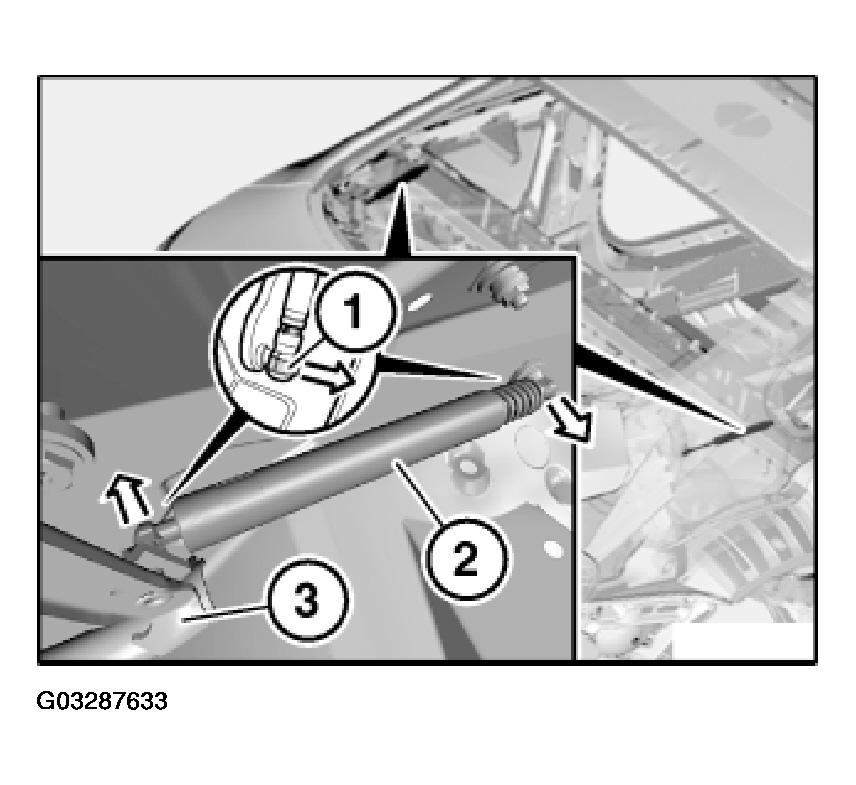

Lever out both retaining springs (1).

Lever out gas strut (2) from ball pins of side panel and rear lid hinge (3) and remove.

Fig 2: Removing And Installing Or Replacing Left Or Right Gas Strut For Trunk Lid

Courtesy of BMW OF NORTH AMERICA, INC.
