51 43 251 Removing and installing/replacing trim panel for left or right rear roof pillar (Cpillar)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Unclip clips (1) of trim panel (2) at top in direction of arrow.

Feed out trim panel (2) at bottom in direction of arrow.

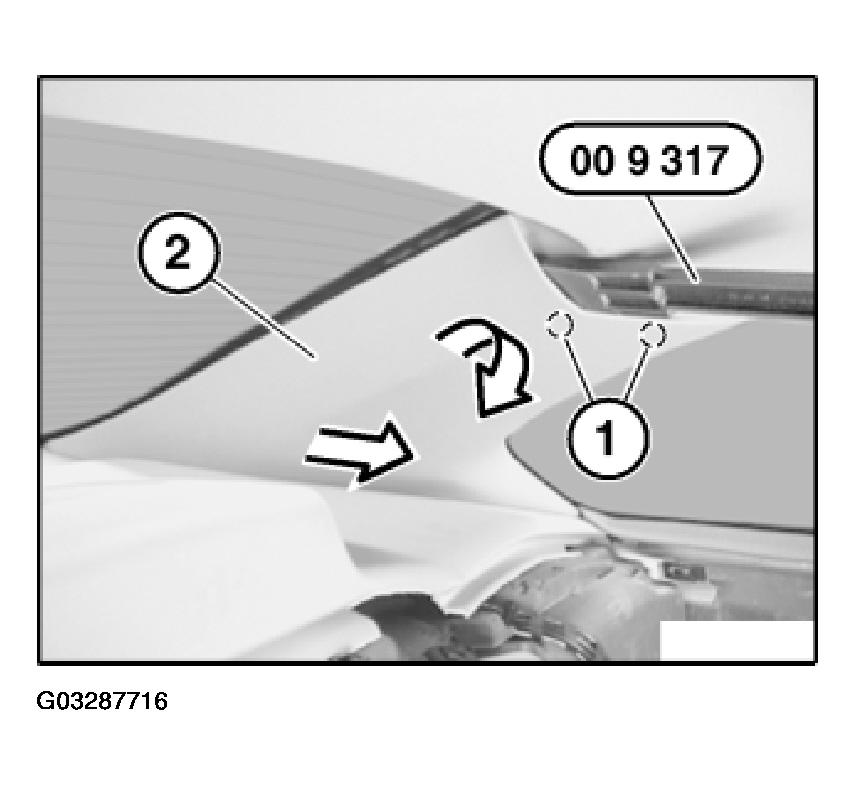

Fig 1: Removing Trim Panel For Left Or Right Rear Roof Pillar (Cpillar)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1).

Guide (2) of trim panel (3) must not be damaged.

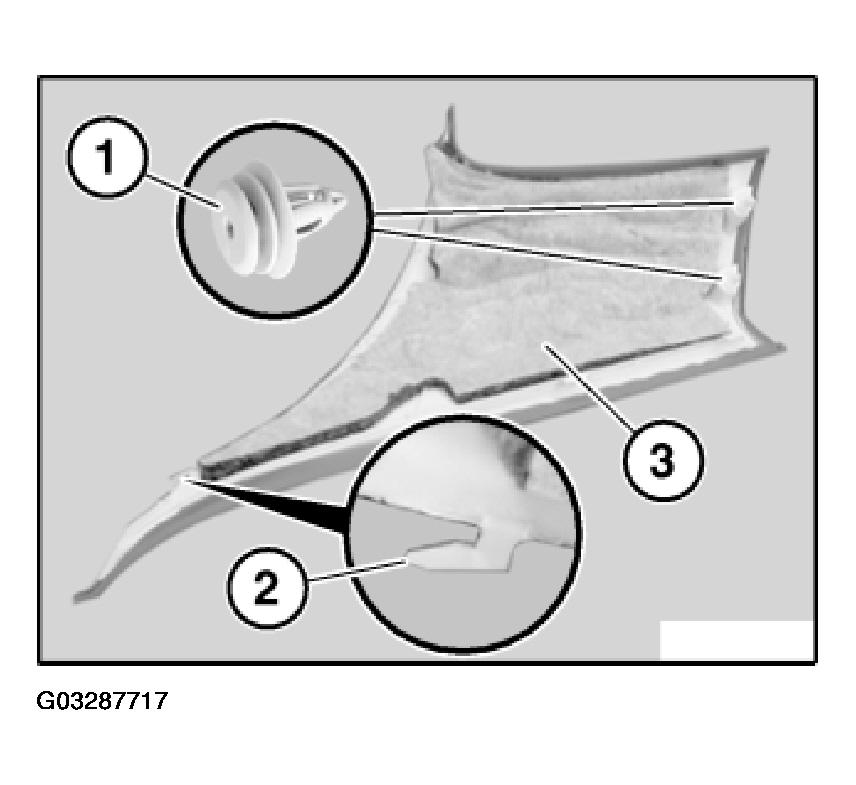

Fig 2: Identifying Clips And Guides Of Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
