51 43 201 Removing and installing or replacing trim for front left or right roof pillar

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow safety instructions for working on cars with airbag systems.

IMPORTANT: Do not use any sharp-edged tools to remove trim (risk of damage to head airbag).

Release mucket (1) in area of trim for front roof pillar (2).

Unclip protective cap (3) and remove.

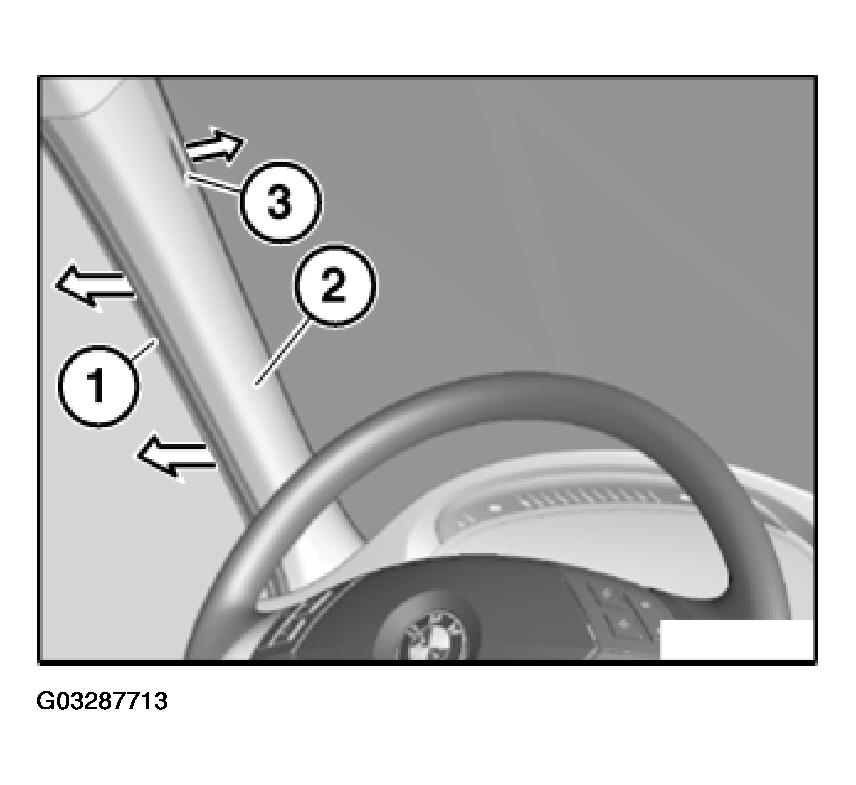

Fig 1: Removing Mucket

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1), tightening torque, refer to 51 43 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 645CI .

Unclip trim for front roof pillar (2) from mounting point (3).

Feed trim for front roof pillar (2) out of instrument panel trim (4) and remove.

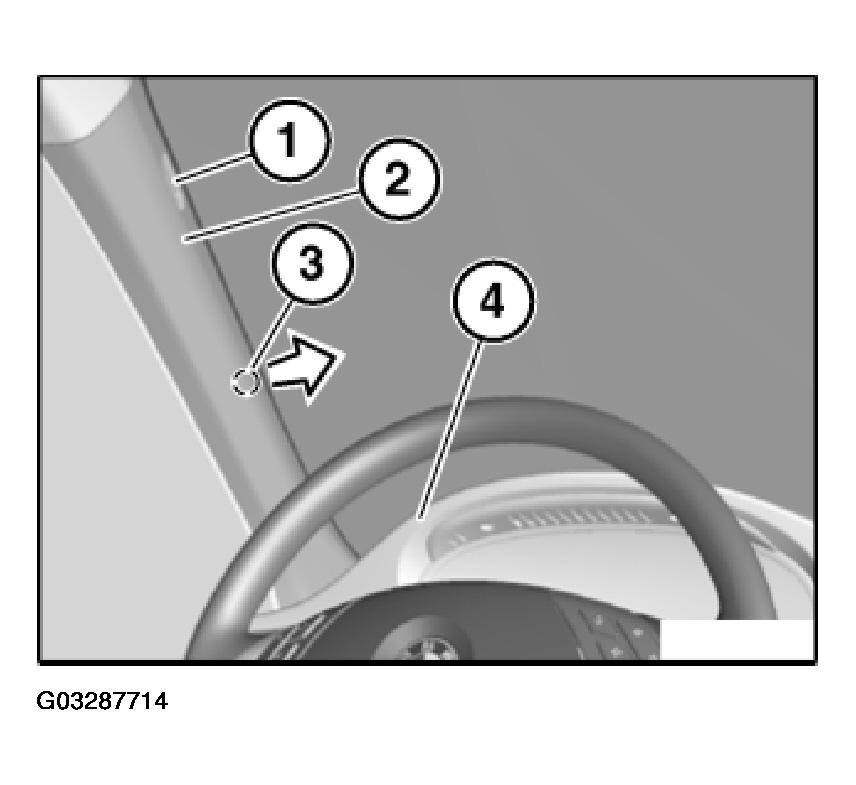

Fig 2: Removing Trim For Front Roof Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, lever out clip (1) remaining in bore.

If necessary, replace faulty clip (1).

Make sure guide (3) of trim for front roof pillar (2) are correctly seated in associated mounting.

Position trim for front roof pillar (2) preassembled with clip (1) on associated bore and clip into place.

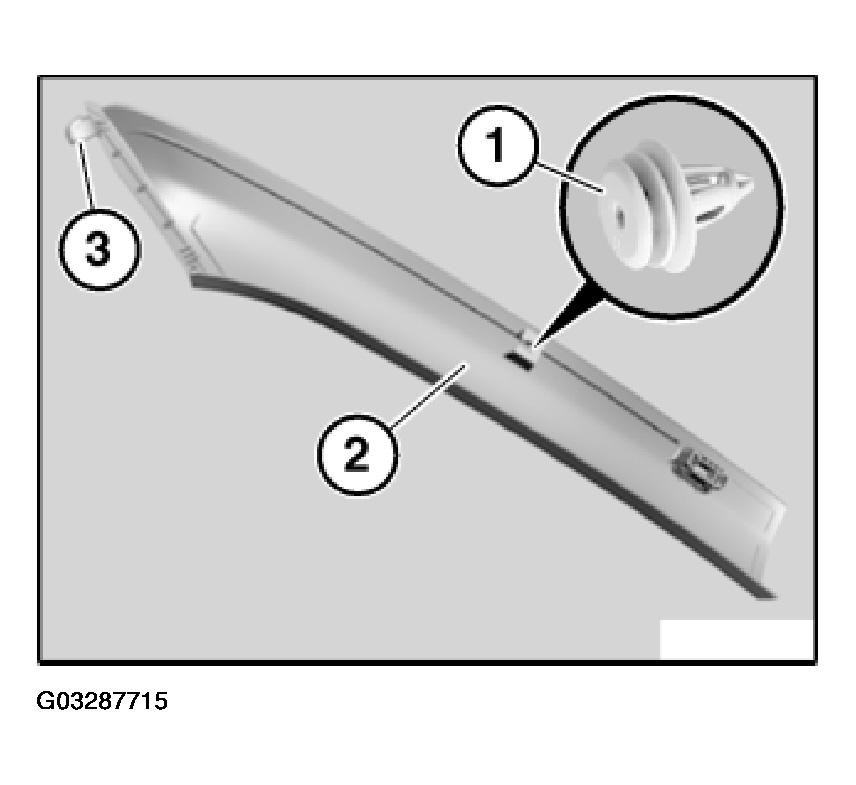

Fig 3: Positioning Trim For Front Roof Pillar

Courtesy of BMW OF NORTH AMERICA, INC.
