51 43 148 Removing and installing or replacing trim on left or right door pillar (top)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63)

00 9 317

Lever out cap (1).

Release screw (2) and detach seatbelt strap (5).

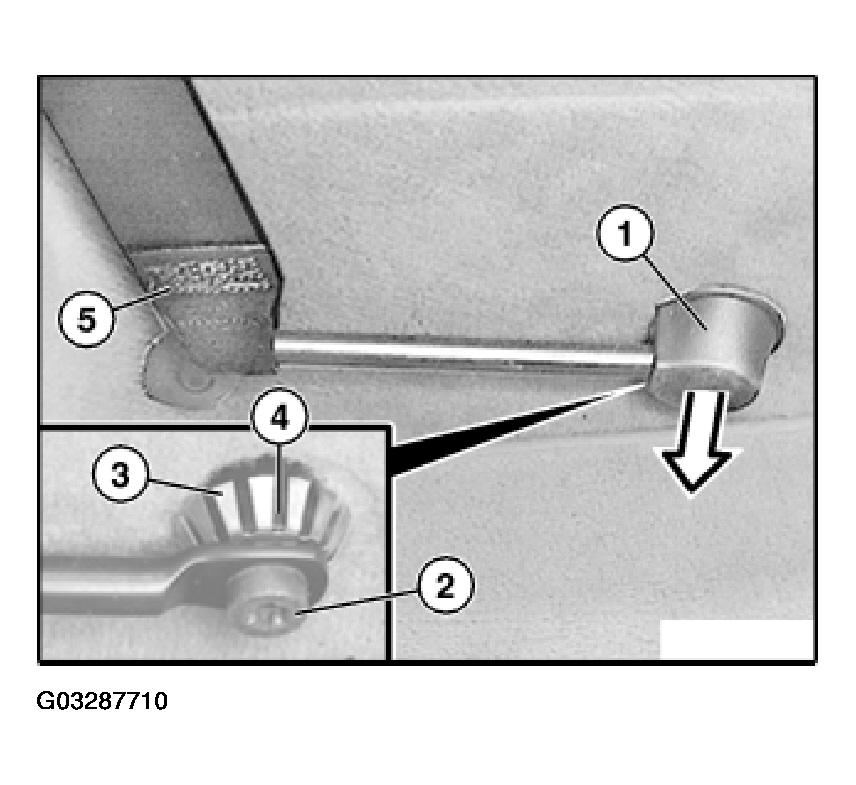

Fig 1: Releasing Screw And Detaching Seatbelt Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 44 N.m.

Partially loosen edge protection (1).

Unclip clips (2) of panel (3) with special tool 00 9 317 in direction of arrow.

Feed out seatbelt strap (4) and remove panel (3).

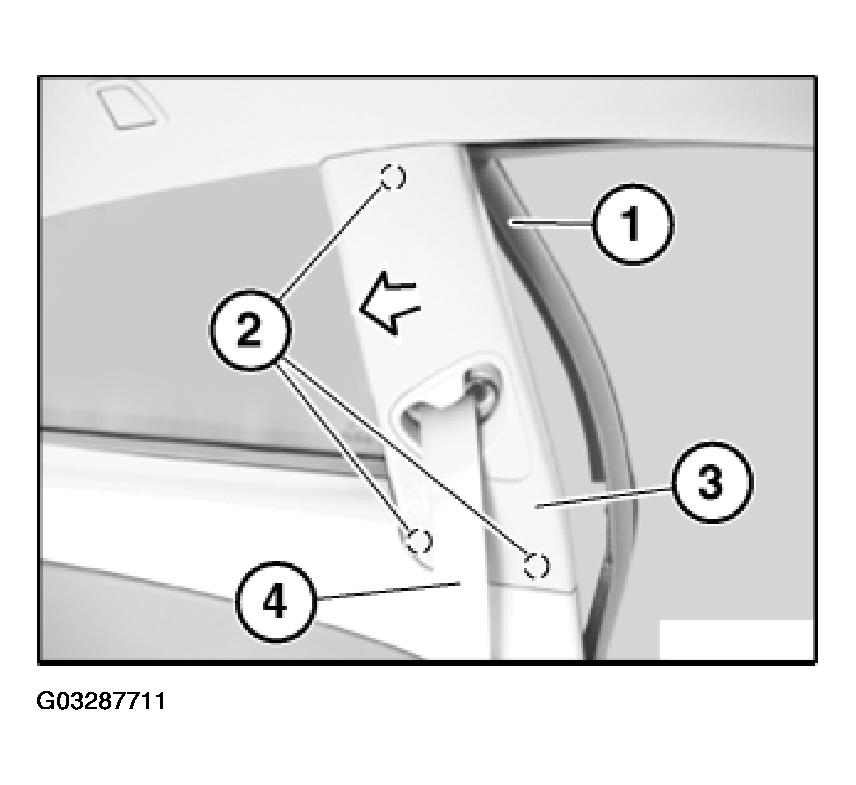

Fig 2: Removing Seat Belt Strap And Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) of panel (2) must not be damaged.

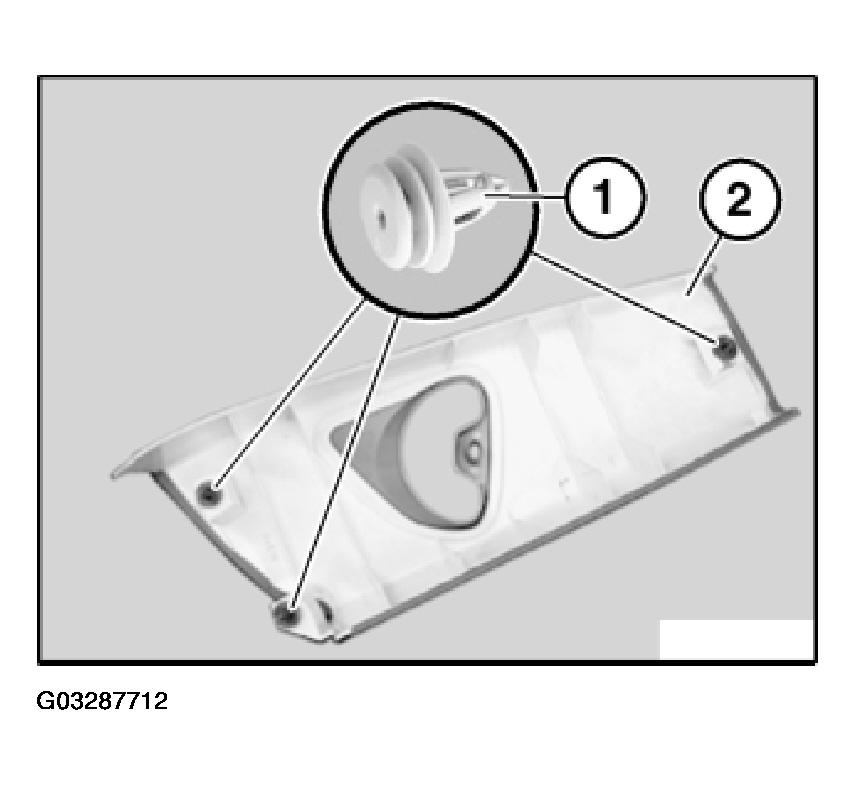

Fig 3: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.
