51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front entrance cover strip (inside)

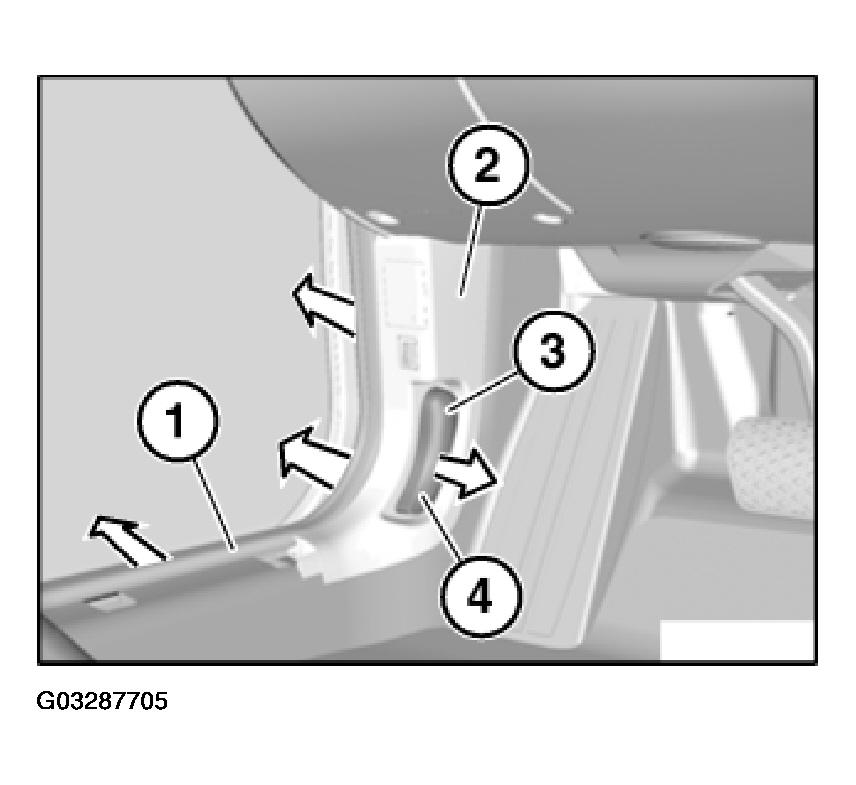

Release door mucket (1) in area of footwell side trim panel on A-pillar on left (2).

Unscrew bolt (3).

Remove engine hood actuator lever (4) from footwell side trim panel on A-pillar on left (2).

Fig 1: Removing Engine Hood Actuator Lever From Footwell Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

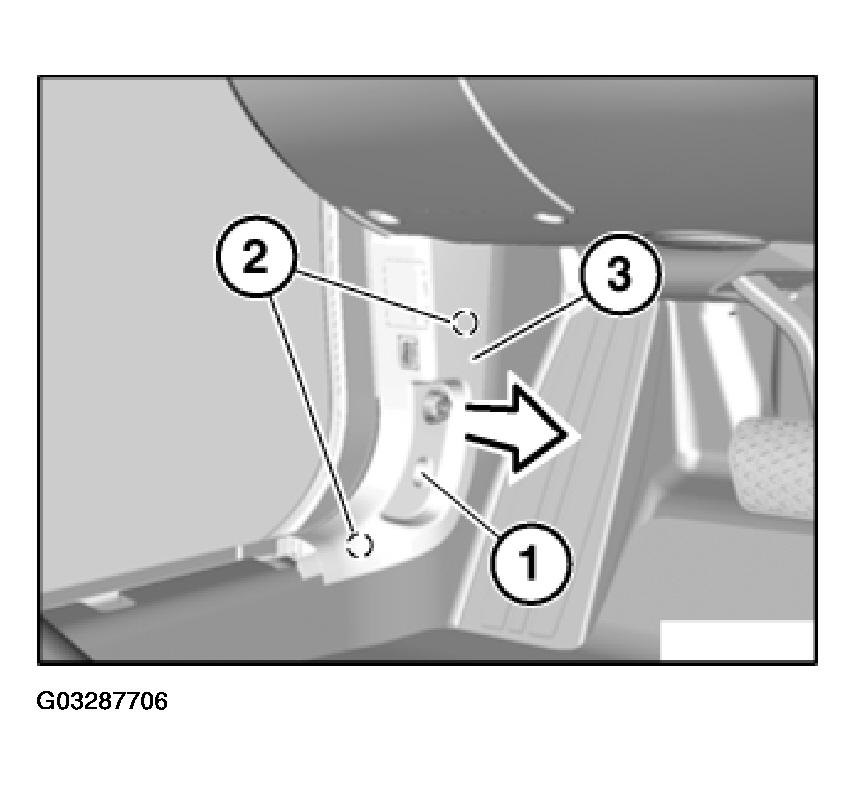

Unscrew bolt (1).

Unclip footwell side trim panel on A-pillar on left (3) in direction of arrow from retaining points (2) and remove.

Fig 2: Removing Footwell Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

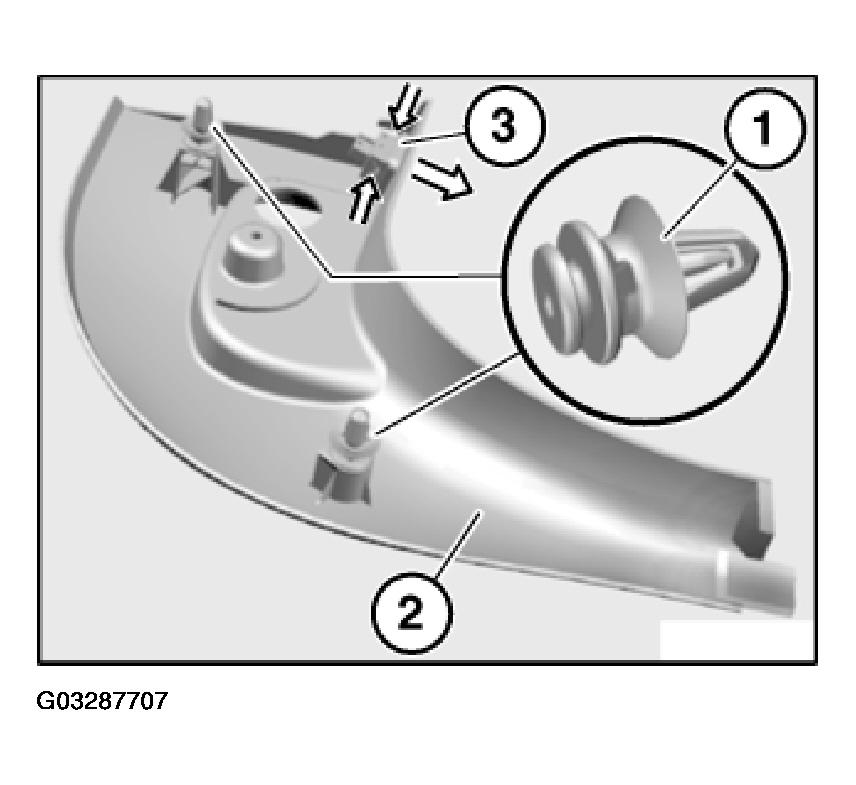

If necessary, lever out clips (1) remaining in bore.

If necessary, replace faulty clips (1).

Place footwell side trim panel on A-pillar on left (2) preinstalled with clips (1) on associated bores and clip into place.

Fig 3: Placing Footwell Side Trim Panel On A-Pillar On Left

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Press catches and remove switch for unlocking rear lid (3).
