51 44 005 Removing and installing/replacing roofliner (version without glass tilt sunroof)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work for removing roofliner is identical to:

Removing and installing/replacing roofliner (with tilt sunroof).

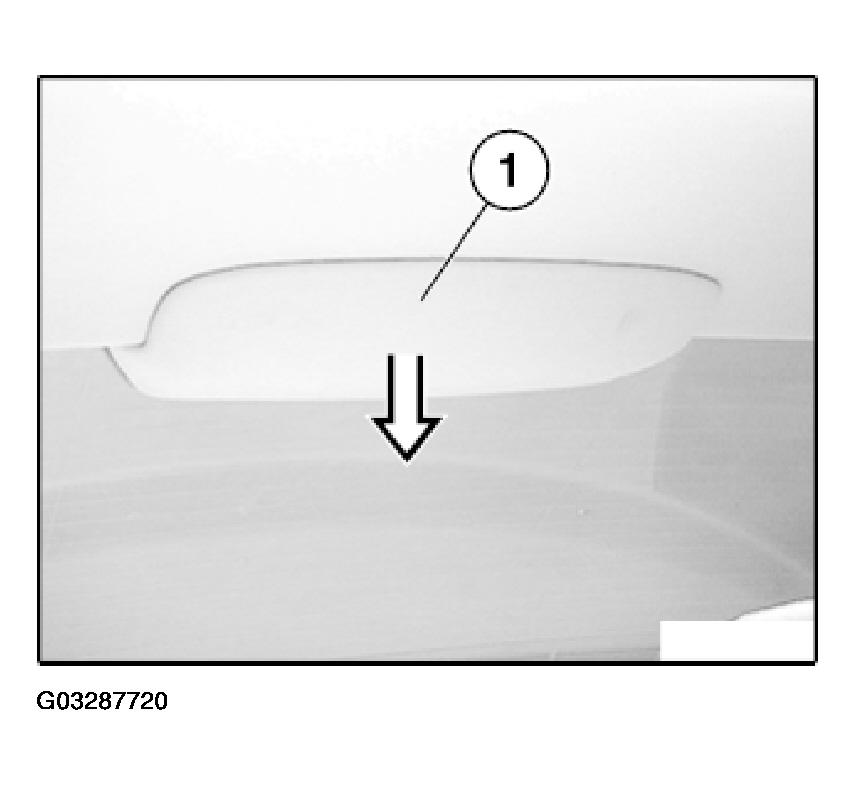

Unclip split trim (1) towards bottom and detach towards front.

Fig 1: Removing Split Trim

G03287720

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

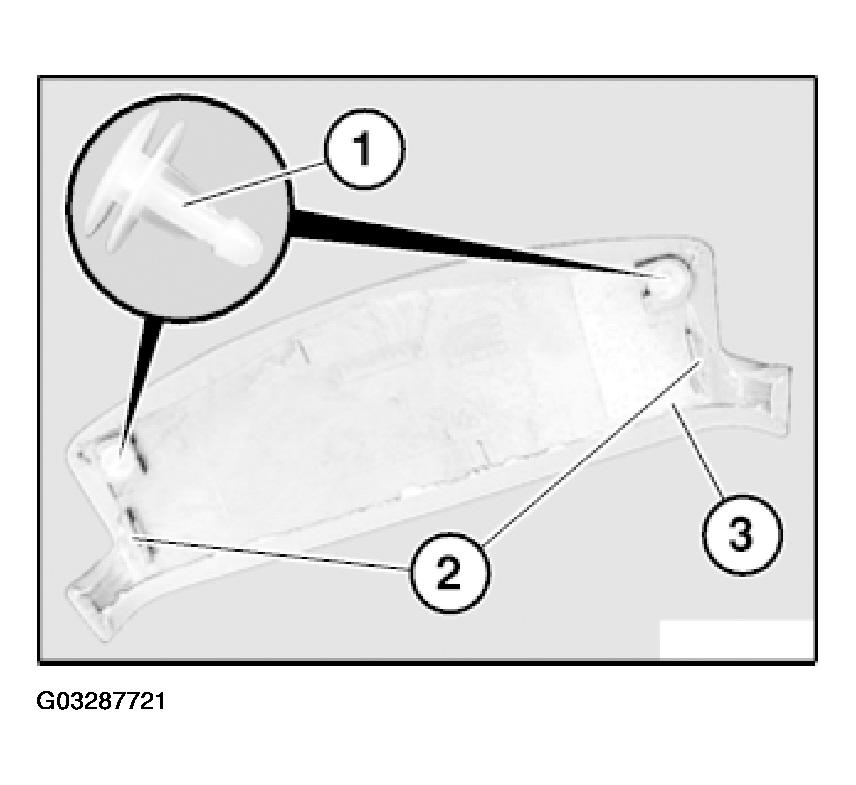

If necessary, replace faulty clips (1).

Catches (2) on trim (3) must not be damaged.

Fig 2: Identifying Clips And Catches On Trim

G03287721

Courtesy of BMW OF NORTH AMERICA, INC.

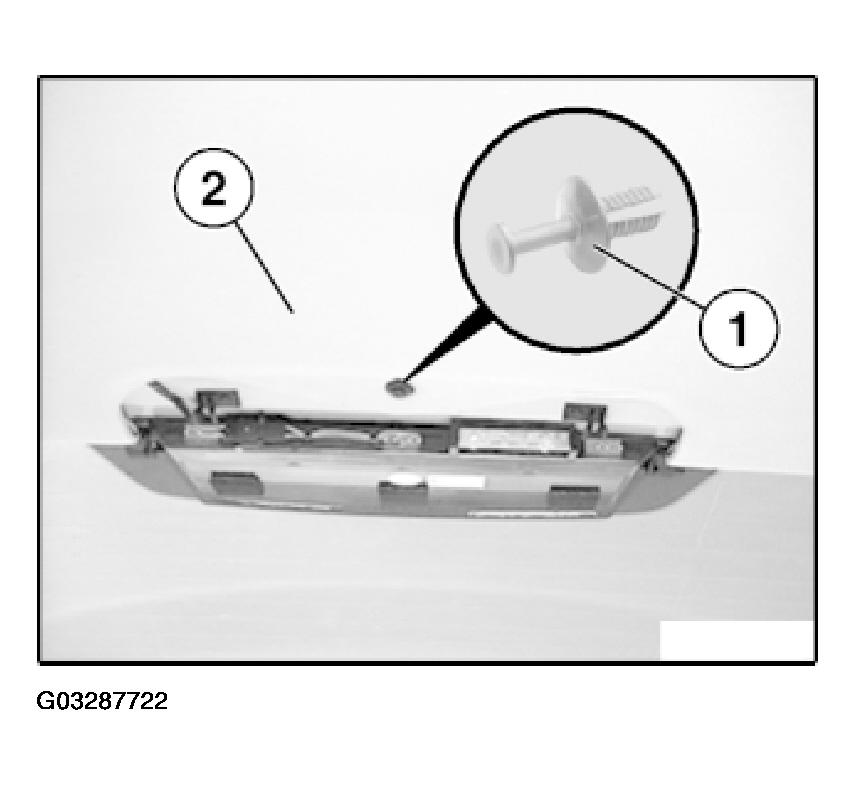

Release expander rivet (1) at rear of headliner (2).

Fig 3: Releasing Expander Rivet At Rear Of Headliner

G03287722

Courtesy of BMW OF NORTH AMERICA, INC.

Move both front seat backrests as far back as possible.
Pull off mucket on front doors and side windows at rear.

IMPORTANT: The following tasks must be carried out with a second person assisting: Support headliner at front.

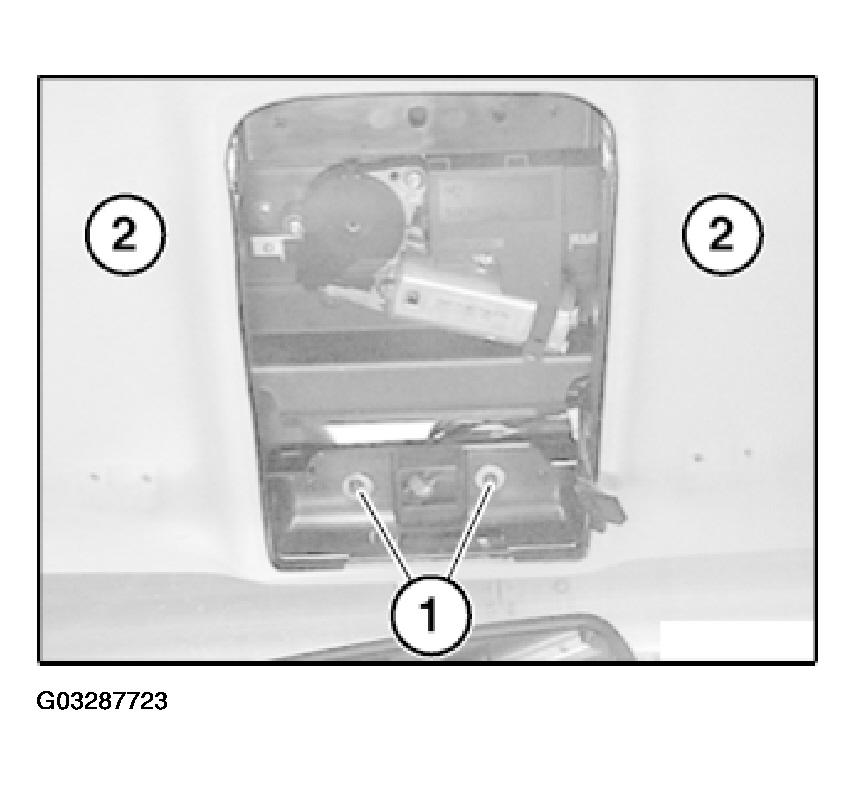

Release screws (1) under bracket on headliner (2).

Fig 4: Releasing Screws Under Bracket On Headliner

G03287723

Courtesy of BMW OF NORTH AMERICA, INC.

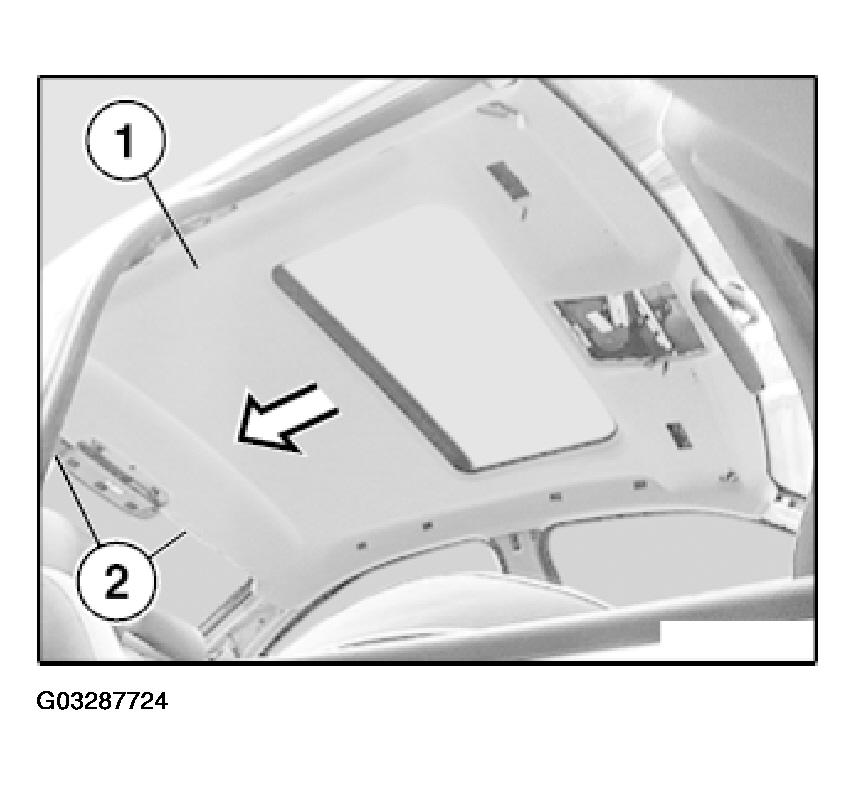

Press roofliner (1) towards rear out of metal lugs (2).

Fig 5: Pressing Roofliner (1) Towards Rear Out Of Metal Lugs (2)

G03287724

Courtesy of BMW OF NORTH AMERICA, INC.

Move roofliner (1) downwards, turn carefully and remove through door opening.
