51 12 158 Removing and installing/replacing baseplate for number/license plate (US)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper trim, refer to 51 12 157 REPLACING REAR BUMPER TRIM .

Release screws (1) and remove number/license plate baseplate.

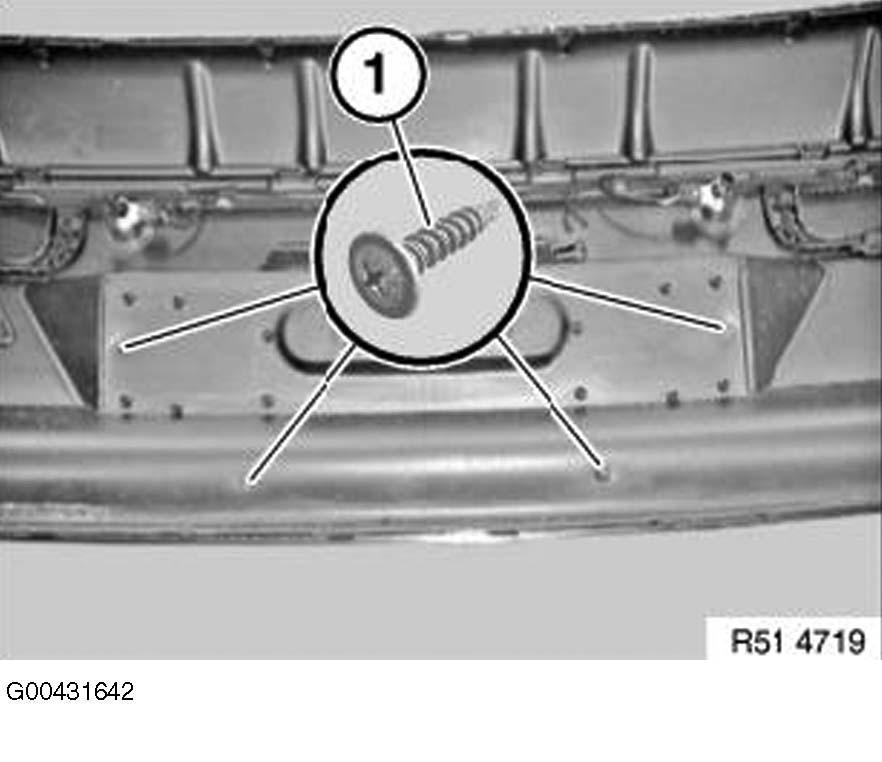

Fig 1: Releasing Screws (1) And Removing Number/License Plate Baseplate

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove impact absorber (1).

If necessary, replace faulty metal nuts (2).

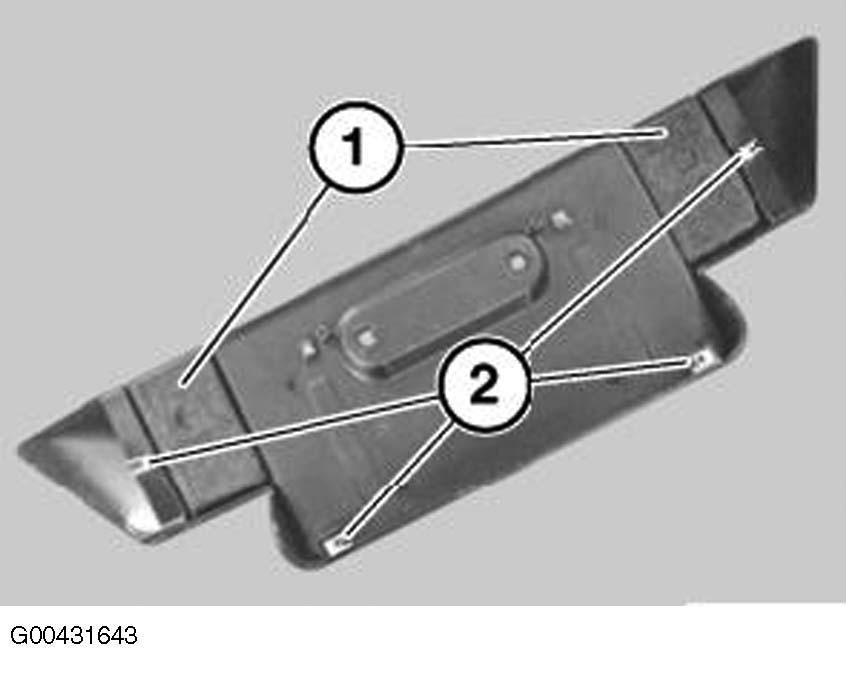

Fig 2: Identifying Impact Absorber And Metal Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
