51 12 050 Removing and installing/replacing carrier for rear bumper trim

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper trim, refer to 51 12 156 REMOVING AND INSTALLING REAR BUMPER TRIM .

Unscrew nuts (1).

Remove carrier (2) straight towards rear.

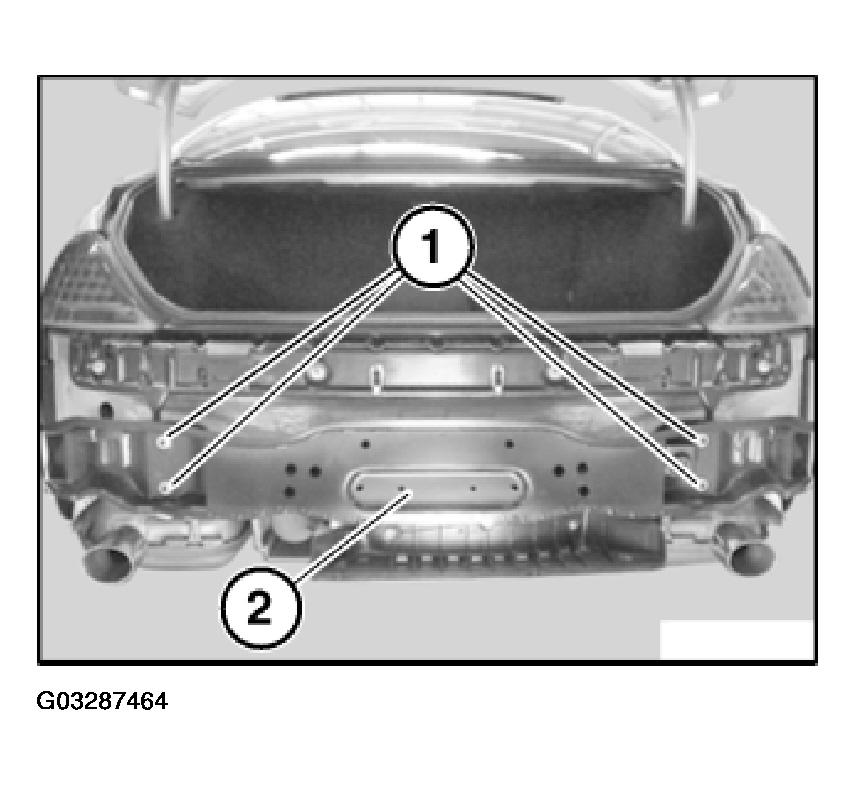

Fig 1: Removing Rear Bumper Trim Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, refer to 51 12 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 645CI .
