51 49 000 Removing and installing or replacing trim for rear lid

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open trunk lid.

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Version with manual rear lid unlocking:

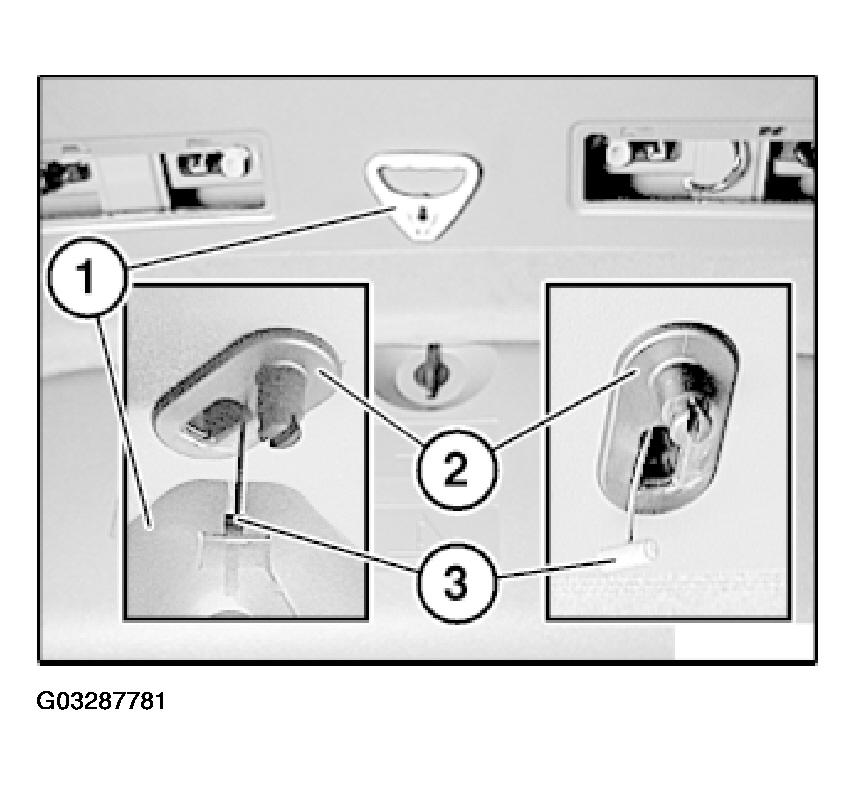

Detach handle (1) from clip (2).

Disconnect Bowden cable (3) from handle (1).

Installation:

Guide Bowden cable (3) through clip (2) and connect correctly in handle (1).

Fig 1: Detaching Handle From Clip

Courtesy of BMW OF NORTH AMERICA, INC.

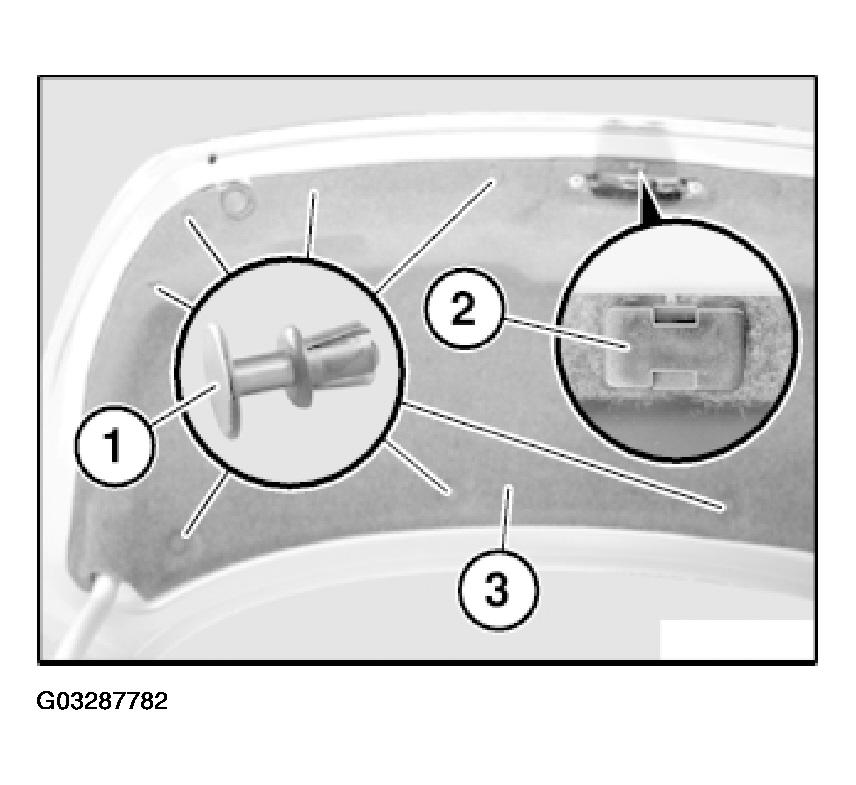

Release expansion rivets (1) and clip (2).

Remove trim (3).

Fig 2: Identifying Expansion Rivets And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace damaged clips (1 and 2).
