51 46 050 Removing and installing/replacing top trim on rear apron

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove luggage compartment floor trim (luggage compartment mat).

Release protective caps (1) and screws underneath.

Lever out expander rivets (2).

Lever out trim (3) inwards/upwards.

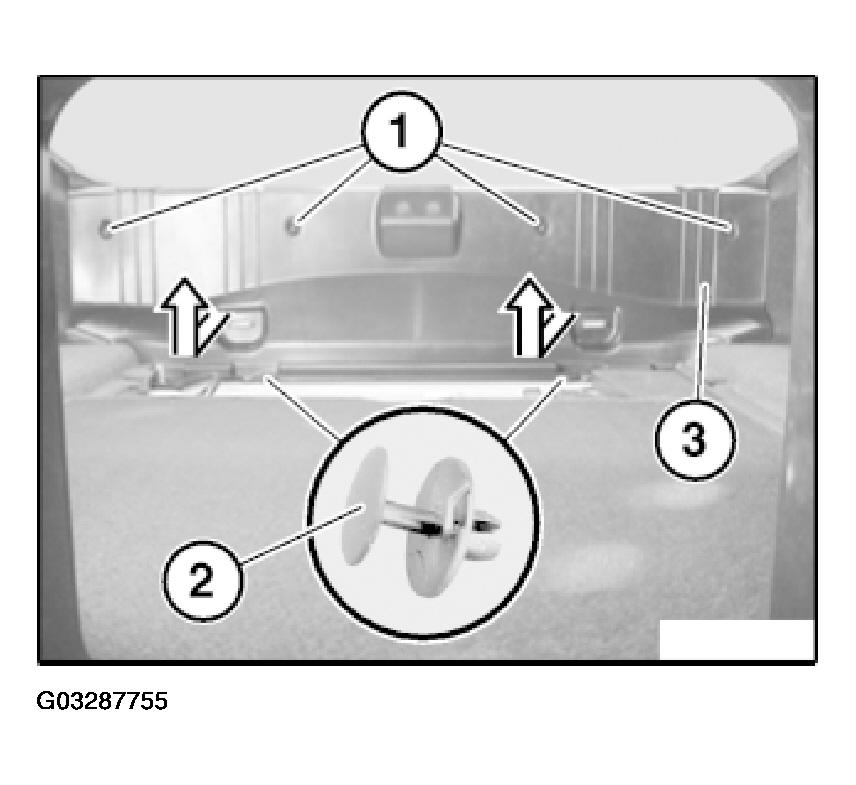

Fig 1: Removing Top Trim On Rear Apron

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace damaged protective caps (1) and expander rivets (2).

Make sure rear lid seal is correctly seated.

Installation:

Guides (1) of trim (2) must not be damaged.

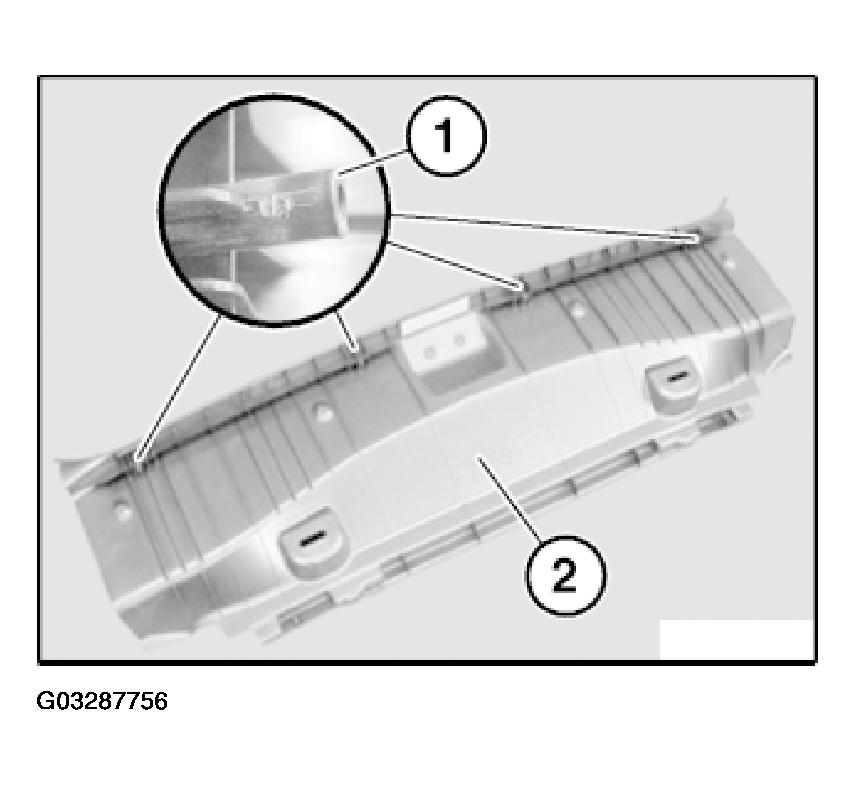

Fig 2: Identifying Guides On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
