51 16 366 Removing and installing right glovebox with housing (without active knee protection)
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim for instrument panel, bottom right

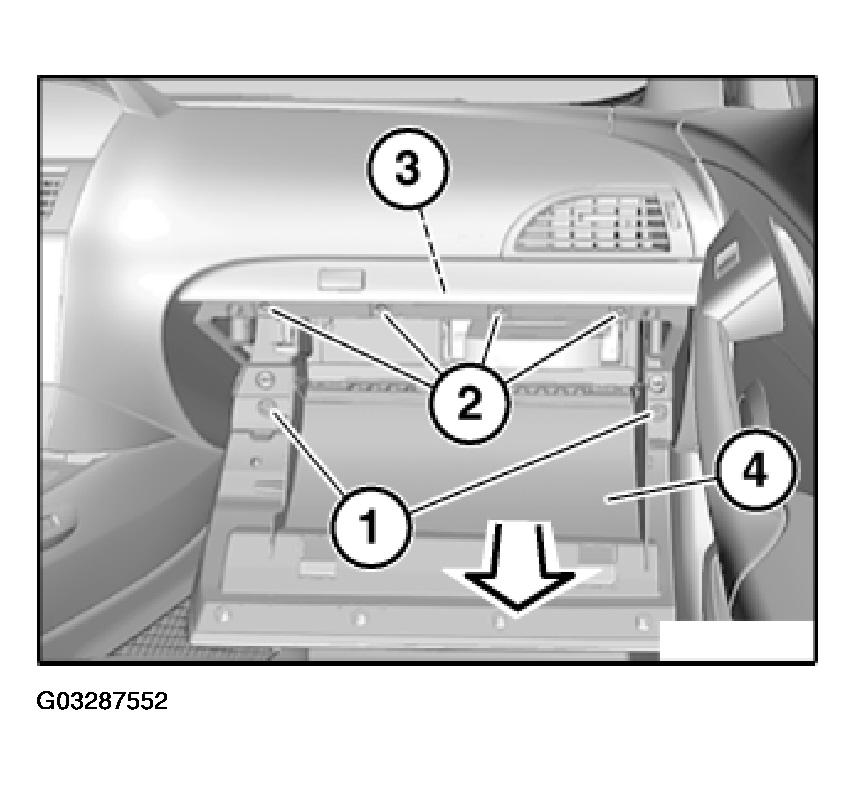

Release screws (1).
Release screws (2) and pull back right glovebox with housing (4).
Installation:
Make sure right glovebox with housing (4) is correctly seated in associated mountings.
Disconnect associated Bowden cable (3).
Unlock associated plug connections, disconnect and remove right glovebox with housing (4).
