51 16 245 Removing and installing/replacing lock cylinder for storage box

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove storage compartment

Disconnect connector (1).

Disconnect Bowden cable (2).

Release screws (3) and remove lock mechanism (4).

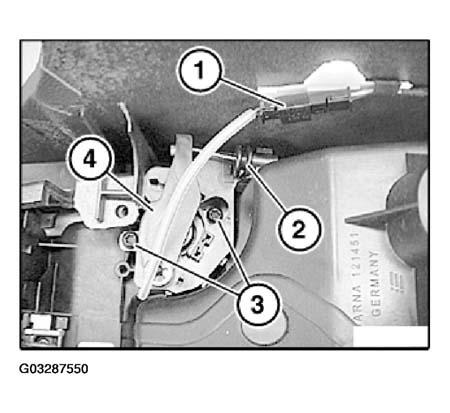

Fig 1: Removing Lock Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Ignition key must be inserted in lock cylinder otherwise coding of lock cylinder may fall out. Proceed with extreme care when releasing catches (2). Catches (2) must not break off.

Carefully release catches (2) and pull out lock (1) with ignition key.

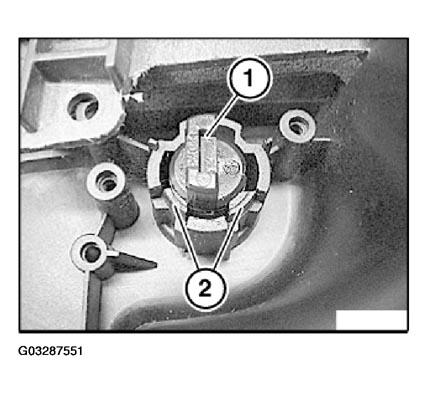

Fig 2: Identifying Catches And Lock

Courtesy of BMW OF NORTH AMERICA, INC.
