51 16 212 Removing and installing trim for center console
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove middle trim for instrument panel
- Remove finisher for preselector lever

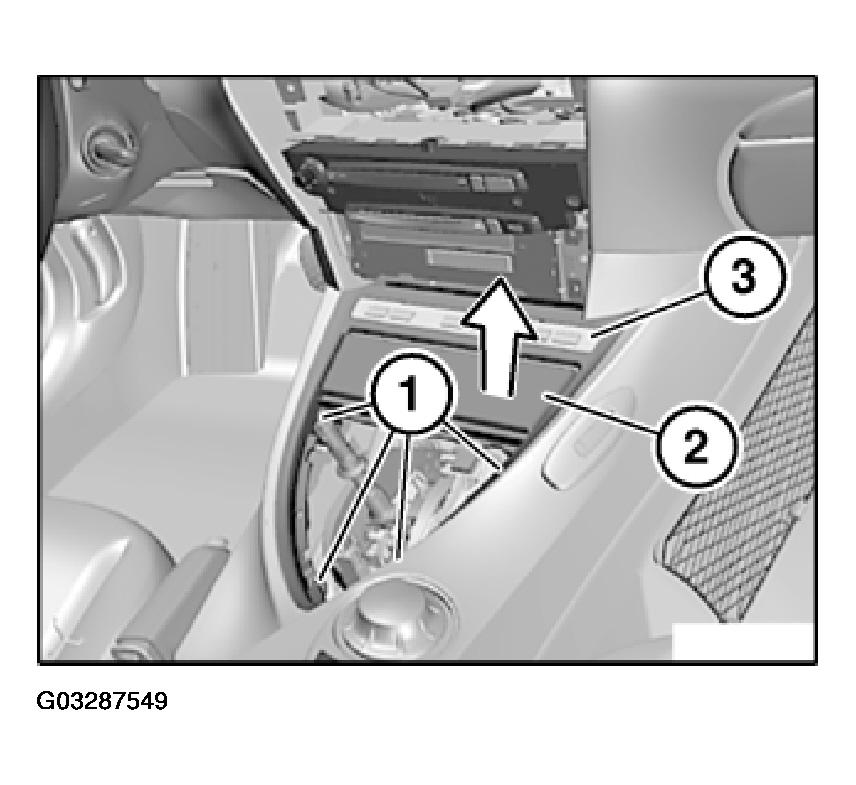

Release screws (1).
Feed out trim for storage tray (2) with center console switch cluster (3) in direction of arrow.
Unlock and disconnect associated plug connections, remove trim for storage tray (2) with center console switch cluster (3).
