51 16 210 Removing and installing/replacing trim for preselector lever (gearshift lever)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63) .

00 9 341

Necessary preliminary tasks:

Apply parking brake
Version with automatic transmission: Move selector lever into N position
Version with manual transmission: Engage neutral

NOTE: Removing the trim for the preselector lever or gearshift lever is virtually identical. The illustrations show the removal of the trim for the preselector lever in versions with automatic transmissions.

IMPORTANT: Do not shear off turning lock of selector lever knob (1).
Therefore do not twist selector lever knob (1) when removing.

Pull off selector lever knob (1) with a forceful jerk.

Press sides of selector lever cover (2) together and feed out towards top.

Unclip trim for preselector lever (4) with special tool 00 9 341 from mounting points (3).

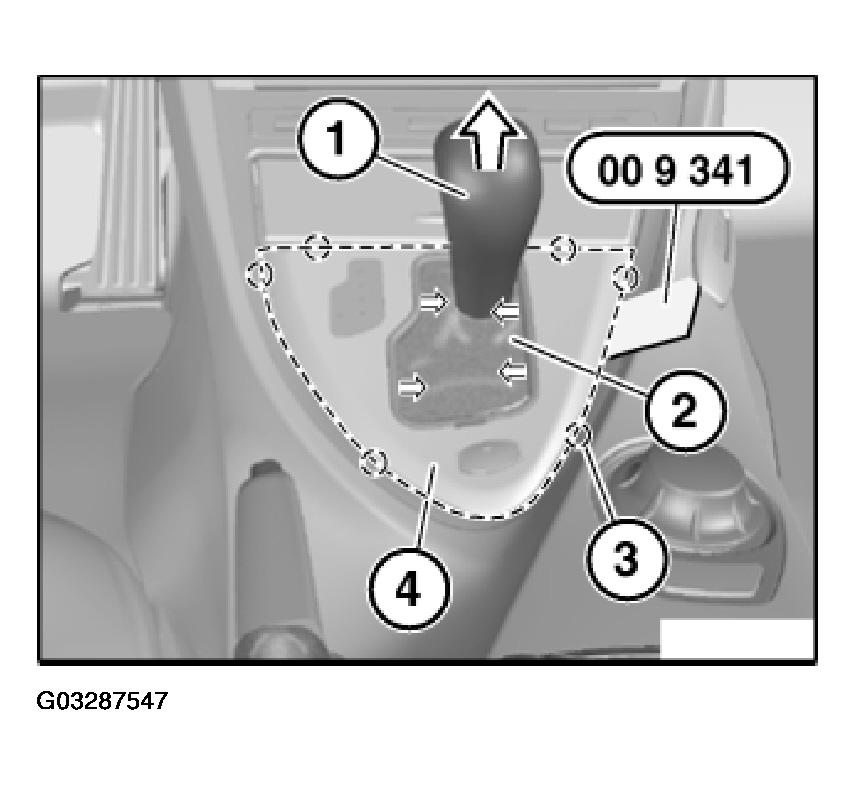

Fig 1: Identifying Preselector Lever Knob

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect associated plug connections and remove trim for preselector lever (4) towards top.

Installation:

Make sure retainers (1) are correctly seated in appropriate mounts of trim for preselector lever (2).

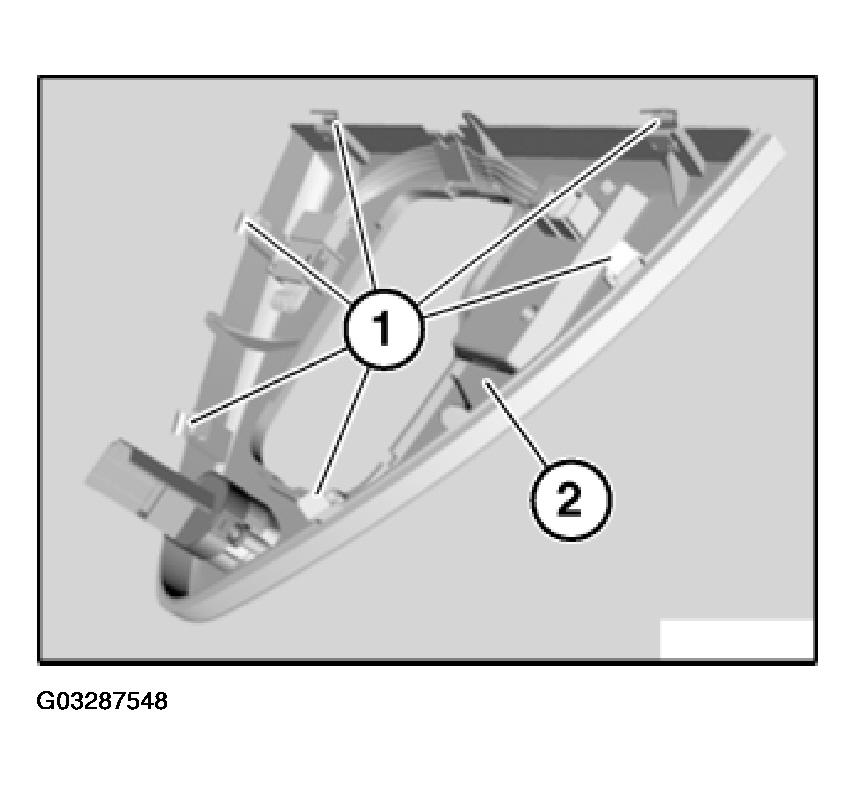

Fig 2: Identifying Correct Seating Of Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove driving dynamics switch.
