51 16 204 Removing and installing/replacing rear cup holder

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Fold rear center armrest back.

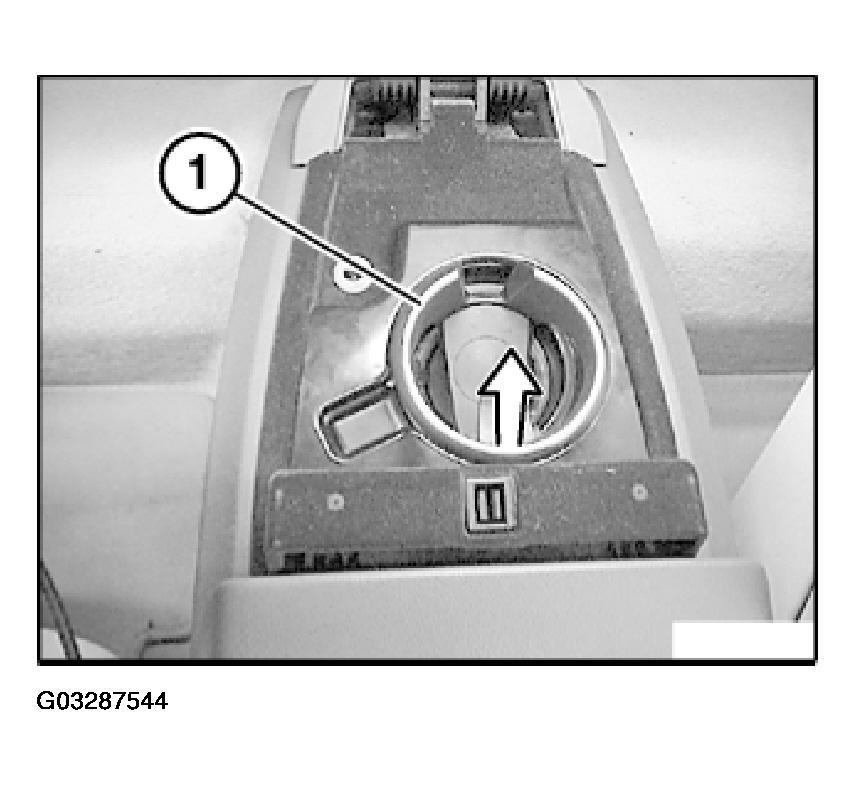

Lift out cup holder (1).

Fig 1: Removing Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.

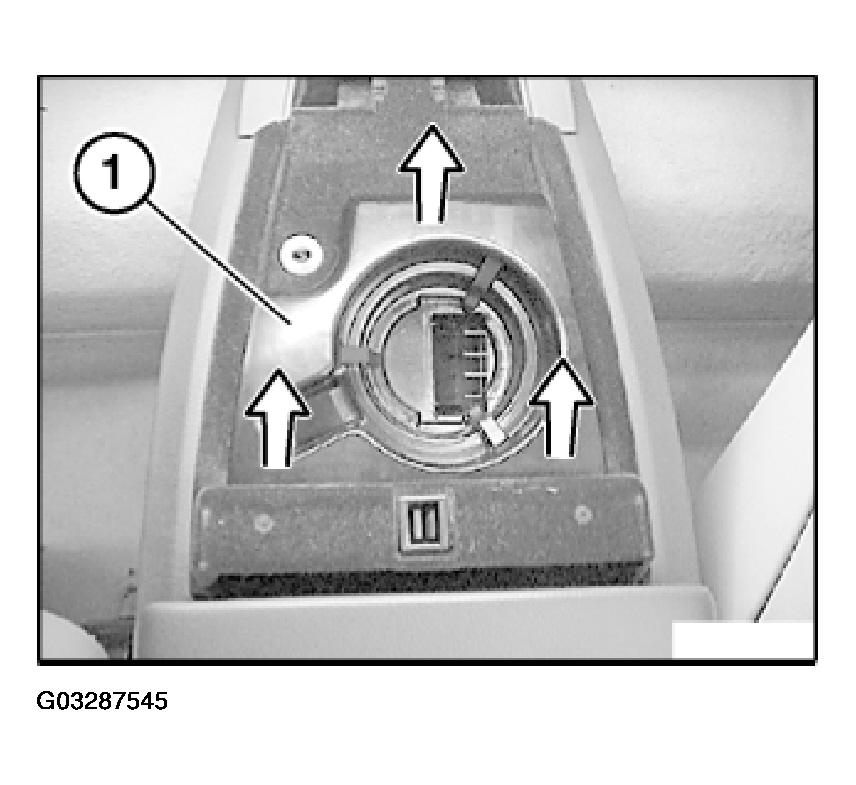

Unclip holder (1) towards top.

Fig 2: Unclipping Holder Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

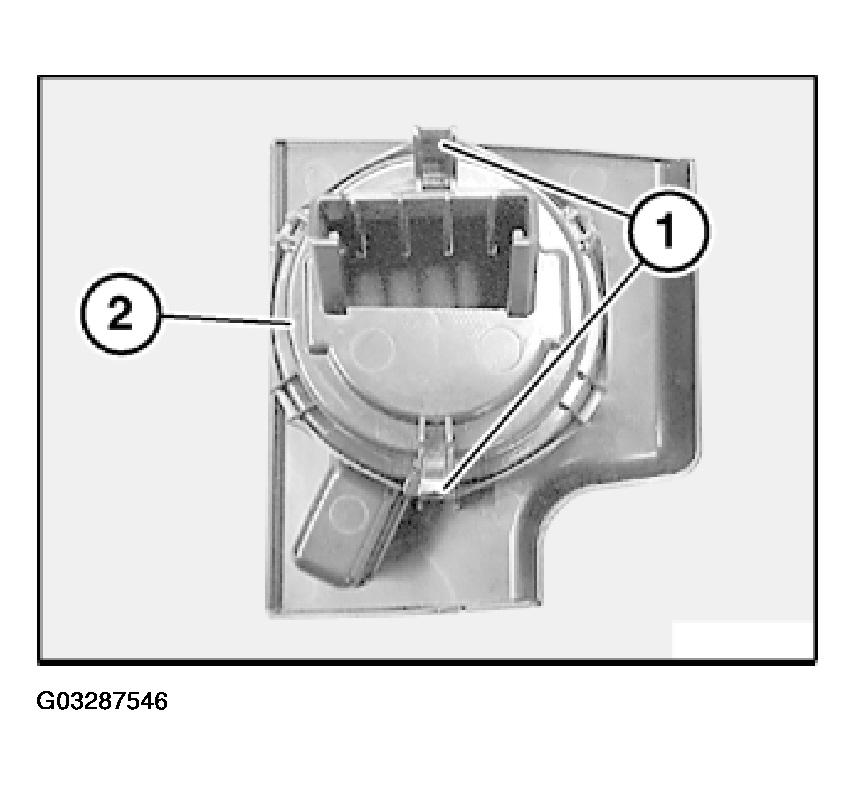

Catches (1) on holder (2) must not be damaged.

Fig 3: Identifying Catches On Holder

Courtesy of BMW OF NORTH AMERICA, INC.
