51 16 196 Removing and installing/replacing (both) covers for centre armrest
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Open cover.
Release screws (1).
Remove cover (2).
NOTE:
Illustration shows the front cover, remove the rear cover in the same way.

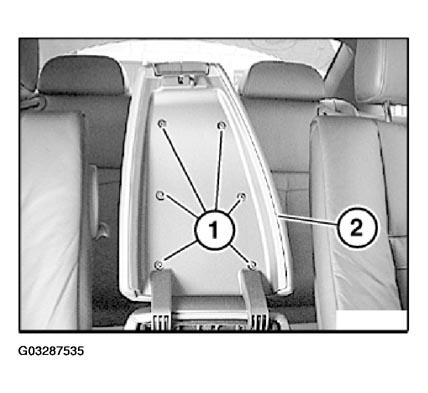

Fig 1: Removing And Installing/Replacing Covers For Centre Armrest
