51 16 080 Removing and installing or replacing sun visor and left or right counter support

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Lever sun visor (1) out of counter support.

Release screws (2) and remove sun visor towards bottom.

Version with interior light package:

If necessary, release screws (2).

Detach sun visor (1) towards bottom slightly, disconnect plug connection and remove sun visor (1).

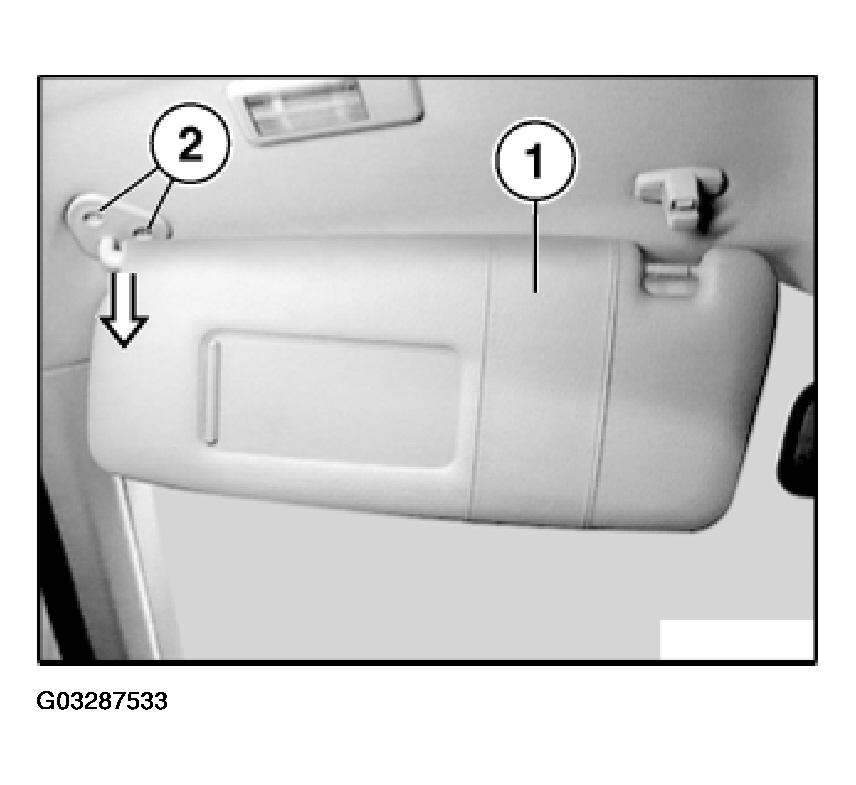

Fig 1: Removing Sun Visor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check on lighting.

Lever out trims (1).

Release screws (2) and remove counter-support (3).

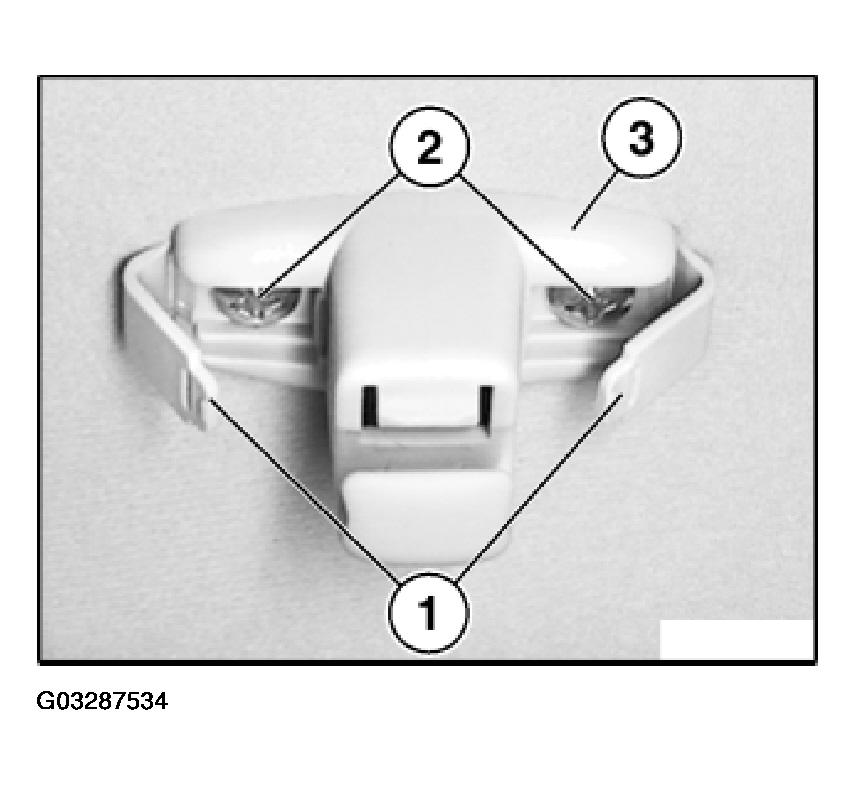

Fig 2: Removing Counter-Support

Courtesy of BMW OF NORTH AMERICA, INC.
