51 16 045 Removing and installing/replacing retaining ring on left or right door mirror

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63) .

64 1 020

Necessary preliminary tasks:

Remove housing on door mirror
Remove drive for electrically adjustable door mirror

NOTE: Version with door mirror light: Disconnect plug connection (1).

Release screws (2) and remove complete retaining ring on door mirror (3) from carrier (4).

Fig 1: Removing Complete Retaining Ring On Door Mirror From Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Version with door mirror light:

Ensure correct cable routing.

Unclip retaining ring on door mirror (1) with special tool 64 1 020 all round and remove from retaining plate (2).

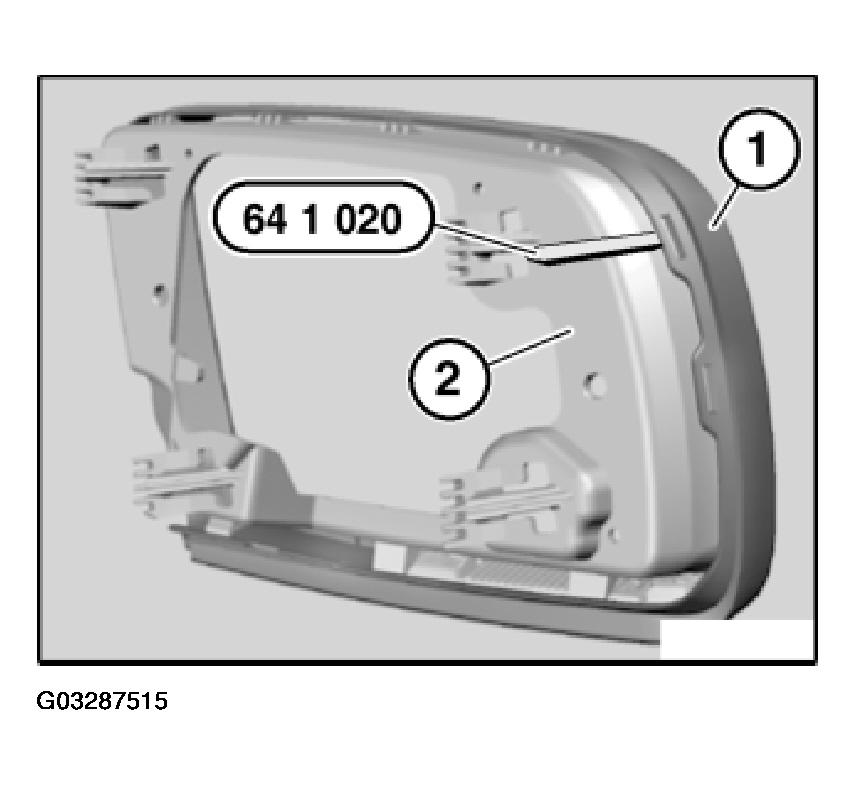

Fig 2: Unclipping Retaining Ring On Door Mirror With Special Tool 64 1 020

Courtesy of BMW OF NORTH AMERICA, INC.
