51 16 040 Removing and installing/replacing housing on left or right door mirror

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove mirror glass

NOTE: Housing on door mirror (2) is secured without play by four multitooth catches (1) on retaining ring (3). Secure housing on door mirror (2) against falling out.

Unlock multitooth catches (1) with a screwdriver.

Unclip housing on door mirror (2) forwards from retaining ring (3) and remove.

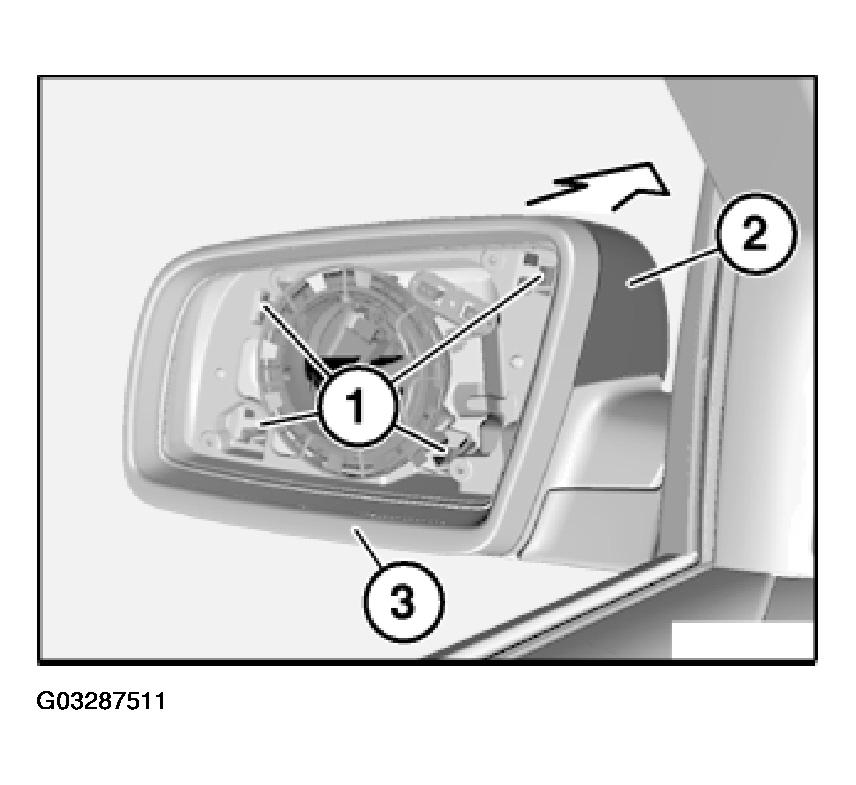

Fig 1: Installing Housing On Door Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Multitooth catches (1) and guide (2) on housing on door mirror (3) must not be damaged.

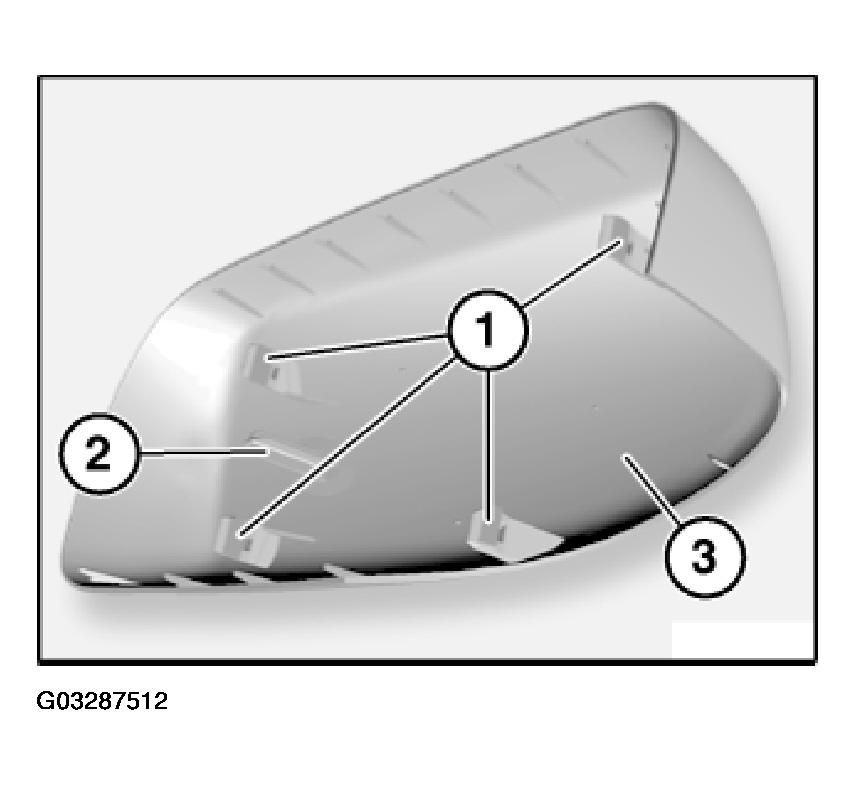

Fig 2: Identifying Multitooth Catches And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fixtures (1) on retaining plate (2) must not be damaged.

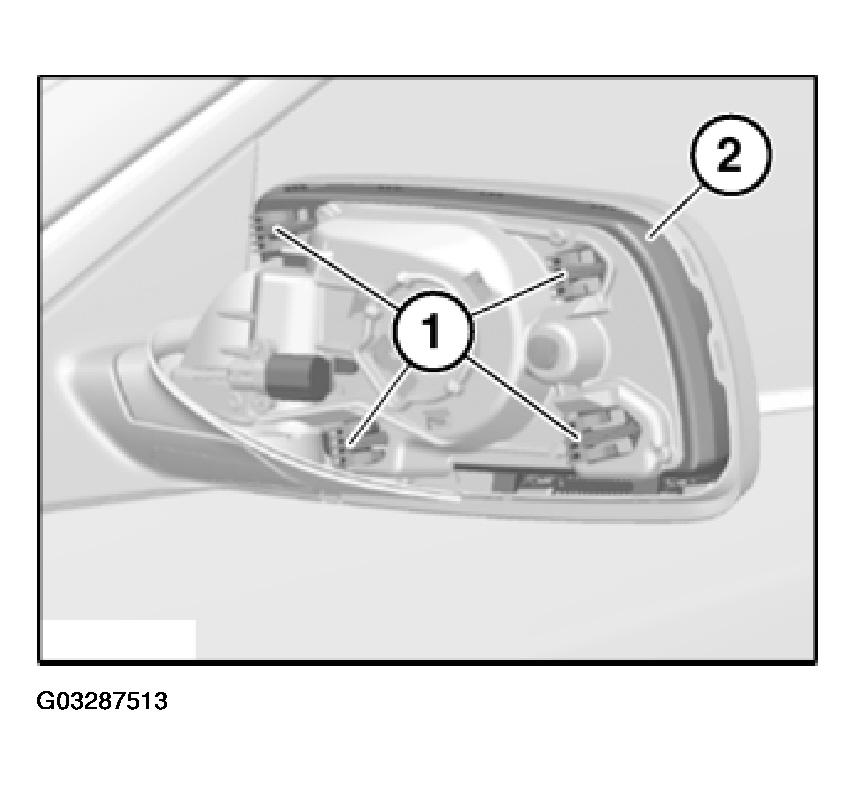

Fig 3: Identifying Fixtures On Retaining Plate

Courtesy of BMW OF NORTH AMERICA, INC.
