51 16 026 Replacing mirror glass

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63) .

00 9 317

WARNING: Move mirror glass with hand carefully and slowly. If mirror glass is damaged: Wear protective goggles and cut-proof gloves.

IMPORTANT: Bring door mirror to room temperature to prevent catches from breaking off.

Press mirror glass (1) on side vehicle by hand to full extent.

NOTE: Secure mirror glass (1) against falling out. Unclip mirror glass (1) from outer side with special tool 00 9 317 all round. Unlock and disconnect associated plug connections, remove mirror glass (1).

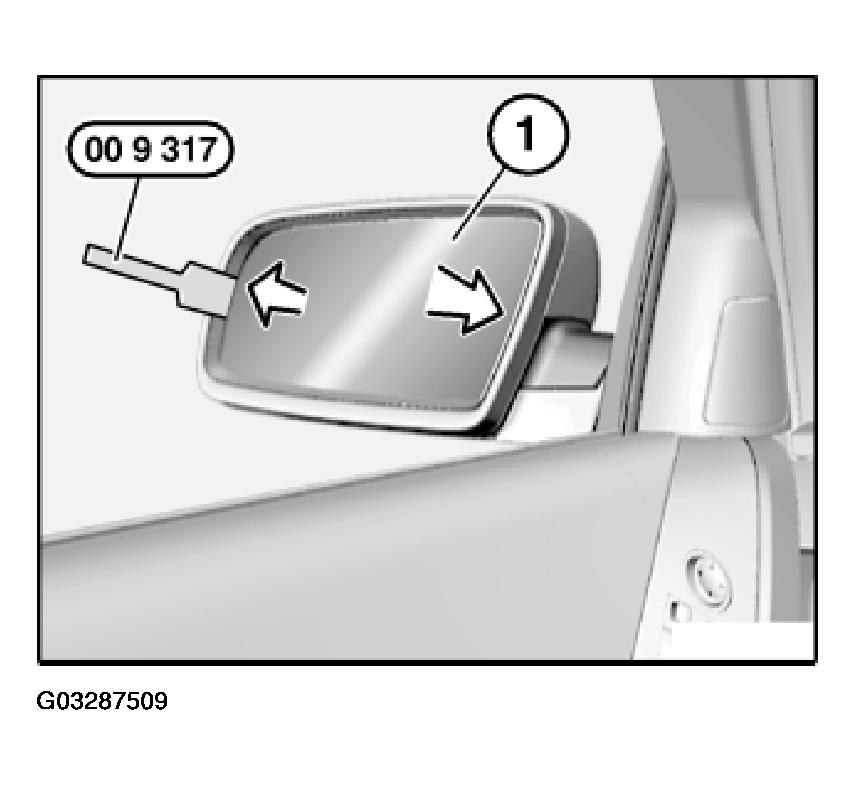

Fig 1: Unclipping Mirror Glass From Outer Side With Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining lugs (1) must not be damaged.

Fit mirror glass (2) with retaining lugs (1) flush on mirror adjusting drive and clip into place.

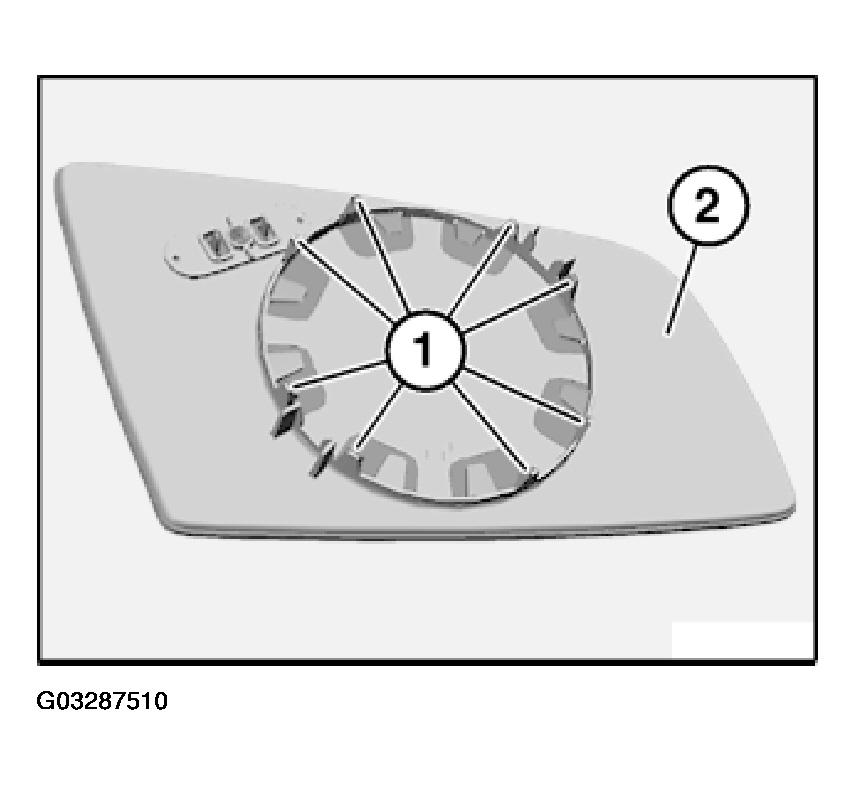

Fig 2: Fitting Mirror Glass With Retaining Lugs Flush On Mirror Adjusting Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure correct locking.

Make sure mirror adjusting drive functions correctly.
