51 16 000 Removing and installing/replacing mirror on left or right front door

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim panel
Remove speaker (tweeter)
Partially remove sound insulation in front door

Release cable ties (1).

Lever out clip (2) and disconnect plug connection (3).

Feed wiring harness (4) out of cable duct (5).

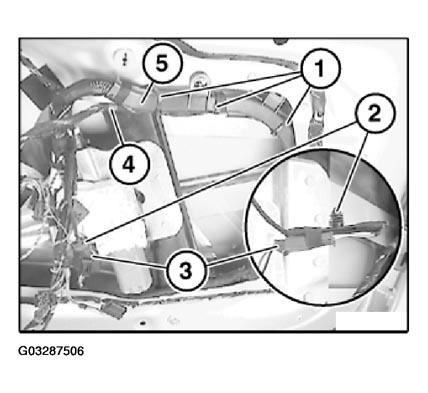

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clip (2).

Fold rubber guide (1) to one side.

Release screws (2) and feed out mirror (3) with wiring harness.

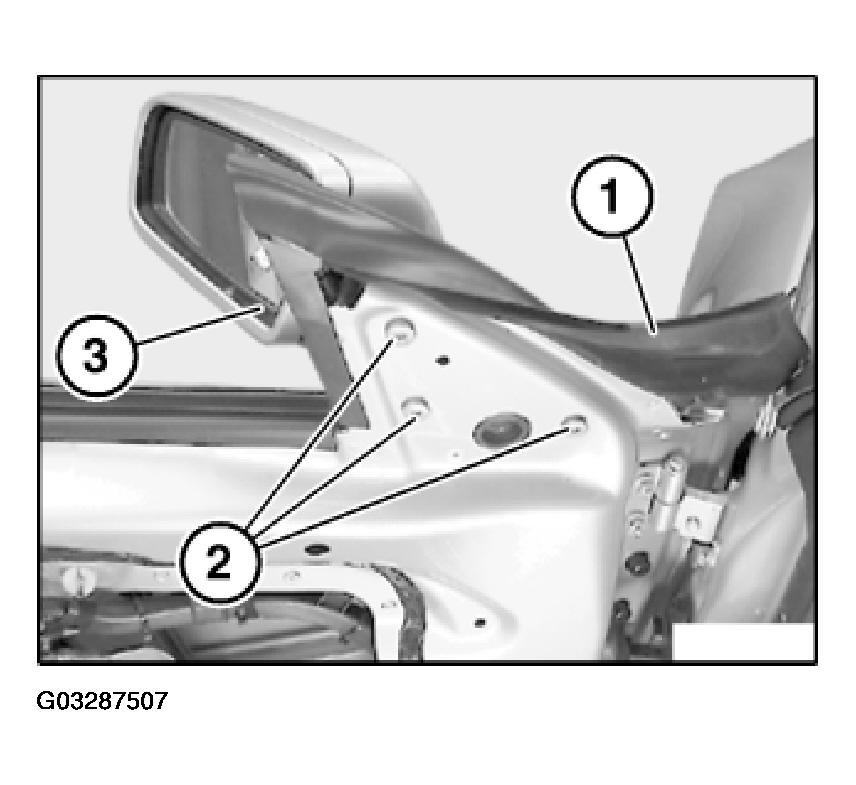

Fig 2: Removing Screws And Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, refer to 51 16 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 645CI .

Replacement:

Due to the self-tapping screws, the tightening torque of the new mirror is increased by 2 Nm.

Tightening torque, refer to 51 16 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 645CI .

Installation:

Sound insulation (1) on mirror (2) must not be damaged.

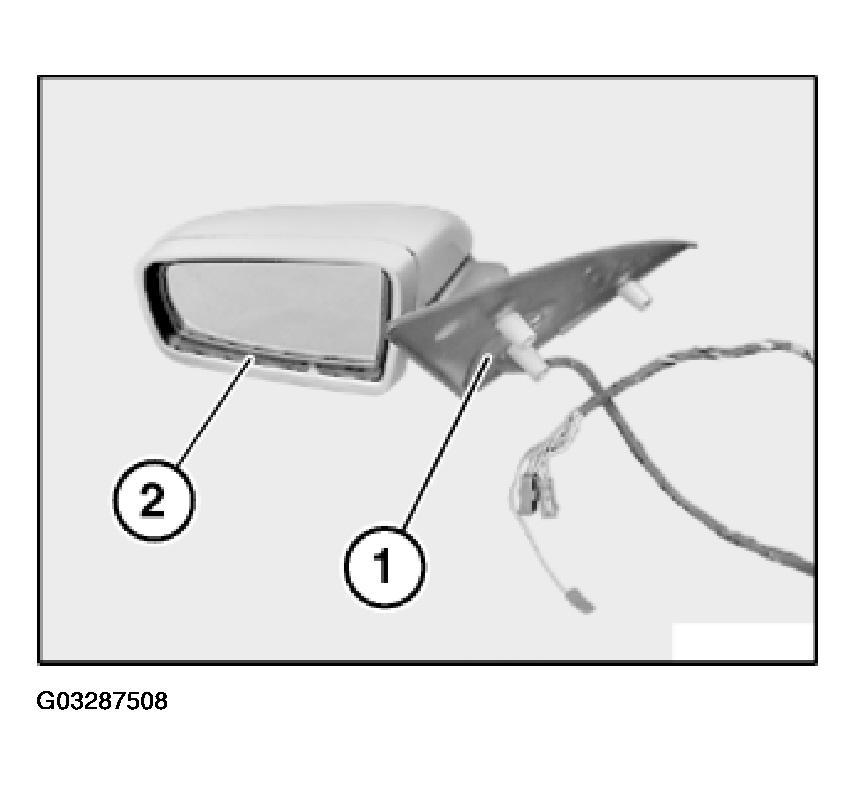

Fig 3: Identifying Sound Insulation On Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Check function.
