51 71 447 Removing and installing or replacing panel for cover on left or right side member

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove entrance cover strip
Detach wheel arch cover from front/rear side member cover

Release expansion rivets (1).

Fig 1: Releasing Expansion Rivets

G03287791

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

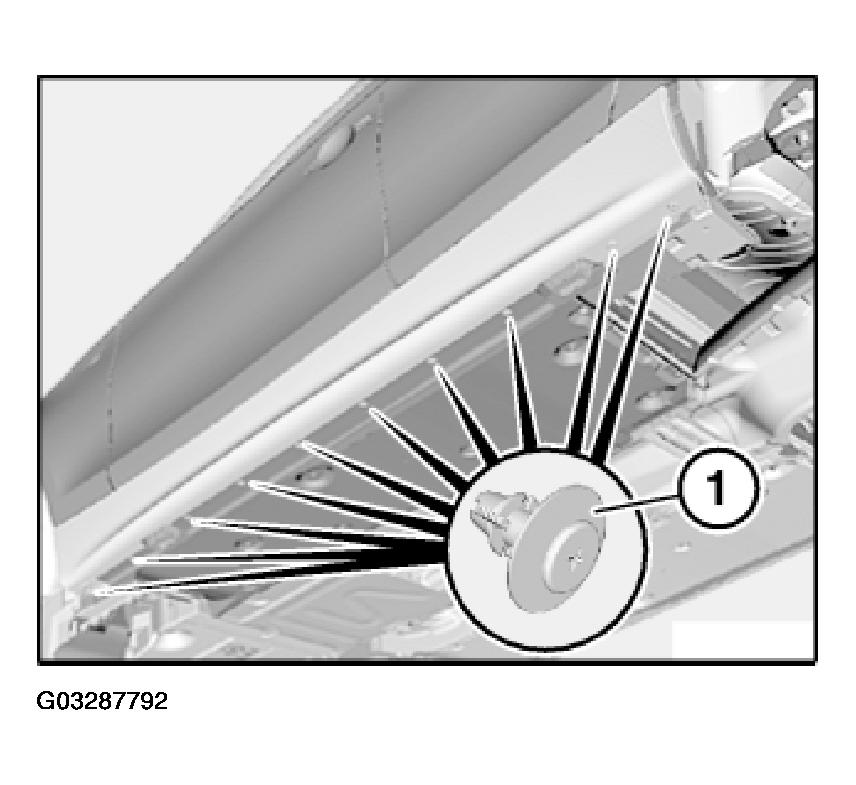

Fig 2: Releasing Screws

G03287792

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip panel (1) at front.

Unclip panel (1) at rear from holders (2) and remove in direction of arrow.

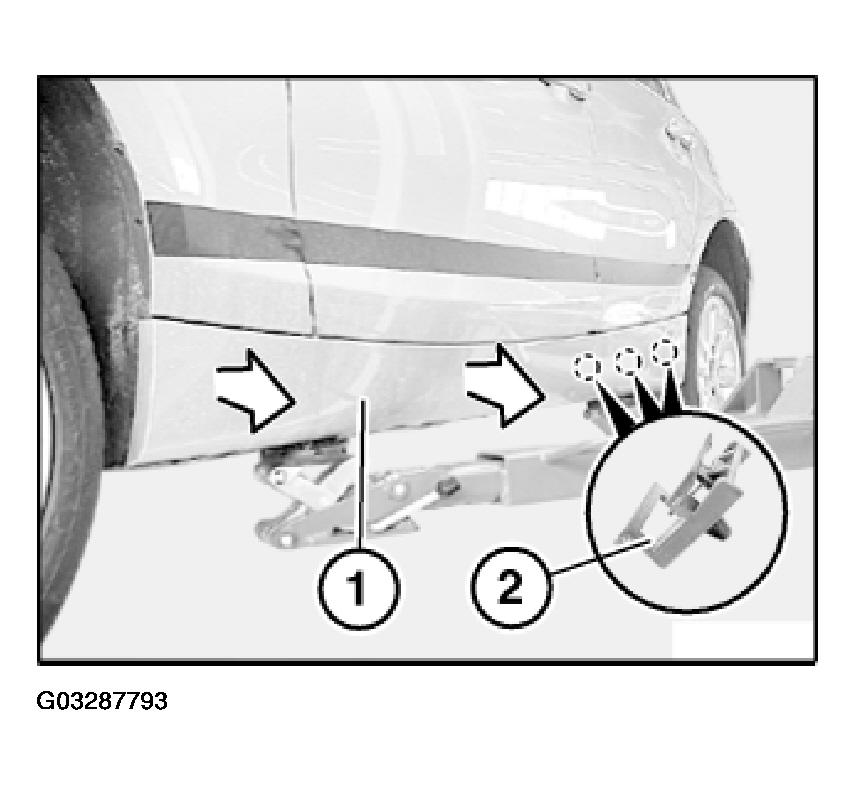

Fig 3: Removing Panel At Rear From Holders

G03287793

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on holder (2) must not be damaged.

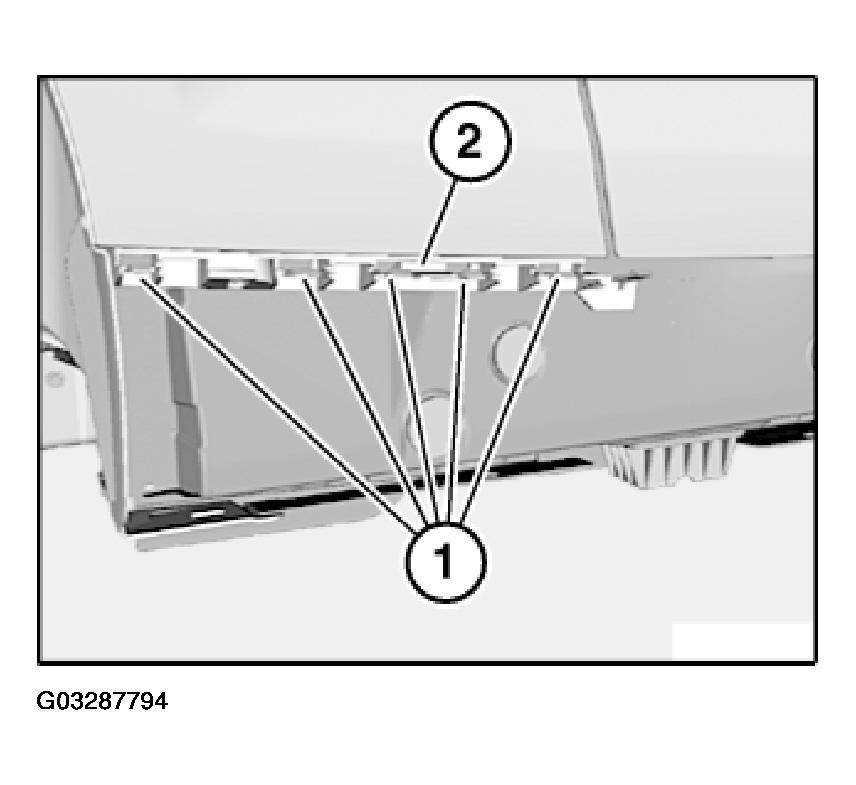

Fig 4: Identifying Catches On Holder

G03287794

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, detach holders (1) from body and fit on panel (2).

If necessary, replace faulty holders (1).

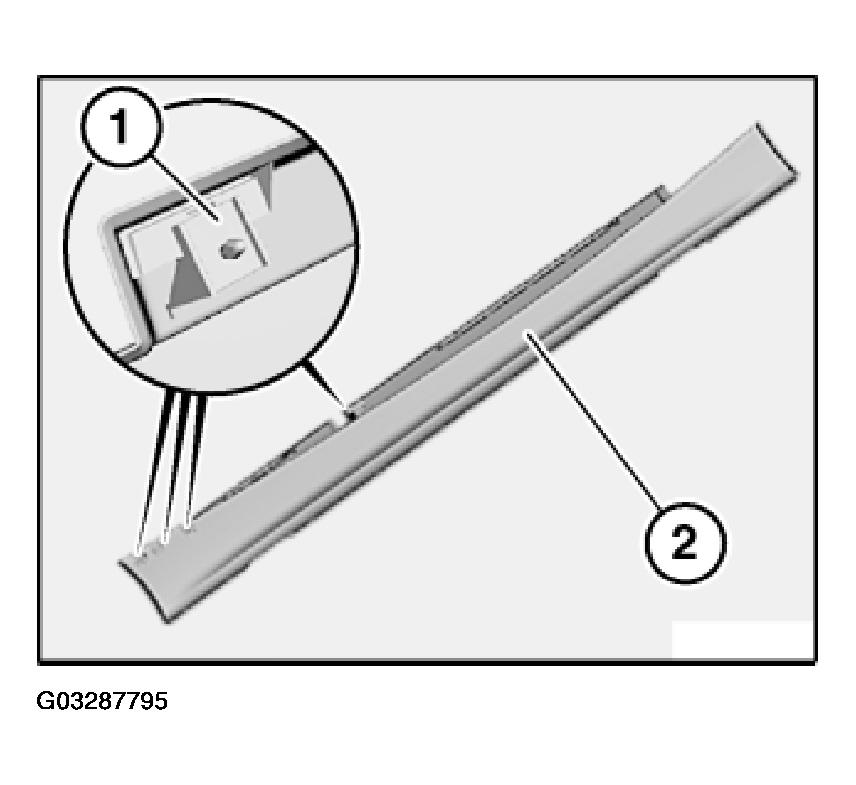

Fig 5: Detaching Holders From Body And Fit On Panel

G03287795

Courtesy of BMW OF NORTH AMERICA, INC.
