51 23 211 Removing and installing/replacing cable for front engine hood locks (to passenger compartment)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect cable for hood/bonnet locks
Remove lower section of microfilter housing
Remove trim panel for pedal assembly
Remove footwell side trim panel on A-pillar

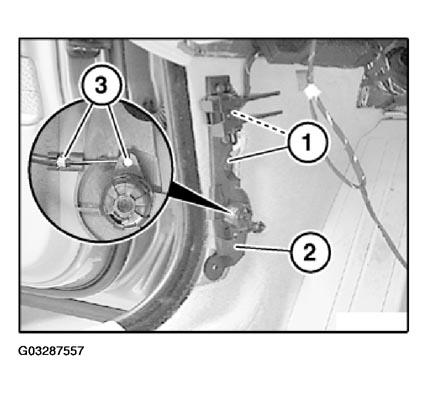

Release screws (1).

Remove fixture (2) and feed out Bowden cable (3).

Fig 1: Removing Fixture And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

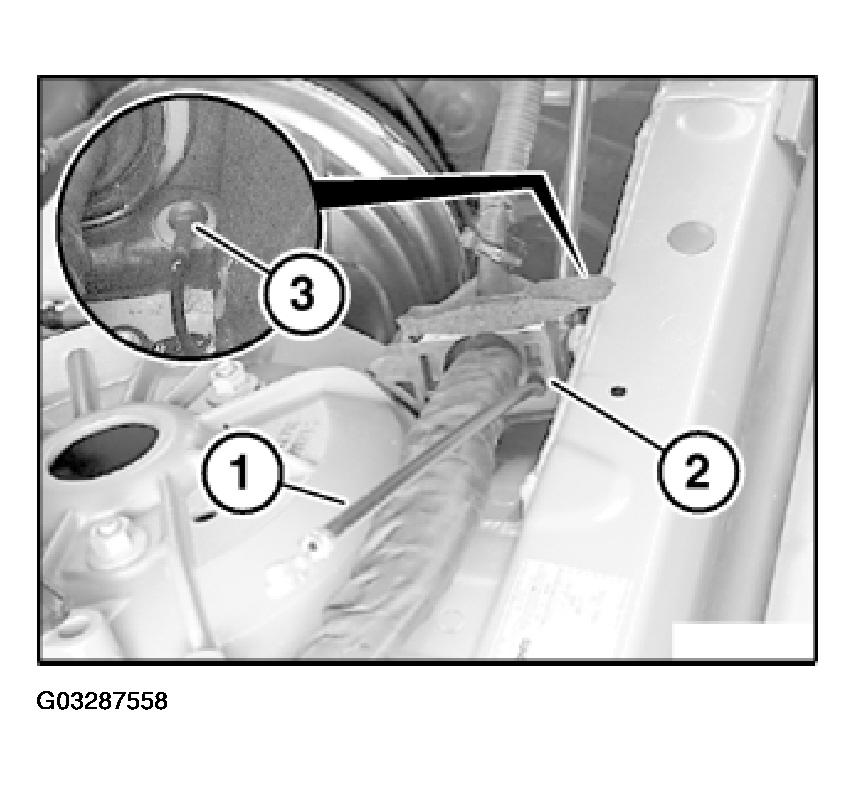

Feed Bowden cable (1) out of grommet (2).

Carefully feed Bowden cable (1) with grommet (3) out of vehicle interior.

Fig 2: Identifying Bowden Cable With Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Make sure grommets (2 and 3) are correctly seated (water ingress).

Installation:

Lay Bowden cable (1) without kinks.
