51 45 380 Removing and installing (replacing) right decorative strip on instrument panel

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63)

00 9 317

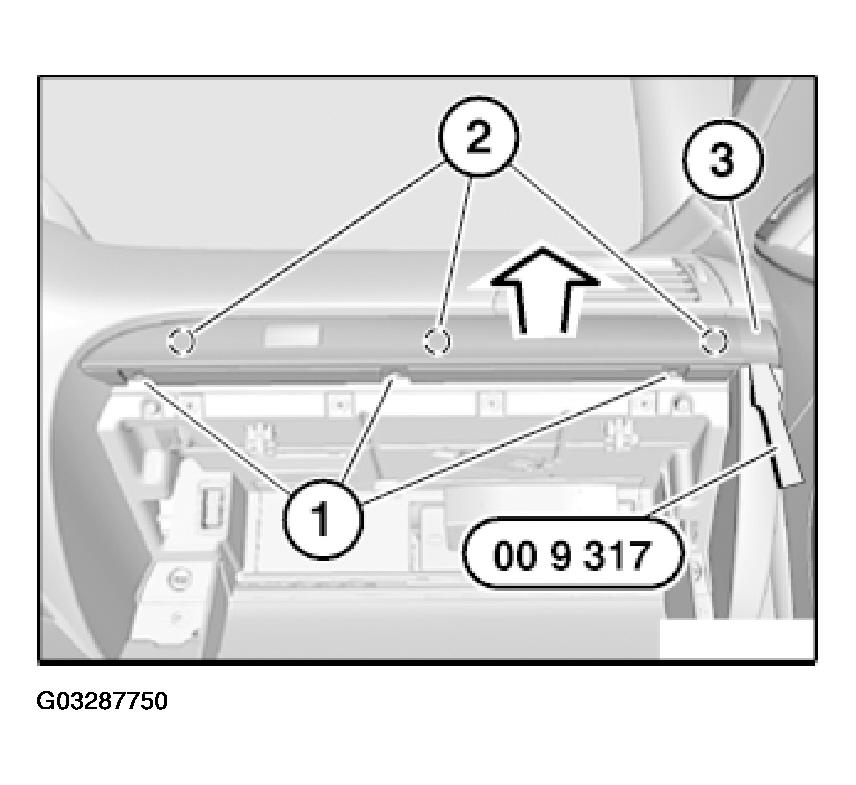

Release screws (1).

Partially fit special tool 00 9 317 as illustrated.

Lever out right decorative strip on instrument panel (3) at retaining points (2) and pull back.

Fig 1: Removing Right Decorative Strip On Instrument Panel At Retaining Points

Courtesy of BMW OF NORTH AMERICA, INC.

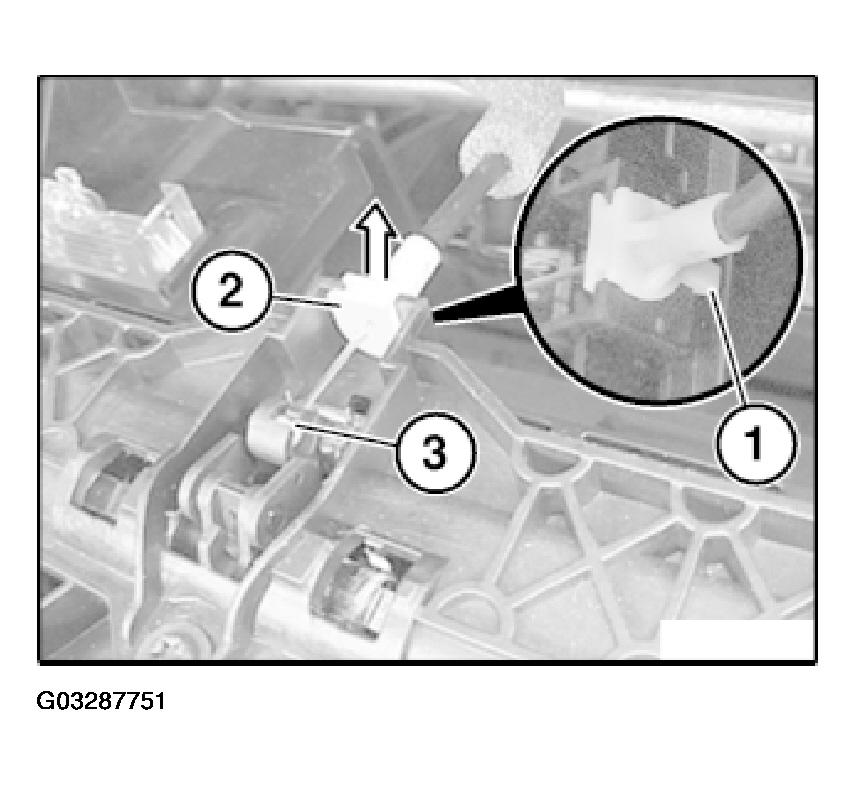

Version up to MY 2004:

Lever out lock (1) towards front and detach Bowden cable (2).

Version from MY 2005:

Lever out lock (1) towards rear and detach Bowden cable (2) upwards.

Disengage Bowden cable nipple (3) and remove right decorative strip on instrument panel.

Fig 2: Removing Right Decorative Strip On Instrument Panel (Version Up To My 2004)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) must be seated in associated mountings.

If necessary, remove clips (1) remaining on right decorative strip on instrument panel.

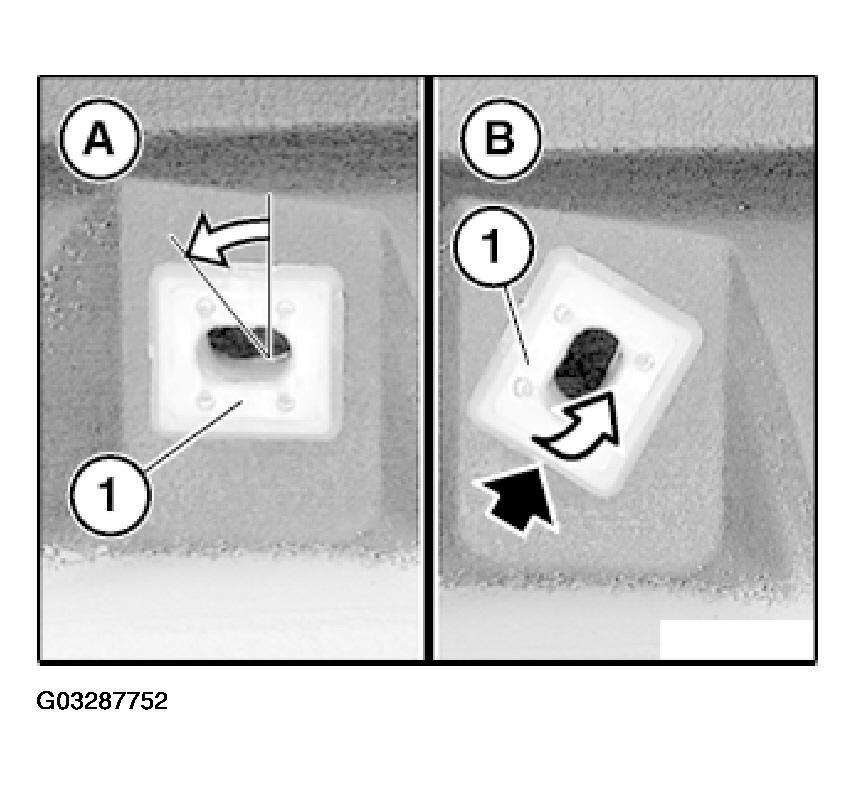

Replace damaged clips (1):

Turn clip (1) with screwdriver to left by approx. 60°.
Lever out clip (1) from below.

Fig 3: Turning And Removing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

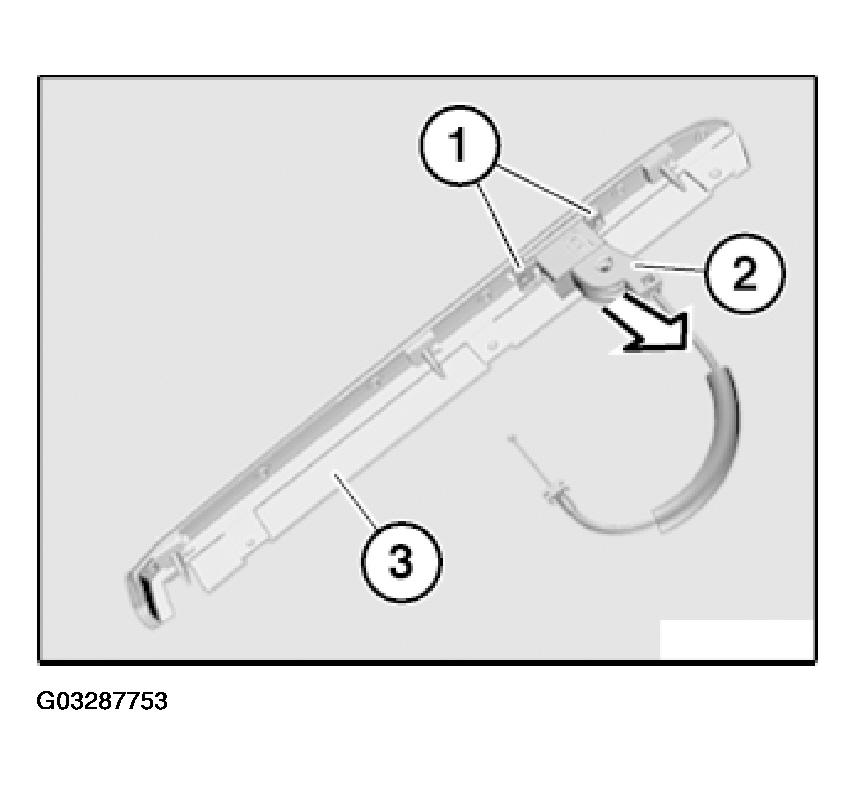

Replacement:

Release screws (1).

Remove glovebox button (2) from right decorative strip on instrument panel (3).

Fig 4: Removing Glovebox Button From Right Decorative Strip On Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.
