51 45 370 Removing and installing decorative strip on left instrument panel

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63)

64 1 020

Partially fit special tool 64 1 020 as illustrated.

Lever out decorative strip on left instrument panel (1) at top and remove.

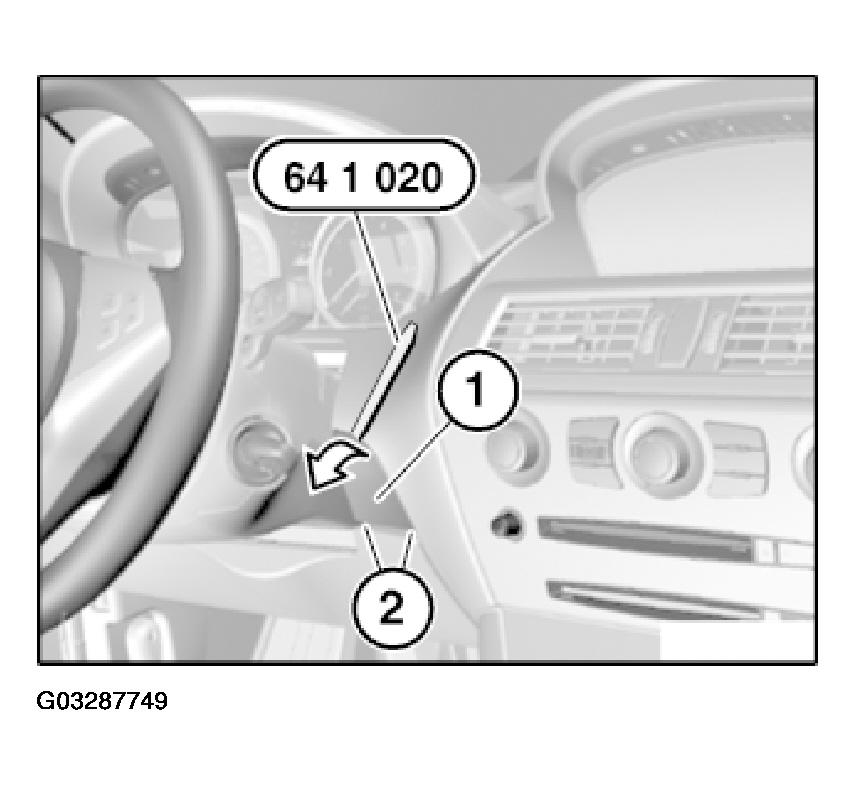

Fig 1: Removing And Installing Decorative Strip On Left Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach decorative strip to left instrument panel (1) at lower guides (2) first.
