51 45 310 Removing and installing (replacing) center trim for instrument panel

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63)

00 9 341

Necessary preliminary tasks:

Remove center fresh air grill

Release screws (1).

Partially fit special tool 00 9 341 as illustrated, refer to Fig 1.

Unclip center trim for instrument panel (3) at retaining points (2) all round and pull back.

Unlock and disconnect associated plug connections, remove center trim for instrument panel (3).

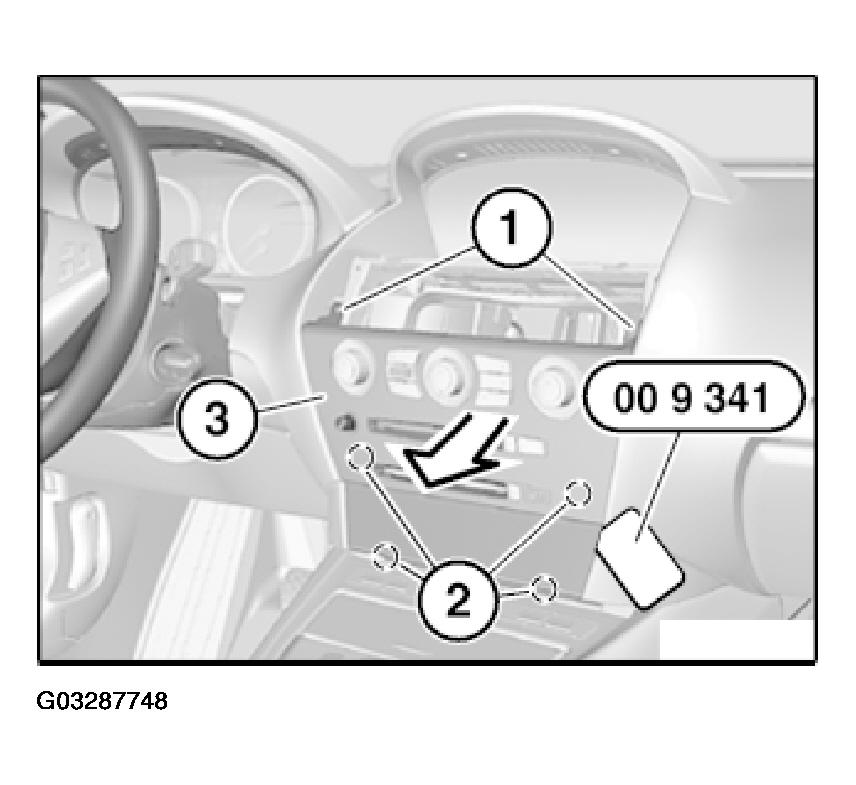

Fig 1: Removing Center Trim For Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove control panel for heater - A/C system.
